Disk I/O timings: SCSI vs. IDE vs. USB2.0

The following table summarized a number of experiments copying a 1.7GB directory/file between 3 differents disks: SCSI, IDE and USB2.0. The desktop is a Dell Precision 610, a Xeon 500 MHz with 128MB memory, with the following 3 disks attached (see output dmesg below)
  1. /dev/sda: (8GB SCSI):  QUANTUM  ATLAS 10K 9WLS  on a Adaptec aic7890/91 Ultra2 SCSI adapter
  2. /dev/hda: (60GB IDE):  MAXTOR 6L060J3 on an "old" on-board UDMA/33 IDE controller, as well as a UDMA/66 controller
  3. /dev/sdb: (60GB IDE):  QUANTUM  FIREBALLP AS on a USB2.0 SiiG PCI card controller
The two IDE disks are actually identical MAXTOR 60GB drives, baught a few months apart, but one labeled as Maxtor, the other as Quantum. The experiments were done on a system with X running, but no other activity.

In the table below the "source" disk is the column on the left, the "destination" disk the row on top. For example the17th experiment, (17), copied a directory from hda to sda, and took 175". The measurements with hdparm of course give a nice upper limit to the throughput via that specific device.  A cache read was also performed. All 3 drives produced identical results ranging from 120-130 MB/s.

Note added in proof: a firewire card was added to the same machine, and the same drive used in the same configuration. Basically this combination gave me about 20MB/sec, instead of about 10MB/sec on USB2.0
        size=1700MB
sda (SCSI)  ext3
hda (IDE/UDM66)  ext3
sdb (USB2.0)  ext2
sda (SCSI)
hdparm:  23.0 MB/s



tar: 215"                 (1,14)




cp -a:  178"/ 161"     (12)
cp -a: 231"         (13)

cp:  157"                 (6)
cp:  98" / 76"             (2,5)
cp: 201"                (4)




hda  (IDE)

hdparm: 22.0/ 40.0 MB/s



tar:   284" / 216"         (15)


cp -a:   175"           (17)

cp -a;:   225"       (14)

cp:          89"/ 76"     (16)
cp:    264" / 186"        (3)
cp:          203"       (18)


untar:   318" / 245"     (11)

sdb (USB2.0)


hdparm: 9.5 MB/s



tar:         387"        (10)



 cp -a:    484"         (19)

cp:     181"                (8)
cp:   182"                     (9)
cp:          293"         (7)

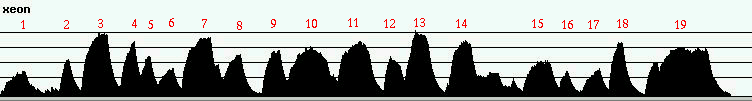

The figure below is the output of 'xload', as the above mentioned experiments were done. Lines are drown at loads of 1,2,3 and 4. Comparing for example (3) and (6) shows the clear difference that IDE (3) has on the load, where SCSI (6) keeps the load fairly small.


cpu load for various experiments



This system was outfitted with redhat 7.3, and it should be noticed that the (SiiG) PCI USB2.0 controller was nicely recognized, and correctly initialized upon booting the system. Here is the first bootlog, the one without the UDMA/66 controller.
