SUMMARY TABLE
Z_coarse order FWHM (Å) dL/dZ (Å) Zfine(5205-5375 Å) FSR (Å)
plot -2 25.71 11.3 0.3653 ~2065 - 2375 197
26.71 10.9 0.3517 ~2375 - 2885 190
plot +1 34.37 8.5 0.2751 ~1750 - 2560 152
35.37 8.3 0.2674 ~2315 - 2970 148
plot +3 41.33 7.1 0.2291 ~1650 - 2395 127
42.33 6.9 0.2237 ~2050 - 2810 124
43.33 6.8 0.2186 ~2605 - 3380 121
TABLE NOTES
  1. The Zfine values listed above in computer units apply at the optical axis for the default instrument Zfine value of 4.10 entered into the CS-100.
  2. The free spectral range (FSR) and FWHM in Z-space at ~5300 Å are 553 and 31.0, respectively. These values do not depend on plate spacing. The former is accurate to 1% or better. The latter is for an optimized parallelism; values for individual setups may be higher by ~10-20% because of the precision limits of the parallelization procedure. Accordingly, the FWHM in wavelength space is only reproducible at the 10-20% level.
  3. Fractional orders are caused by small phase shifts due to the reflective coating on the etalon mirrors.

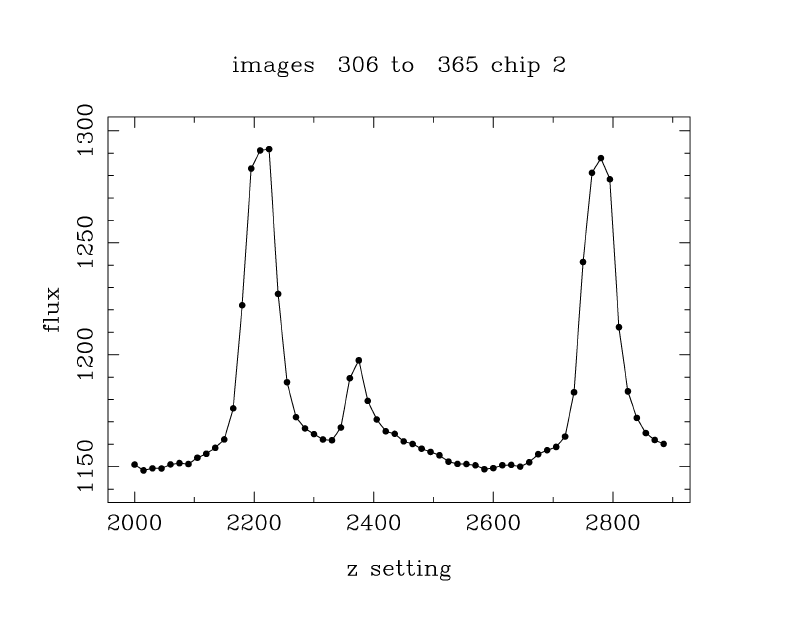

Z_coarse = -2
Z_fine = 4.10
Lamp: Neon
Wavelengths (Å); order # in [], weak lines in ():
  Ne 5330.78 [25.7]  + Ne 5341.09 [25.7]
  Ne 5193.22 [26.7] (+ Ne 5400.56 [25.7])
  Ne 5330.78 [26.7]  + Ne 5341.09 [26.7]
(Click plot for postscript copy.)

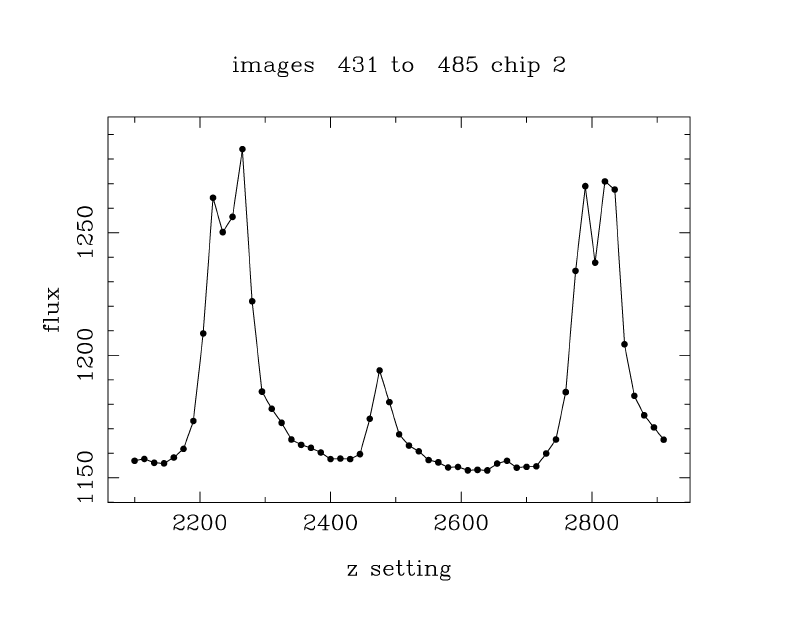

Z_coarse = +1
Z_fine = 4.10
Lamp: Neon
Wavelengths (Å); order # in [], weak lines in ():
  Ne 5330.78 [34.4] + Ne 5341.09 [34.4] (+ Ne 5355.42 [34.4] + Ne 5193.22 [35.4])
  Ne 5400.56 [34.4]
  Ne 5330.78 [35.4] + Ne 5341.09 [35.4] (+ Ne 5355.42 [35.4] + Ne 5193.22 [36.4])
(Click plot for postscript copy.)

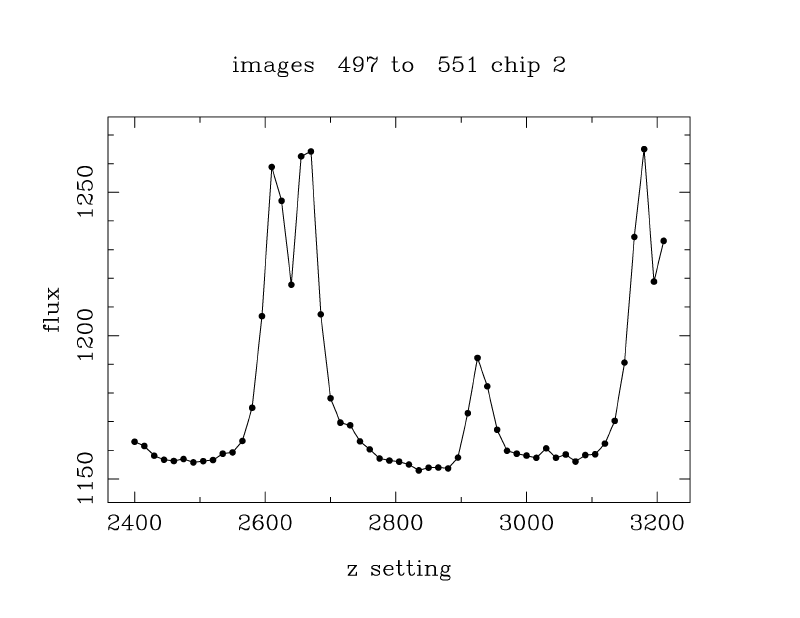

Z_coarse = +3
Z_fine = 4.10
Lamp: Neon
Lines (Å); order # in [], weak lines in ():
  Ne 5330.78 [42.3] + Ne 5341.09 [42.3] (+ Ne 5355.42 [42.3] + Ne 5193.22 [43.3])
  Ne 5400.56 [42.3]
(Click plot for postscript copy.)
