SUMMARY TABLE
Z_coarse order FWHM (Å) dL/dZ (Å) Zfine(6470-6730 Å) FSR (Å)
plot -2 20.00 11.8 0.4721 ~1640 - 2190 313.9
21.00 11.2 0.4398 ~2320 - 2900 299.6
plot +1 29.15 8.1 0.3229 ~1620 - 2430 218.6
30.15 7.8 0.3122 ~2310 - 3140 211.6
plot +3 35.13 6.6 0.2622 ~1600 - 2590 181.0
36.13 6.4 0.2549 ~2300 - 3320 176.1
TABLE NOTES
  1. The Zfine values listed above in computer units apply at the optical axis for the default instrument Zfine value of 4.10 entered into the CS-100.
  2. The free spectral range (FSR) and FWHM in Z-space at ~6600 Å are 700 and 25, respectively. These values do not depend on plate spacing. The former is accurate to 1% or better. The latter is for an optimized parallelism; values for individual setups may be higher by ~10-20% because of the precision limits of the parallelization procedure. Accordingly, the FWHM in wavelength space is only reproducible at the 10-20% level.
  3. Fractional orders are caused by small phase shifts due to the reflective coating on the etalon mirrors.

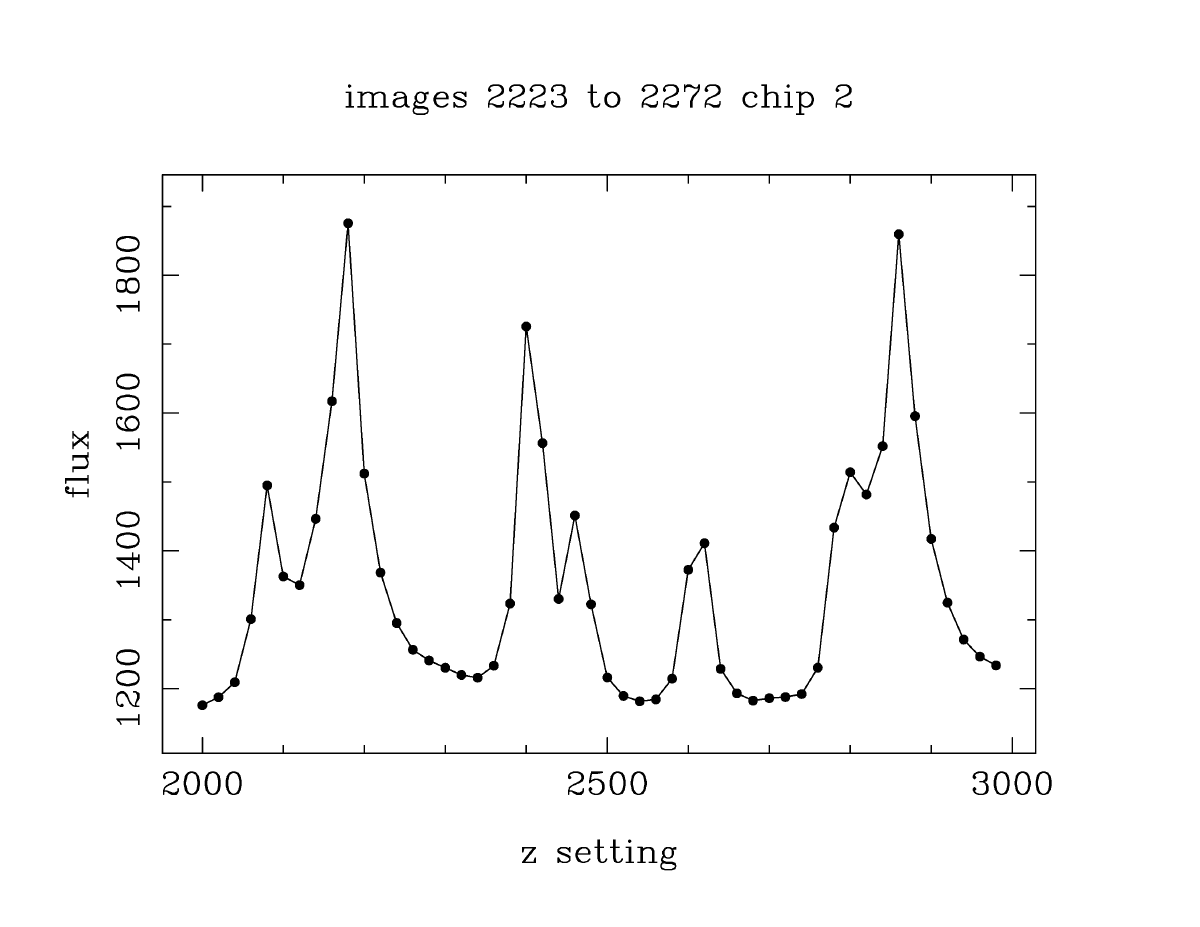

Z_coarse = -2
Z_fine = 4.10
Lamp: Neon
Wavelengths (Å); order # in [], weak lines in ():
  Ne 6678.27 [20.00]
  Ne 6402.24 [21.00] (+ 6717.04 [20.00])
  Ne 6506.52 [21.00]
  Ne 6532.88 [21.00]
  Ne 6598.95 [21.00]
  Ne 6678.27 [21.00]
  Ne 6402.24 [22.00] (+ 6717.04 [21.00])
(Click plot for postscript copy.)

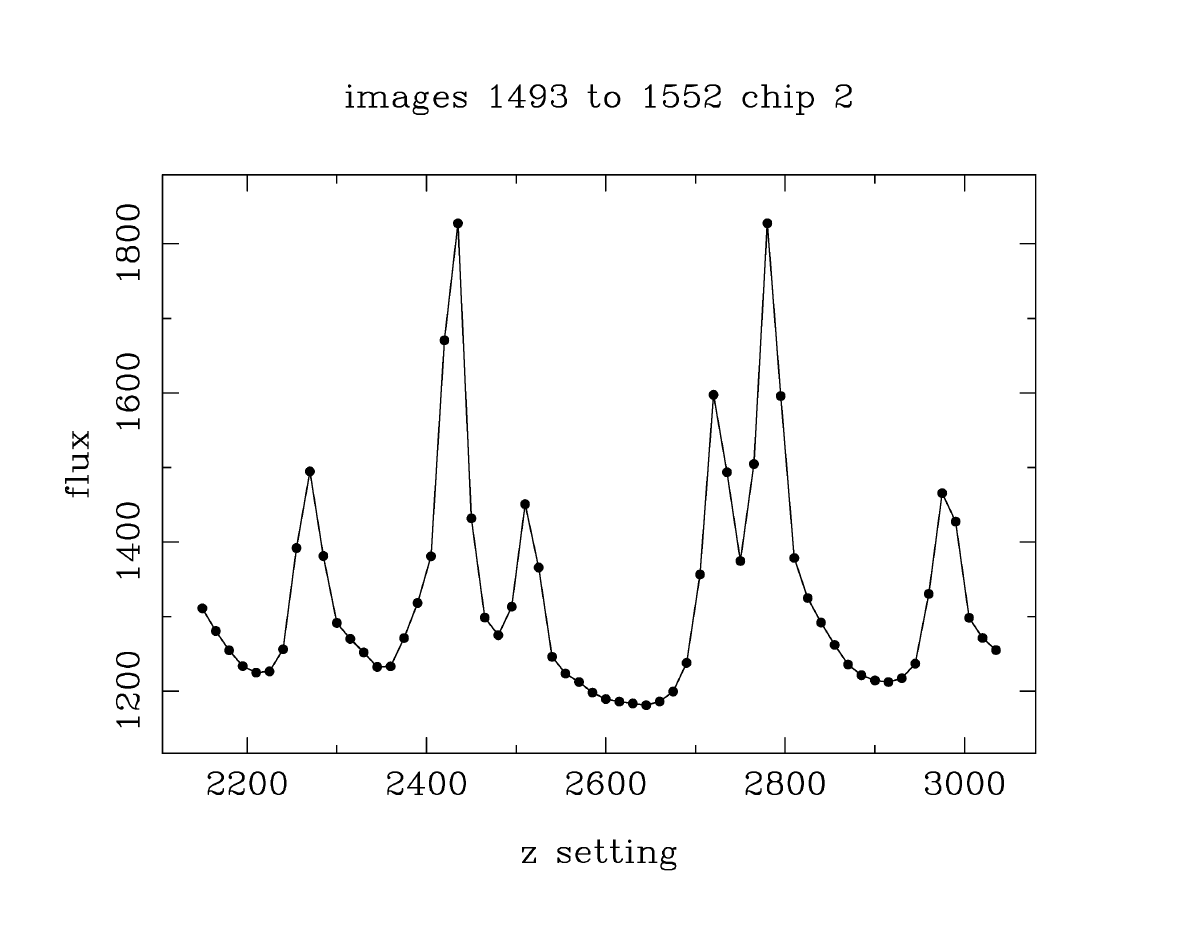

Z_coarse = +1
Z_fine = 4.10
Lamp: Neon
Wavelengths (Å); order # in [], weak lines in ():
  Ne 6678.27 [29.15]
  Ne 6506.52 [30.15] (+ 6717.04 [29.15])
  Ne 6532.88 [30.15]
  Ne 6598.95 [30.15]
  Ne 6402.24 [31.15]
  Ne 6678.27 [30.15]
(Click plot for postscript copy.)

Z_coarse = +3
Z_fine = 4.10
Lamp: Neon
Lines (Å); order # in [], weak lines in ():
  Ne 6402.24 [36.13]
  Ne 6598.95 [35.13]
  Ne 6678.27 [35.13]
  Ne 6506.52 [36.13]
  Ne 6532.88 [36.13] (+ 6717.04 [35.13])
  Ne 6402.24 [37.13]
  Ne 6598.95 [36.13]
(Click plot for postscript copy.)
