SUMMARY TABLE
Zcoarse |
order |
FWHM (Å) |
dL/dZ (Å) |
Zfine(6700-6900 Å) |
FSR (Å) |
Lamps |
-2 |
19.28 |
10.3 |
0.4887 |
~1430 - 1840 |
353 |
Ne, NeHg, He |
|
20.28 |
9.8 |
0.4645 |
~2140 - 2570 |
335 |
|
+1 |
31.06 |
6.4 |
0.3040 |
~1080 - 1750 |
215 |
Ne |
|
32.06 |
6.2 |
0.2945 |
~1550 - 2250 |
208 |
|
+3 |
37.82 |
5.6 |
0.2682 |
~ 1405 - 2150 |
177 |
Ne |
|
38.82 |
5.5 |
0.2613 |
~1695 - 2315 |
173 |
|
TABLE NOTES
- The Zfine values listed above in computer units apply
at the optical axis for the default instrument Zfine value
of 4.10 entered into the CS-100.
- The free spectral range (FSR) and FWHM in Z-space at ~6800 Å
are 729 and 21, respectively. These values do not depend on plate
spacing. The former is accurate to 1% or better. The latter is
for an optimized parallelism; values for individual setups may be
higher by ~10-20% because of the precision limits of the
parallelization procedure. Accordingly, the FWHM in wavelength space
is only reproducible at the 10-20% level.
- Fractional orders are caused by small phase shifts due to the
reflective coating on the etalon mirrors.
Z_coarse = -2
Z_fine = 4.10
Lamp: Neon
Wavelengths (Å); order # in [], weak lines in ():
Ne 6929.47 [19.3]
Ne 6678.28 [20.3] + Ne 6717.04 [20.3] (+ Ne 7032.41 [19.3])
Ne 6929.47 [20.3]
(Click plot for postscript copy.)

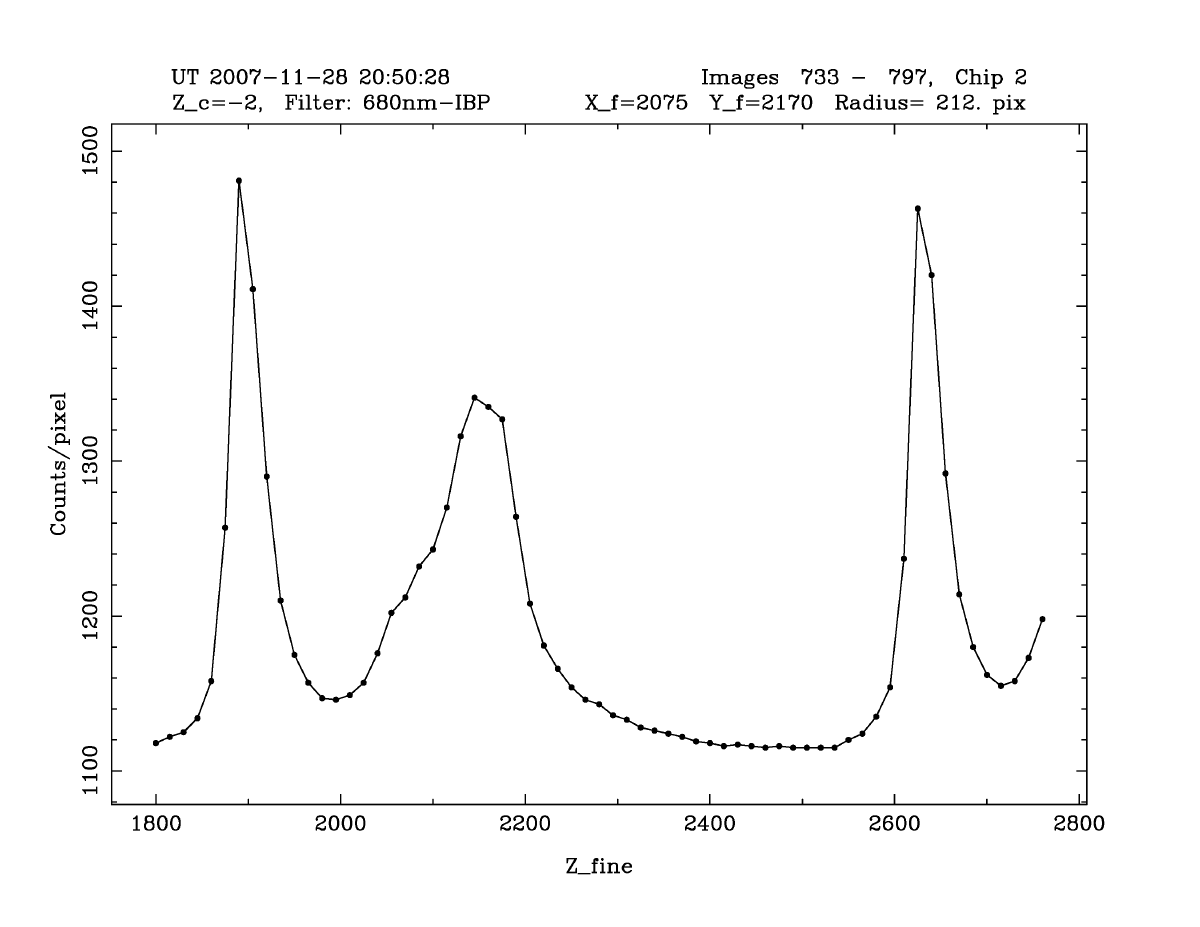

Z_coarse = -2
Z_fine = 4.10
Lamp: Neon - Mercury
Wavelengths (Å); order # in [], weak lines in ():
Hg 6907.52 [19.3]
(Click plot for postscript copy.)

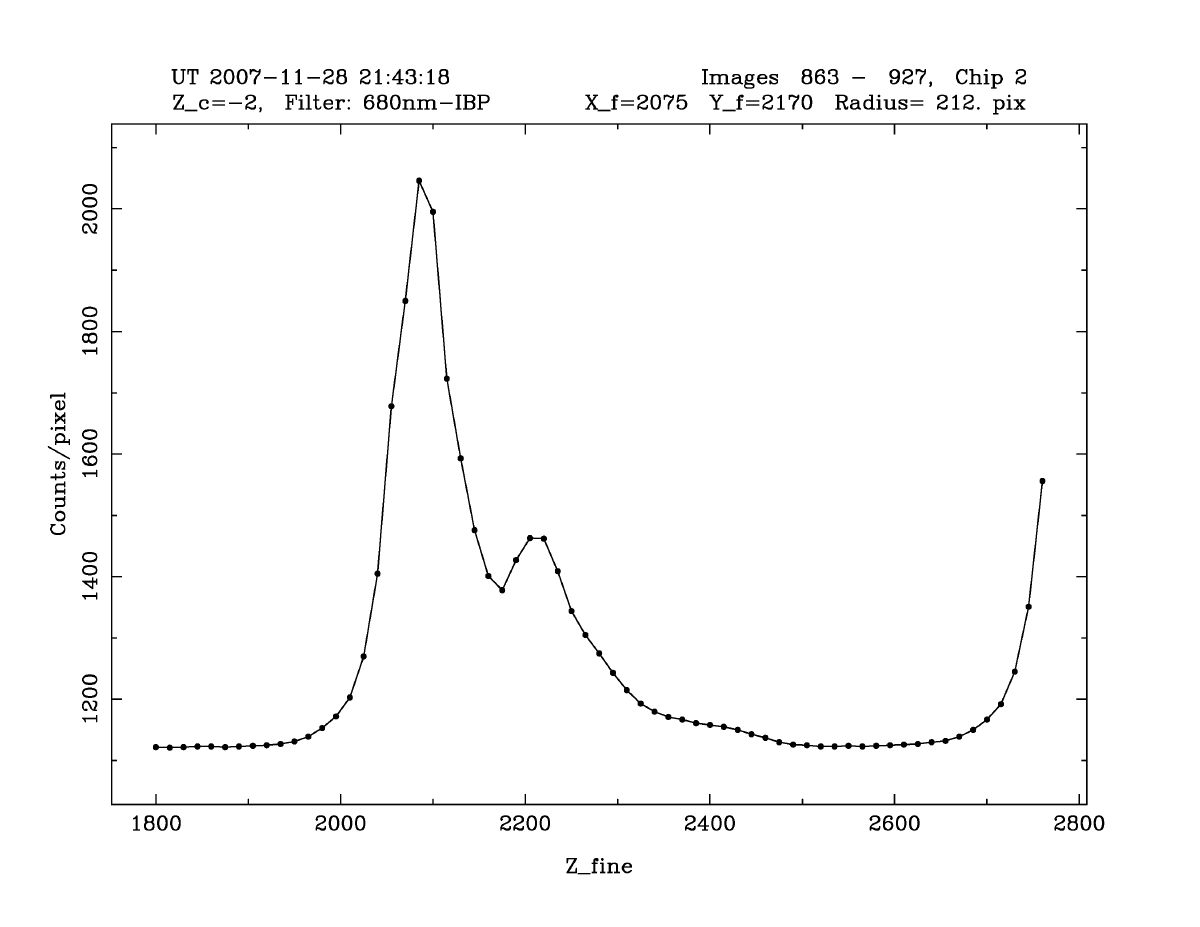

Z_coarse = -2
Z_fine = 4.10
Lamp: Helium
Wavelengths (Å); order # in [], weak lines in ():
He 6678.15 [20.3]
He 7065.19 [19.3]
(Click plot for postscript copy.)

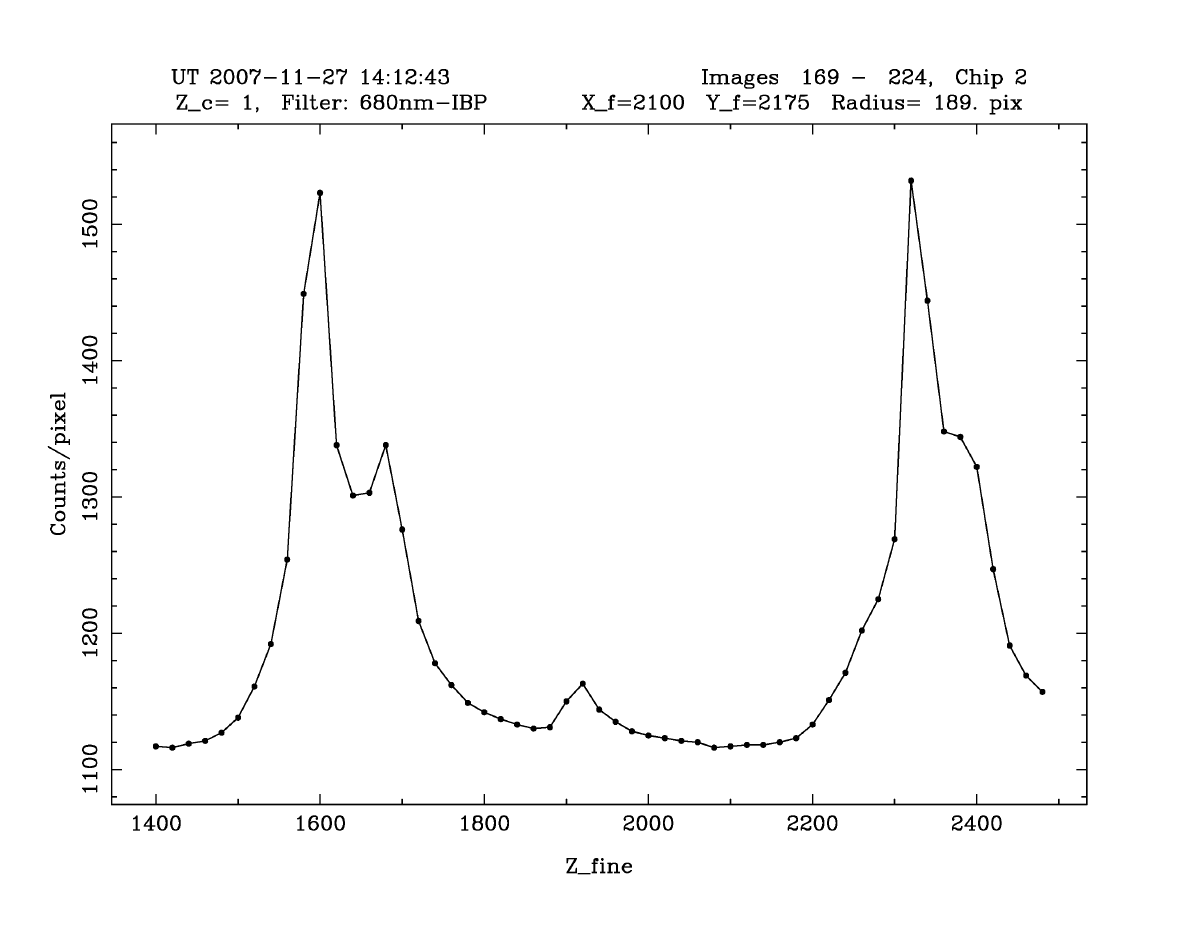

Z_coarse = +1
Z_fine = 4.10
Lamp: Neon
Wavelengths (Å); order # in [], weak lines in ():
Ne 6929.47 [31.1]
Ne 6738.03 [32.1]
Ne 7024.05 [31.1] + 7032.41 [31.1]
Ne 6929.47 [32.1]
Ne 6738.03 [33.1]
(Click plot for postscript copy.)

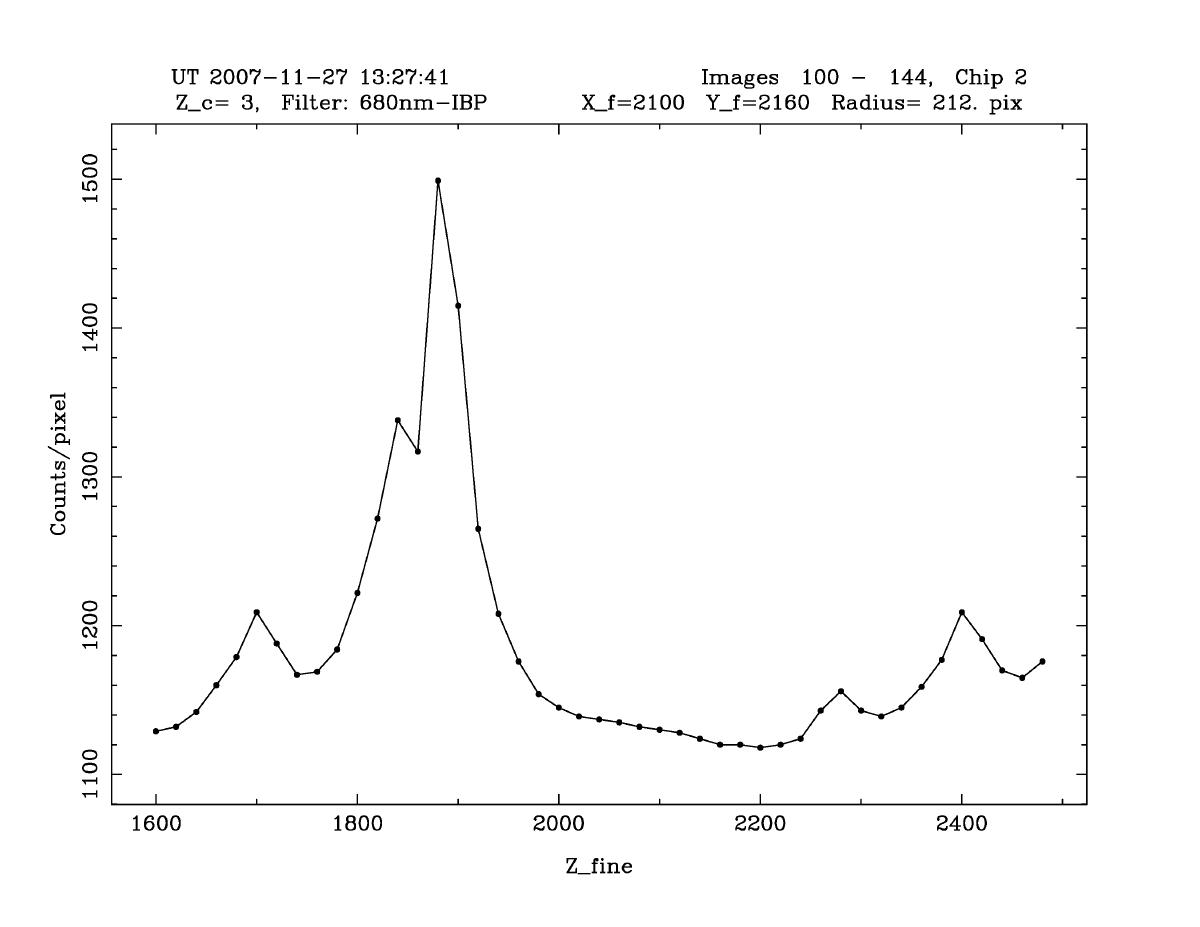

Z_coarse = +3
Z_fine = 4.10
Lamp: Neon
Lines (Å); order # in [], weak lines in ():
Ne ???????
Ne 6738.03 [38.8]
Ne 6929.47 [37.8]
Ne 7032.41 [37.8]
Ne ???????
(Click plot for postscript copy.)
