SUMMARY TABLE
Z_coarse order FWHM (Å) dL/dZ (Å) Zfine(6930-7160 Å) FSR (Å)
plot -2 22.75 10.3 0.4138 ~1800 - 2360 299
23.75 9.9 0.3964 ~2540 - 3120 279
plot +1 30.76 7.7 0.3075 ~1510 - 2260 224
31.76 7.4 0.2978 ~2240 - 3010 217
plot +3 35.80 6.6 0.2648 ~1840 - 2710 191
36.80 6.4 0.2576 ~2570 - 3460 186
TABLE NOTES
  1. The Zfine values listed above in computer units apply at the optical axis for the default instrument Zfine value of 4.10 entered into the CS-100.
  2. The free spectral range (FSR) and FWHM in Z-space at ~7050 Å are 747 and 25, respectively. These values do not depend on plate spacing. The former is accurate to 1% or better. The latter is for an optimized parallelism; values for individual setups may be higher by ~10-20% because of the precision limits of the parallelization procedure. Accordingly, the FWHM in wavelength space is only reproducible at the 10-20% level.
  3. Fractional orders are caused by small phase shifts due to the reflective coating on the etalon mirrors.

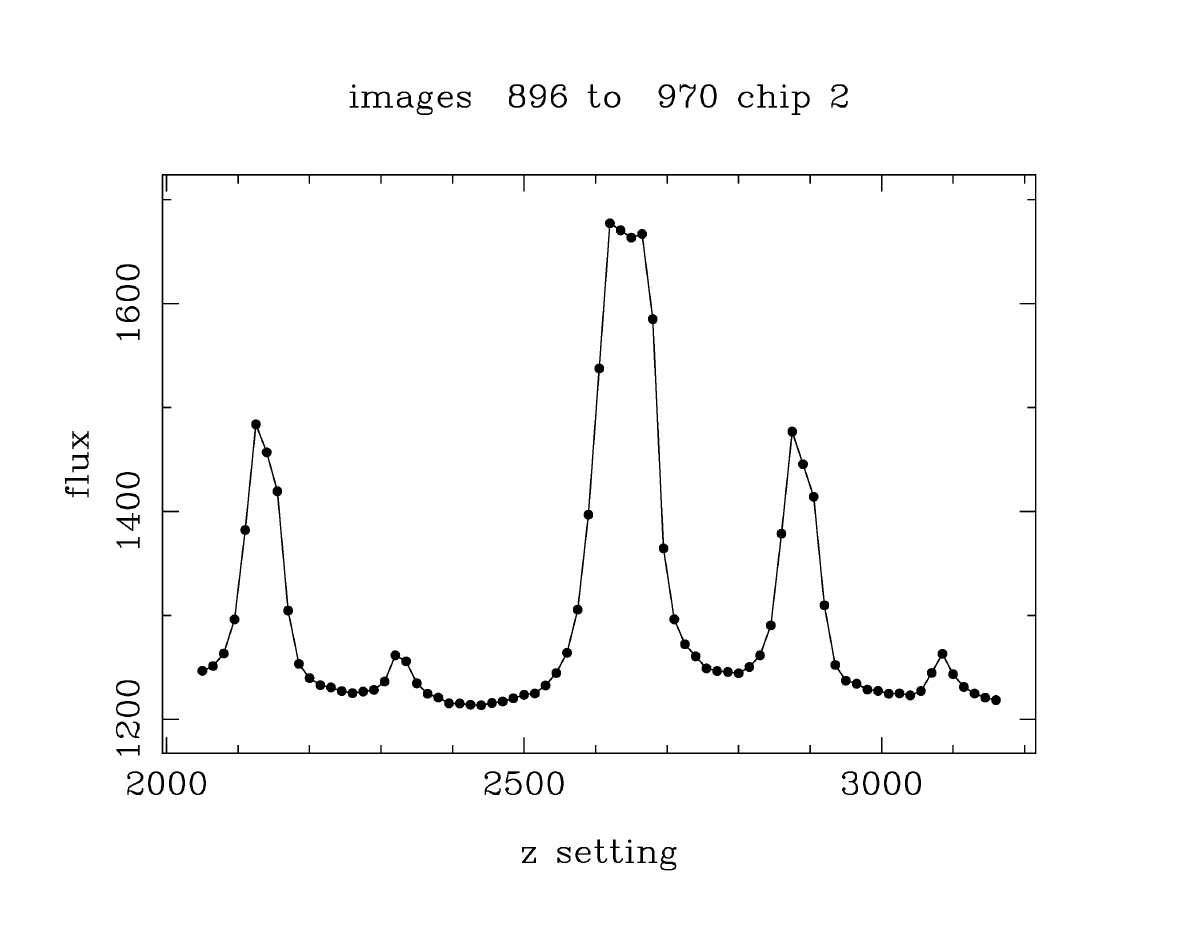

Z_coarse = -2
Z_fine = 4.10
Lamp: Argon
Wavelengths (Å); order # in [], weak lines in ():
  Ar 7067.218 [22.8]
  Ar 7147.042 [22.8]
  Ar 6965.431 [23.8] + ???
  Ar 7067.218 [23.8]
  Ar 7147.042 [23.8]
(Click plot for postscript copy.)

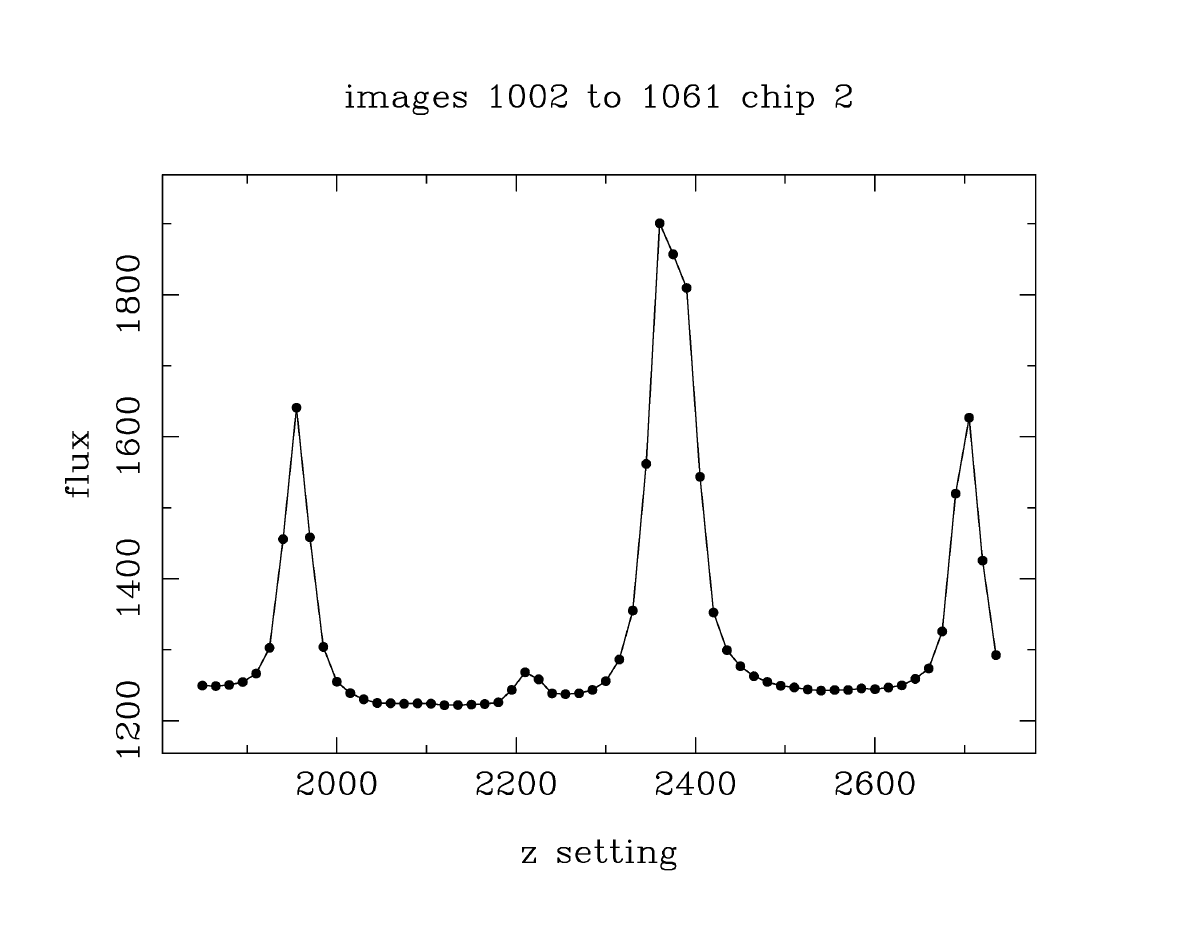

Z_coarse = +1
Z_fine = 4.10
Lamp: Neon
Wavelengths (Å); order # in [], weak lines in ():
  Ar 7067.218 [22.8]
  Ar 7147.042 [22.8]
  Ar 6965.431 [23.8] + ???
  Ar 7067.218 [23.8]
(Click plot for postscript copy.)

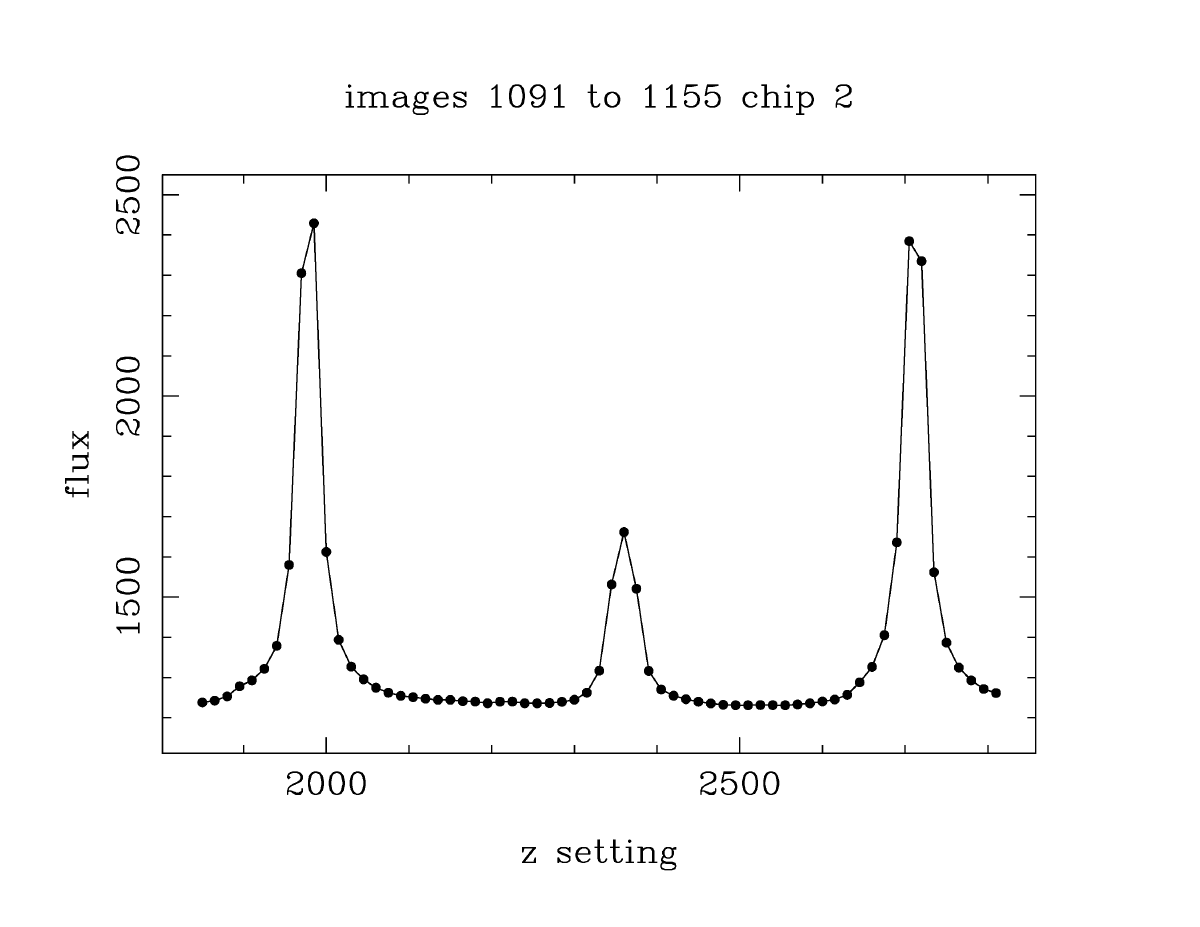

Z_coarse = +3
Z_fine = 4.10
Lamp: Neon
Lines (Å); order # in [], weak lines in ():
  Ar 6965.431 [22.8] (+ Ar 7147.042 [21.8])
  Ar 7067.218 [22.8]
  Ar 6965.431 [23.8] (+ Ar 7147.042 [22.8])
