#include <carma/antenna/bima/Tiltmeter.h>

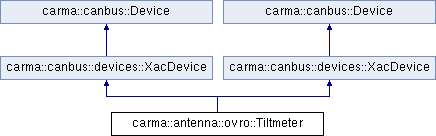

Inheritance diagram for carma::antenna::ovro::Tiltmeter:

Public Types
enum	OpMode { LOOP_ON, LOOP_OFF, MANUAL, LOOP_ON, LOOP_OFF, MANUAL }
	Enumeration for Thermal control operation mode. More...

enum	OpMode { LOOP_ON, LOOP_OFF, MANUAL, LOOP_ON, LOOP_OFF, MANUAL }
	Enumeration for Thermal control operation mode. More...

Public Member Functions
std::map < carma::canbus::msgType, std::string >	getHalfSecMonitors () const
	Retrieve a map of this devices half second monitor points. More...

std::map < carma::canbus::msgType, std::string >	getHalfSecMonitors () const
	Retrieve a map of this devices half second monitor points. More...

carma::services::Angle	getMostRecentAftForwardTilt () const
	Get most recent aft-forward tilt measurement. More...

carma::services::Angle	getMostRecentLeftRightTilt () const
	Get most recent left-right tilt measurement. More...

std::map < carma::canbus::msgType, std::string >	getSlowMonitors () const
	Return a map of this devices slow monitor points. More...

std::map < carma::canbus::msgType, std::string >	getSlowMonitors () const
	Return a map of this devices slow monitor points. More...

void	processMsg (carma::canbus::msgType mid, std::vector< carma::canbus::byteType > &data, bool sim)
	Process a CAN message addressed to the CryoCompressor module. More...

void	processMsg (carma::canbus::msgType mid, std::vector< carma::canbus::byteType > &data, bool sim)
	Process a CAN message addressed to the CryoCompressor module. More...

void	regulateTemperature (OpMode opMode, float pwrFract)
	Regulate temperature. More...

void	regulateTemperature (OpMode opMode, float pwrFract)
	Regulate temperature. More...

void	setLoopBandwidth (float bw)
	Set loop bandwidth. More...

void	setLoopBandwidth (float bw)
	Set loop bandwidth. More...

void	setLoopGain (float gain)
	Set loop gain. More...

void	setLoopGain (float gain)
	Set loop gain. More...

void	setLoopIntegrationConstant (float loopInteg)
	Set loop integration constant. More...

void	setLoopIntegrationConstant (float loopInteg)
	Set loop integration constant. More...

void	setLoopRateConstant (float rateConst)
	Set loop rate constant. More...

void	setLoopRateConstant (float rateConst)
	Set loop rate constant. More...

void	setTemperature (float temp)
	Set temperature of the tiltmeter. More...

void	setTemperature (float temp)
	Set temperature of the tiltmeter. More...

carma::canbus::Message	simulateMsg (carma::canbus::msgType mid)
	Produce a simulated CAN message for a given msgType. More...

carma::canbus::Message	simulateMsg (carma::canbus::msgType mid)
	Produce a simulated CAN message for a given msgType. More...

	Tiltmeter (carma::canbus::nodeType node, carma::canbus::CanOutput &io, carma::monitor::OvroSubsystem &mon, unsigned short antNo)
	Constructor. More...

	Tiltmeter (carma::canbus::nodeType node, carma::canbus::CanOutput &io, carma::monitor::BimaSubsystem &bmon)
	Constructor. More...

void	updateFrameData ()
	Update Frame Data. More...

void	updateFrameData ()
	Update Frame Data. More...

void	writeLoopParametersToEEPROM ()
	Write loop parameters to EEPROM. More...

void	writeLoopParametersToEEPROM ()
	Write loop parameters to EEPROM. More...

virtual	~Tiltmeter ()
	Destructor. More...

virtual	~Tiltmeter ()
	Destructor. More...

Public Member Functions inherited from carma::canbus::devices::XacDevice
bool	isOnline ()
	Is Device ONLINE? More...

void	reset ()
	Reset the can module via CORBA using Device::softReset() method. More...

virtual void	setState (deviceStateType state)
	Set the state of the device. More...

void	startChannelOneFastSampling (unsigned short fastItem)
	Start fast sampling on channel one with the requested data item. More...

void	startChannelTwoFastSampling (unsigned short fastItem)
	Start fast sampling on channel two with the requested data item. More...

void	stopChannelOneFastSampling ()
	Stop fast sampling on channel one. More...

void	stopChannelTwoFastSampling ()
	Stop fast sampling on channel two. More...

	XacDevice (carma::canbus::apiType api, carma::canbus::nodeType node, carma::canbus::CanOutput &canOutput)
	Constructor. More...

virtual	~XacDevice ()
	Destructor. More...

Public Member Functions inherited from carma::canbus::Device
carma::canbus::Message	createDummyMsg () const
	Create a dummy CAN message. More...

carma::canbus::Message	createMsgToAllNodes (msgType messageId) const
	Create a CAN message addressed to all nodes of this type. More...

carma::canbus::Message	createMsgToHost (msgType messageId) const
	Create a CAN message addressed from this Device to the host. More...

carma::canbus::Message	createMsgToNode (msgType messageId) const
	Create a CAN message addressed to this device from the host. More...

	Device (apiType api, nodeType node, CanOutput &io)
	Device constructor. More...

apiType	getApi () const
	Return api code of device. More...

char	getApiVersion () const
	Get API Version of this Device. More...

boardType	getBoardType () const
	Return board type id of device. More...

busIdType	getBusId () const
	Return bus Id that node resides on. More...

virtual MsgIdInfoMap	getControls () const
	Return a map of devices controls. More...

keyType	getKey () const
	Create a key unique to this api and node. More...

double	getLastRxTime () const
	Get Last RX Time for device. More...

unsigned int	getNlatePackets () const
	Get number of late packets. More...

nodeType	getNode () const
	Return node location code of device. More...

serialNumberType	getSerialNumber () const
	Return serial number of device. More...

deviceStateType	getState () const
	Status access routine. More...

void	reset ()
	Perform a software reset of module. More...

void	setBoardType (boardType bt)
	Set board type of device. More...

void	setBusId (busIdType busId)
	Set busId of device. More...

virtual void	setLastRxTime (double rxMjd)
	Set latest rx time. More...

void	setSerialNumber (serialNumberType sn)
	Set serial number of device. More...

void	startChannelOneFastSampling (unsigned short fastItem)
	Start fast sampling the specified data item on channel 1. More...

void	startChannelTwoFastSampling (unsigned short fastItem)
	Start fast sampling the specified data item on channel 2. More...

void	stopChannelOneFastSampling ()
	Stop fast sampling on channel 1 This routine will stop fast sampling on channel 1 regardless of whether this node is fast sampling the channel or not! In other words the request goes out globally. More...

void	stopChannelTwoFastSampling ()
	Stop fast sampling on channel 2 This routine will stop fast sampling on channel 2 regardless of whether this node is fast sampling the channel or not! In other words the request goes out globally. More...

virtual	~Device ()
	Device destructor. More...

Additional Inherited Members
Static Public Member Functions inherited from carma::canbus::Device
static keyType	createKey (apiType api, nodeType node)

Static Public Attributes inherited from carma::canbus::devices::XacDevice
static const carma::canbus::msgType	SYSTEM_MONITOR_PACKET_1 = 0x120

static const carma::canbus::msgType	SYSTEM_MONITOR_PACKET_2 = 0x121

static const carma::canbus::msgType	SYSTEM_MONITOR_PACKET_3 = 0x122

static const carma::canbus::msgType	SYSTEM_MONITOR_PACKET_4 = 0x123

static const carma::canbus::msgType	SYSTEM_MONITOR_PACKET_5 = 0x124

Protected Member Functions inherited from carma::canbus::devices::XacDevice
virtual void	initialize ()
	Initialization hook. More...

void	processSystemMonitorPacket (carma::canbus::msgType mid, carma::canbus::DataVector &data, carma::monitor::Xac &xac)
	Process a system monitor packet. More...

void	processSystemMonitorPacket1 (carma::canbus::DataVector &data, carma::monitor::Xac &xac)
	Process System Monitor Packet 1 This routine processes standard system monitor packet 1 and places the data into the input Xac reference. More...

void	processSystemMonitorPacket2 (carma::canbus::DataVector &data, carma::monitor::Xac &xac)
	Process System Monitor Packet 2. More...

void	processSystemMonitorPacket3 (carma::canbus::DataVector &data, carma::monitor::Xac &xac)
	Process System Monitor Packet 3. More...

void	processSystemMonitorPacket4 (carma::canbus::DataVector &data, carma::monitor::Xac &xac)
	Process System Monitor Packet 4. More...

void	processSystemMonitorPacket5 (carma::canbus::DataVector &data, carma::monitor::Xac &xac)
	Process System Monitor Packet 5. More...

carma::canbus::Message	simSystemMonitorPacket (carma::canbus::msgType mid)
	Simulate system monitor packet. More...

carma::canbus::Message	simSystemMonitorPacket1 ()
	Simulate System Monitor Packet 1. More...

carma::canbus::Message	simSystemMonitorPacket2 ()
	Simulate System Monitor Packet 2. More...

carma::canbus::Message	simSystemMonitorPacket3 ()
	Simulate System Monitor Packet 3. More...

carma::canbus::Message	simSystemMonitorPacket4 ()
	Simulate System Monitor Packet 4. More...

carma::canbus::Message	simSystemMonitorPacket5 ()
	Simulate System Monitor Packet 5. More...

Protected Member Functions inherited from carma::canbus::Device
void	incrementLatePacketCount ()
	Increment the late packet count by 1. More...

bool	isPacketLate (double window=100.0)
	Determine if the last packet sent from this device was late. More...

void	resetLatePacketCount ()
	Reset the late packet count to 0. More...

void	setApiVersion (char api)
	Set API Version. More...

Static Protected Member Functions inherited from carma::canbus::devices::XacDevice
static bool	isSystemMonitorPacket (carma::canbus::msgType)
	Check that input message type is a system monitor packet. More...

Protected Attributes inherited from carma::canbus::Device
const apiType	api_

CanOutput &	io_
	Reference to CanOutput object. More...

const keyType	key_

const nodeType	node_

Static Protected Attributes inherited from carma::canbus::Device
static const msgType	RESET = 0x0000
	Software reset message id. More...

static const msgType	START_CHANNEL_1_FAST_SAMPLING = 0x0004
	Begin channel 1 fast sampling message id. More...

static const msgType	START_CHANNEL_2_FAST_SAMPLING = 0x0005
	Begin channel 2 fast sampling message id. More...

static const msgType	STOP_CHANNEL_1_FAST_SAMPLING = 0x0002
	Stop channel 1 fast sampling message id. More...

static const msgType	STOP_CHANNEL_2_FAST_SAMPLING = 0x0003

Detailed Description

Tiltmeter device class.

This class implements API No. 040 for the OVRO Tiltmeter CAN module.

Definition at line 34 of file Tiltmeter.h.

Member Enumeration Documentation

enum carma::antenna::ovro::Tiltmeter::OpMode

Enumeration for Thermal control operation mode.

Definition at line 112 of file Tiltmeter.h.

enum carma::antenna::ovro::Tiltmeter::OpMode

Enumeration for Thermal control operation mode.

Definition at line 124 of file Tiltmeter.h.

Constructor & Destructor Documentation

carma::antenna::ovro::Tiltmeter::Tiltmeter	(	carma::canbus::nodeType	node,
		carma::canbus::CanOutput &	io,
		carma::monitor::BimaSubsystem &	bmon
	)

Constructor.

Parameters

node	Location id of this instance (node location id).
io	Reference to CanOutput class.
antNo	BIMA (6-m) Antenna number [7..15].

virtual carma::antenna::ovro::Tiltmeter::~Tiltmeter ( )

virtual

Destructor.

carma::antenna::ovro::Tiltmeter::Tiltmeter	(	carma::canbus::nodeType	node,
		carma::canbus::CanOutput &	io,
		carma::monitor::OvroSubsystem &	mon,
		unsigned short	antNo
	)

Constructor.

Parameters

node	Location id of this instance (node location id).
io	Reference to CanOutput class.
antNo	OVRO (10-m) Antenna number [1..6].

virtual carma::antenna::ovro::Tiltmeter::~Tiltmeter ( )

virtual

Destructor.

Member Function Documentation

std::map<carma::canbus::msgType, std::string> carma::antenna::ovro::Tiltmeter::getHalfSecMonitors ( ) const

virtual

Retrieve a map of this devices half second monitor points.

The monitor points returned from this routine will be simulated if the device is in the OFFLINE state.

Returns: a map of the devices half second monitor points string descriptions keyed by message id.

Implements carma::canbus::Device.

std::map<carma::canbus::msgType, std::string> carma::antenna::ovro::Tiltmeter::getHalfSecMonitors ( ) const

virtual

Retrieve a map of this devices half second monitor points.

The monitor points returned from this routine will be simulated if the device is in the OFFLINE state.

Returns: a map of the devices half second monitor points string descriptions keyed by message id.

Implements carma::canbus::Device.

carma::services::Angle carma::antenna::ovro::Tiltmeter::getMostRecentAftForwardTilt ( ) const

Get most recent aft-forward tilt measurement.

Note that this is the raw tilt value - no tilt zero has been applied.

Returns: Most recent aft-forward tilt.

carma::services::Angle carma::antenna::ovro::Tiltmeter::getMostRecentLeftRightTilt ( ) const

Get most recent left-right tilt measurement.

Note that this is the raw tilt value - no tilt zero has been applied.

Returns: Most recent left-right tilt measurement.

std::map<carma::canbus::msgType, std::string> carma::antenna::ovro::Tiltmeter::getSlowMonitors ( ) const

virtual

Return a map of this devices slow monitor points.

These monitor points will be simulated every 5 seconds if the device is in the OFFLINE state.

Returns: a map of the devices slow (5 sec) monitor points string descriptions keyed by message id.

Reimplemented from carma::canbus::devices::XacDevice.

std::map<carma::canbus::msgType, std::string> carma::antenna::ovro::Tiltmeter::getSlowMonitors ( ) const

virtual

Return a map of this devices slow monitor points.

These monitor points will be simulated every 5 seconds if the device is in the OFFLINE state.

Returns: a map of the devices slow (5 sec) monitor points string descriptions keyed by message id.

Reimplemented from carma::canbus::devices::XacDevice.

void carma::antenna::ovro::Tiltmeter::processMsg	(	carma::canbus::msgType	mid,
		std::vector< carma::canbus::byteType > &	data,
		bool	sim
	)

virtual

Process a CAN message addressed to the CryoCompressor module.

This routine is responsible for processing all CAN messages addressed to this device.

Parameters

mid	the 10bit message id (carma::canbus::msgType)
data	reference to the byte vector containing the raw data.
sim	Indicates if message is simulate or real.

See Also: carma::canbus::Device::processMsg

Implements carma::canbus::Device.

void carma::antenna::ovro::Tiltmeter::processMsg	(	carma::canbus::msgType	mid,
		std::vector< carma::canbus::byteType > &	data,
		bool	sim
	)

virtual

Process a CAN message addressed to the CryoCompressor module.

This routine is responsible for processing all CAN messages addressed to this device.

Parameters

mid	the 10bit message id (carma::canbus::msgType)
data	reference to the byte vector containing the raw data.
sim	Indicates if message is simulate or real.

See Also: carma::canbus::Device::processMsg

Implements carma::canbus::Device.

void carma::antenna::ovro::Tiltmeter::regulateTemperature	(	OpMode	opMode,
		float	pwrFract
	)

Regulate temperature.

Parameters

opMode	Operation mode of thermal control loop.
pwrFract	Fraction of maximum power - only used if opMode = MANUAL).

void carma::antenna::ovro::Tiltmeter::regulateTemperature	(	OpMode	opMode,
		float	pwrFract
	)

Regulate temperature.

Parameters

opMode	Operation mode of thermal control loop.
pwrFract	Fraction of maximum power - only used if opMode = MANUAL).

void carma::antenna::ovro::Tiltmeter::setLoopBandwidth ( float bw )

Set loop bandwidth.

Parameters

bw	Loop BW (inverse of sample and correction interval) in Hz.

See Also: writeLoopParametersToEEPROM.

void carma::antenna::ovro::Tiltmeter::setLoopBandwidth ( float bw )

Set loop bandwidth.

Parameters

bw	Loop BW (inverse of sample and correction interval) in Hz.

See Also: writeLoopParametersToEEPROM.

void carma::antenna::ovro::Tiltmeter::setLoopGain ( float gain )

Set loop gain.

Set a new value for the loop gain.

Parameters

gain	Loop gain in (percent max pwr)/K.

See Also: writeLoopParametersToEEPROM

void carma::antenna::ovro::Tiltmeter::setLoopGain ( float gain )

Set loop gain.

Set a new value for the loop gain.

Parameters

gain	Loop gain in (percent max pwr)/K.

See Also: writeLoopParametersToEEPROM

void carma::antenna::ovro::Tiltmeter::setLoopIntegrationConstant ( float loopInteg )

Set loop integration constant.

Parameters

loopInteg Loop integration constant in (percent max pwr)/K.

See Also: writeLoopParametersToEEPROM

void carma::antenna::ovro::Tiltmeter::setLoopIntegrationConstant ( float loopInteg )

Set loop integration constant.

Parameters

loopInteg Loop integration constant in (percent max pwr)/K.

See Also: writeLoopParametersToEEPROM

void carma::antenna::ovro::Tiltmeter::setLoopRateConstant ( float rateConst )

Set loop rate constant.

Parameters

rateConst Loop derivative gain in (percent max. pwr)/K.

See Also: writeLoopParametersToEEPROM

void carma::antenna::ovro::Tiltmeter::setLoopRateConstant ( float rateConst )

Set loop rate constant.

Parameters

rateConst Loop derivative gain in (percent max. pwr)/K.

See Also: writeLoopParametersToEEPROM

void carma::antenna::ovro::Tiltmeter::setTemperature ( float temp )

Set temperature of the tiltmeter.

Parameters

temp	Temperature in C.

void carma::antenna::ovro::Tiltmeter::setTemperature ( float temp )

Set temperature of the tiltmeter.

Parameters

temp	Temperature in C.

carma::canbus::Message carma::antenna::ovro::Tiltmeter::simulateMsg ( carma::canbus::msgType mid )

virtual

Produce a simulated CAN message for a given msgType.

This routine creates a Message with simulated data for an input message id. The returned message is automatically placed in the CAN message queue for retrieval and processing by the Master class. It thus can be used to test the processMsg method above.

Parameters

mid	the 10bit message id (carma::canbus::msgType)

Implements carma::canbus::Device.

carma::canbus::Message carma::antenna::ovro::Tiltmeter::simulateMsg ( carma::canbus::msgType mid )

virtual

Produce a simulated CAN message for a given msgType.

This routine creates a Message with simulated data for an input message id. The returned message is automatically placed in the CAN message queue for retrieval and processing by the Master class. It thus can be used to test the processMsg method above.

Parameters

mid	the 10bit message id (carma::canbus::msgType)

Implements carma::canbus::Device.

void carma::antenna::ovro::Tiltmeter::updateFrameData ( )

virtual

Update Frame Data.

Reimplemented from carma::canbus::Device.

void carma::antenna::ovro::Tiltmeter::updateFrameData ( )

virtual

Update Frame Data.

Reimplemented from carma::canbus::Device.

void carma::antenna::ovro::Tiltmeter::writeLoopParametersToEEPROM ( )

Write loop parameters to EEPROM.

void carma::antenna::ovro::Tiltmeter::writeLoopParametersToEEPROM ( )

Write loop parameters to EEPROM.

The documentation for this class was generated from the following files:

carma/antenna/bima/Tiltmeter.h
carma/antenna/common/Tiltmeter.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
