Carma Canbus Master class. More...

#include <carma/canbus/Master.h>

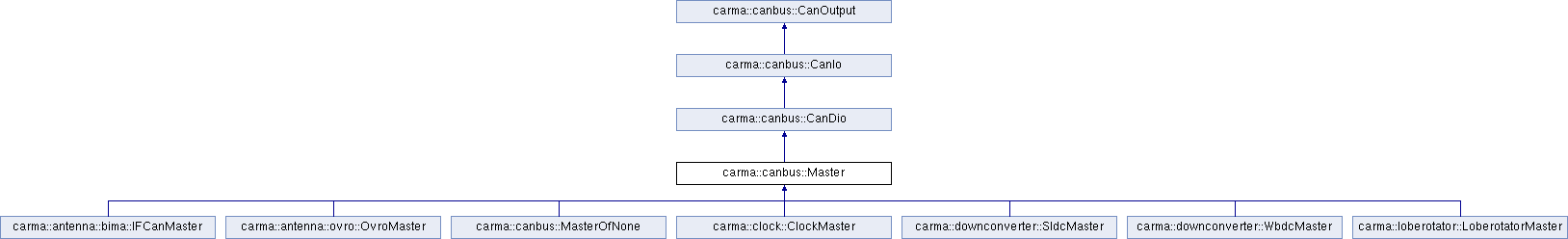

Inheritance diagram for carma::canbus::Master:

Public Member Functions
	Master (bool simOfflineNodes=true)
	Default constructor for emulation. More...

	Master (int boardId, bool simOfflineNodes=false, bool reset=false, bool terminate=true)
	Master constructor. More...

	Master (int boardId, int modulbusId, bool simOfflineNodes=false, bool reset=false, bool terminate=true)
	Master constructor. More...

	Master (const ::std::vector< DevTermPair > &devTermPairs, bool simOfflineNodes=false, bool reset=false)
	Constructor for arbitrary number of CanDio ports. More...

void	run ()
	Run the Master. More...

void	stop ()
	Stop running internal Master threads. More...

virtual	~Master ()
	Master destructor. More...

Public Member Functions inherited from carma::canbus::CanDio
	CanDio ()
	Default constructor. More...

	CanDio (int boardId, bool reset=true, bool terminate=true)
	Constructor to control both CAN busses on a single board. More...

	CanDio (int boardId, int slotId, bool reset=true, bool terminate=true)
	Constructor to control a single CAN bus. More...

	CanDio (const std::vector< DevTermPair > &devTermPairs, bool reset=true)
	Constructor to control arbitrary number of CAN busses. More...

void	echoAll (bool enable)
	Enable or disable echoing sent messages back through the read interface. More...

std::map< busIdType, carma::canbus::busStatusType >	getBusStatus ()

carma::canbus::Message	getMessage ()
	Retrieve a CAN message. More...

bool	isTerminated ()
	Return termination state. More...

void	postMessage (const carma::canbus::Message &msg, carma::canbus::txPriorityType prio=carma::canbus::NORMAL)
	Post a CAN message. More...

void	reset ()
	Reset. More...

Public Member Functions inherited from carma::canbus::CanIo
virtual BusStatusMap	getBusStatus () const
	Retrieve bus statistics. More...

virtual	~CanIo ()
	Virtual destructor. More...

Protected Member Functions
void	addDevice (Device *device)
	Add a device to the master. More...

virtual std::map< msgType, std::string >	getControls () const
	Get controls. More...

Device *	getDevice (apiType api, nodeType node)
	Get pointer to a device. More...

int	getDonglelessPacketCount () const
	Get 'Dongleless node' packet count This routine returns the number of Dongleless node packets detected by Master. More...

unsigned int	getLatePacketCount ()
	Get combined late packet count from all devices. More...

int	getOfflineNodeCount () const
	Get number of offline nodes. More...

int	getOnlineNodeCount () const
	Get number of online nodes. More...

int	getUnknownPacketCount () const
	Get number of unknown packets This method returns the number of CAN packets that canbus::Master does not recognize. More...

	Master (const Master &)

Master &	operator= (const Master &)

void	removeDevice (apiType api, nodeType node)
	Remove a device. More...

virtual void	runReadThread ()
	Thread to read and process incoming CAN messages. More...

void	runTimerThread ()
	Timer thread. More...

virtual void	setTime ()
	Send a time sync message. More...

void	softwareReset ()
	Send a software reset command to all modules. More...

void	updateDevicesStates ()
	Update the devices states. More...

virtual void	updateStatus ()=0
	Update the status of the master. More...

Protected Member Functions inherited from carma::canbus::CanDio
void	clearReadQueue ()
	Clear any underlying read buffers. More...

void	queueMessage (const Message &msg)
	Queue CAN message to be read for simulation purposes. More...

void	setTimestampEchoLatency (int tsLatency, busIdType busId)
	Set timestamp echo latency. More...

Static Protected Member Functions
static void *	readThreadEntry (void *arg)
	Entry point for main thread. More...

static void *	timerThreadEntry (void *arg)
	Entry point for timer thread. More...

Protected Attributes
pthread_mutex_t	deviceMutex_

std::map< keyType, Device * >	devices_

int	nDonglelessPackets_

int	nOfflineNodes_

int	nOnlineNodes_

int	nUnknownPackets_

pthread_t	readThreadId_

bool	running_

carma::util::PthreadMutex	runningMutex_

const int	simOfflineNodes_

pthread_t	timerThreadId_

Protected Attributes inherited from carma::canbus::CanDio
std::auto_ptr < carma::canbus::CanIo >	cio_

std::auto_ptr< carma::canbus::Dio >	dio_

const long	pulseWidth_
	Reset pulsewidth. More...

const bool	terminate_

Additional Inherited Members
Public Types inherited from carma::canbus::CanDio
typedef ::std::pair< int, int >	BoardSlotPair
	Pair containing boardId (first) and slotId (second). More...

typedef ::std::pair < BoardSlotPair, bool >	DevTermPair
	Pair for board & slot (first) and termination setting (second). More...

Detailed Description

Carma Canbus Master class.

Master provides the core of a framework responsible for maintaining monitoring and controlling devices on a CANbus network. Its main purpose is to retrieve messages from the CANbus using the base CanDio class and then dispatch them to the appropriate carma::canbus::Device class derivative for processing. In addition, it also provides core control functionality such as sending time syncs to devices and hardware resets through the CanDio base. Finally, it also contains a built in simulator to simulate monitor packets and ship them through the monitor system pipeline. It is intimately connected with the carma::canbus::Device class and both classes public and protected interfaces should be well understood before trying to implement.

In practice, a user will overload the Device class for each type of device that will reside on the CAN network. The concrete device implementation should multiply inherit from both Device and a CORBA defined control interface. Next a user will need to inherit from this Master class to define the makeup of the CAN network. This is done by instantiating Device derived objects in the constructor and calling the Master::addDevice method to add them to the Master. This derived Master class will also generally inherit from a CORBA interface to simultaneously define the control device access interface to this network. This interface will typically consist of getDeviceX methods that retrieve CORBA references to specific devices. In addition the CORBA interface will need to define control commands that refer to the CAN bus(ses) as a whole such as reset(). In this way, the individual Device implementations and the Master as a whole become true distributed objects. Any application using this framework will be required to set up the CORBA environment (declaring Orbs, connecting to nameservers, publishing object references, etc). For a concrete example see the detailed client/server test programs in the Test/ClientServerTest subdirectory.

Memory management: As described above, derivatives of Master are generally responsible for defining the CAN network and adding the Device derivatives using the Master::addDevice method. It is important that the derivative class also properly destroy these Device derivatives properly. Devices must first be removed from the Master instance by calling Master::removeDevice. After this is done, the Devices may be destroyed in an implementation dependent manner. This may be by calling delete on heap allocated Devices or simply via scoping of the class instance. In either instance a Master derived class destructor should call Master::removeDevice for each Device added to Master. For heap allocated objects it may be necessary to call Master::getDevice, then Master::removeDevice and finally delete on the pointer (depending on if the derivative class also maintains pointers to it's Devices.

Simulation: Master starts a thread that automatically calls Device::simulateMsg on it's OFFLINE Devices. This allows a user to completely simulate and test his software, including DO control calls, without actually having any Janz CAN hardware on the system. Master calls Device::simulateMsg for fast and slow monitor packet message ids returned from the Device::getHalfSecMonitors and Device::getSlowMonitors methods. Note that these messages will only be simulated on the frame (1/2 second) timescale and slow monitor (5 second) timescale. Messages sent asynchronously or on other time scales are not supported by the Master class simulator but may be implemented by the user.

The significant advantage of this framework is that all monitor messages, timing information and core control functionality are handled directly by this Master base class. The user needs only worry about the detailed API implementation for devices and the higher level control interfaces. All intermediate details are automatically handled via the framework.

This Class, taken in conjunction with its derivatives, the Device class and the Device class derivatives, composes a Factory Method Object-Oriented Design Pattern. Within this context, the Device class is a 'Product', and its derivatives are 'Concrete Products'. The Master class is a 'Creator' and its derivative is a 'Concrete Creator'. For more information see "Design Patterns - Elements of Reusable Object-Oriented Software".

Definition at line 110 of file Master.h.

Constructor & Destructor Documentation

carma::canbus::Master::Master ( bool simOfflineNodes = true )

Default constructor for emulation.

This constructor should be used when emulation of the underlying CAN hardware is desired. When Master is constructed with this constructor, the base CanIo classes both write to /dev/null. Nonetheless, the functionality of all classes remains the same. This allows one to completely define their CAN network, publish DOs and completely simulate both the monitor and control system.

Parameters

simOfflineNodes Simulate offline nodes if set true.

Exceptions

carma::util::ErrorException upon failure of any derived class constructors.

See Also: Device::simulateMsg

carma::canbus::Master::Master	(	int	boardId,
		bool	simOfflineNodes = `false`,
		bool	reset = `false`,
		bool	terminate = `true`
	)

Master constructor.

This constructor should be used when the Master class will simultaneously control both CAN busses on a Janz/Carma CAN/Dio cPCI board.

Parameters

boardId	Board number of Janz modulbus carrier board (0 - 0xf). The carrier board is the cPCI board which contains four separate mezzanine modules (2 - CAN, 1 - DIO and 1 - RJ45 Breakout Board), each on a separate 'modulbus'. The boardId is set via a hex switch near the back of the cPCI board. On older models, it is determined via a clearly labeled PLD chip near the back of the board. The chip will be labeled "mbus X" - do not confuse this with the mobulbus numbers on the front.
simOfflineNodes	Simulate offline nodes if set true.
reset	If true, perform a hard reset upon creation.
terminate	Terminate both CAN busses if true.

Exceptions

carma::canbus::BadParameterException	if modboard number is invalid.
carma::util::ErrorException	upon failure of any derived class constructors.

carma::canbus::Master::Master	(	int	boardId,
		int	modulbusId,
		bool	simOfflineNodes = `false`,
		bool	reset = `false`,
		bool	terminate = `true`
	)

Master constructor.

This constructor should be used when the Master class will control one of the two CAN busses on the Janz/Carma CAN/Dio board.

Parameters

boardId	Board number of Janz modulbus carrier board (0 - 0xf). The carrier board is the cPCI board which contains four separate mezzanine modules (2 - CAN, 1 - DIO and 1 - RJ45 Breakout Board), each on a separate 'modulbus'. The boardId is set via a hex switch near the back of the cPCI board. On older models, it is determined via a clearly labeled PLD chip near the back of the board. The chip will be labeled "mbus X" - do not confuse this with the mobulbus numbers on the front.
modulbusId	The modulbus which contains the CAN card you wish to control. On the Janz CAN/Dio boards, the CAN cards typically reside in modulbus 0 and modulbus 1 (CAN cards have d-sub 9 connectors), however the signals are rerouted out the RJ-45 ports on the board in modulbus 2. Here you still must specify which CAN card the RJ-45 port is connected to (i.e. modulbus 0 or 1 but not 2 where the RJ-45 breakout board resides). The modulbus numbers are clearly labeled on the front of the Janz cPCI carrier board. Note that the CAN card in modulbus 0 is connected to the top blue RJ45 connector and the CAN card in modulbus 1 is connected to the bottom blue RJ45 connector.
simOfflineNodes	Simulate offline nodes if set true.
reset	If true, perform a hard reset upon creation.
terminate	Terminate CAN bus if true.

Exceptions

carma::canbus::BadParameterException	if modulbus number is invalid.
carma::util::ErrorException	upon failure of any derived class constructors.

carma::canbus::Master::Master	(	const ::std::vector< DevTermPair > &	devTermPairs,
		bool	simOfflineNodes = `false`,
		bool	reset = `false`
	)

Constructor for arbitrary number of CanDio ports.

Parameters

Vector	containing pairs of board, modulbus pairs and bus termination state.
simOfflineNodes	Simulate offline nodes if set true.
reset	If true, perform a hard reset upon creation.

Exceptions

carma::canbus::BadParameterException	if modulbus number is invalid.
carma::util::ErrorException	upon failure of any derived class constructors.

virtual carma::canbus::Master::~Master ( )

virtual

Master destructor.

Declared virtual so that all derivatives destructors are called as well if only a pointer to this base Master is destroyed or deleted.

Member Function Documentation

void carma::canbus::Master::addDevice ( Device * device )

protected

Add a device to the master.

Master maintains a map of all devices on the CAN network(s) it controls. This routine adds a device to this map and initializes the device to OFFLINE.

Parameters

device pointer to base Device class of a device.

See Also: Device::setState

Exceptions

carma::canbus::BadParameterException if device has already been added.

virtual std::map<msgType, std::string> carma::canbus::Master::getControls ( ) const

protectedvirtual

Get controls.

Master controls correspond to CAN bus control commands that are accepted by all modules regardless of API implementation or functionality. They consist of basic commands such as setTime, Software reset, Hardware reset...

Returns: map<msgType, string> map containing the message id as a key (msgType) and a string describing the control.

Reimplemented in carma::antenna::ovro::OvroMaster, carma::downconverter::SldcMaster, and carma::antenna::bima::IFCanMaster.

Device* carma::canbus::Master::getDevice	(	apiType	api,
		nodeType	node
	)

protected

Get pointer to a device.

This method retrieves a pointer to the specified device.

Parameters

api	API Id of device pointer to retrieve.
node	Node Id of device pointer to retrieve.

Returns: pointer to specified device.

Exceptions

carma::canbus::BadParameterException if device doesn't exist.

int carma::canbus::Master::getDonglelessPacketCount ( ) const

protected

Get 'Dongleless node' packet count This routine returns the number of Dongleless node packets detected by Master.

Dongleless nodes are allocated Device nodes that return a node id of

This node id is the default node of a device that cannot detect its true node id from the 1-wire dongle device. If the number is continuously increasing it represents an error condition.
Returns
dongleless packet count

unsigned int carma::canbus::Master::getLatePacketCount ( )

protected

Get combined late packet count from all devices.

This method is responsible for calling Device::getNlatePackets on all devices registered with the map, summing them up and returning the result. It is a good indicator of overall system timing health. It is the responsibility of a developer implementing canbus::Device class derivatives to update and maintain late packet counts.

Returns: combined number of late packets from all devices.

See Also: carma::canbus::Device::getNlatePackets

int carma::canbus::Master::getOfflineNodeCount ( ) const

protected

Get number of offline nodes.

Returns: number of nodes currently offline.

int carma::canbus::Master::getOnlineNodeCount ( ) const

protected

Get number of online nodes.

Returns: number of nodes currently online.

int carma::canbus::Master::getUnknownPacketCount ( ) const

protected

Get number of unknown packets This method returns the number of CAN packets that canbus::Master does not recognize.

A non-zero count does not necessarily indicate an error condition as engineering packets and any CAN packets not sent by carma::canbus::Device class derivatives added to the canbus::Master class will be added to the count. These unrecognized devices may legitimitely exist either persistently or intermitently on a CANbus for engineering or troubleshooting purposes.

Returns: unknown packet count

static void* carma::canbus::Master::readThreadEntry ( void * arg )

staticprotected

Entry point for main thread.

Thread entry points are needed to allow C-style calls to pthreads and are thus static to provide C linkage. They are placed here (directly in the class) as opposed to the global namespace (using an extern "C" linkage specifier) so that we can utilize the visibility rules provided by C++.

void carma::canbus::Master::removeDevice	(	apiType	api,
		nodeType	node
	)

protected

Remove a device.

Remove a device with the specified api and node id from the master device map. Note that removeDevice is not responsible for deleting the object itself, it only removes the object from Master's device map. If the user intends on dynamically adding and removing devices, he must destroy his objects explicitly. This can be done by calling getDevice, followed by removeDevice and then deleting the object in a manner appropriate for the implementation. For a detailed discussion of this see carma::canbus::Device.

Parameters

api	API Id of device pointer to retrieve.
node	Node Id of device pointer to retrieve.

Exceptions

carma::canbus::BadParameterException if device doesn't exist in Master.

See Also: carma::canbus::Device

void carma::canbus::Master::run ( )

Run the Master.

This routine is responsible for kicking off the whole shabang. It blocks on dependent threads permanently. It is included to allow a developer a degree of flexibility when designing a CAN application. If the user is developing an application with a CORBA control mechanism, it is likely their main application will block on running the orb. In this case the developer will want to call this Master::run method in a separately spawned thread. However, if no CORBA control mechanism is used, main can call this routine which blocks indefinitely.

Exceptions

carma::canbus::PthreadFailException upon failure to properly startup or initialize pthread dependent resources.

virtual void carma::canbus::Master::runReadThread ( )

protectedvirtual

Thread to read and process incoming CAN messages.

This is known as the main thread because it is the essential thread in the framework.

void carma::canbus::Master::runTimerThread ( )

protected

Timer thread.

The timer thread is responsible for performing time critical functions. These include updating the devices status, processing simulated messages if needed (i.e. the device is OFFLINE) and sending time syncs.

virtual void carma::canbus::Master::setTime ( )

protectedvirtual

Send a time sync message.

This routine is responsible for sending a time sync message to the bus(ses). It is declared virtual to allow different implementations to send differently formatted time syncs. The default implementation is as follows... CAN Byte 0 and 1 - Modified Julian Day as an unsigned short integer. CAN Byte 2 - 5 - Time of Day in billionths of a day as an unsigned long integer. Time is retrieved from the system time and this routine is called every ten seconds. The default implementation sends a time sync to all busses. Do not use this if you intend on tying Bus 0 to Bus 1 as this will (eventually) cause an error state on the bus.

Exceptions

carma::canbus::TxBufferFullException	if unable to post message due to a full transmit buffer. This is likely due to a disconnected bus. Message is dropped.
carma::util::ErrorException	if invalid busId, or driver failure. This error generally signals a programming error, or a misconfigured system.

See Also: CanIo::postMessage(idType id, vector<byteType> &data)

void carma::canbus::Master::softwareReset ( )

protected

Send a software reset command to all modules.

This method sends a global reset CAN message to all modules. It differs from the CanDio reset which issues a hardware reset.

Exceptions

carma::canbus::TxBufferFullException	if unable to post message due to a full transmit buffer. This is likely due to a disconnected bus. Message is dropped.
carma::util::ErrorException	if invalid busId, or driver failure. This error generally signals a programming error, or a misconfigured system.

void carma::canbus::Master::stop ( )

Stop running internal Master threads.

This routine is meant to help derivative Master classes to shutdown Master cleanly. It should be called first and foremost in the derivative classes destructor to prevent Master from calling any virtual functions (such as Master::updateStatus) which have already been destructed.

static void* carma::canbus::Master::timerThreadEntry ( void * arg )

staticprotected

Entry point for timer thread.

Thread entry points are needed to allow C-style calls to pthreads and are thus static to provide C linkage. They are placed here (directly in the class) as opposed to the global namespace (using an extern "C" linkage specifier) so that we can utilize the visibility rules provided by C++.

void carma::canbus::Master::updateDevicesStates ( )

protected

Update the devices states.

Each device has an associated state that must be updated from the master. The states, STARTING, ONLINE and OFFLINE are updated based on the last time we have received a message from the Device.

virtual void carma::canbus::Master::updateStatus ( )

protectedpure virtual

Update the status of the master.

This routine is intended to be overloaded by a user implementing a master subclass. It is included to allow the user to retrieve information from the bus(ses) and the Master via getBusStatus() and other Master get methods and then place the information into the monitor stream which will be implementation defined. It is automatically called once every half second frame. If a user doesn't wish to place any bus specific or master status info into the monitor stream, this routine must be no-oped.

See Also: CanIo::getBusStatus

Implemented in carma::antenna::ovro::OvroMaster, carma::downconverter::SldcMaster, carma::antenna::bima::IFCanMaster, carma::downconverter::WbdcMaster, carma::loberotator::LoberotatorMaster, and carma::clock::ClockMaster.

The documentation for this class was generated from the following file:

carma/canbus/Master.h

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
