carma::services::ConformableQuantity Class Reference

The ConformableQuantity class can represent any quantity that can be expressed in many units. More...

#include <carma/services/ConformableQuantity.h>

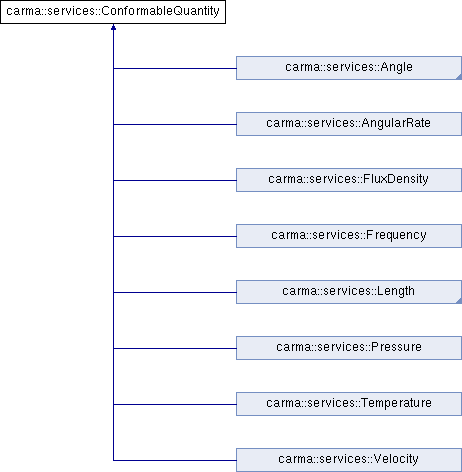

Inheritance diagram for carma::services::ConformableQuantity:

Public Member Functions
	ConformableQuantity (double value, const std::string &units)
	Construct an ConformableQuantity given a value and units. More...
virtual double	convert (const std::string &convertTo) const
	Converts this quantity to any conformable units. More...
virtual std::string	getUnits () const
double	getValue () const
virtual const ConformableQuantity	operator+ (const ConformableQuantity &quantity) const
	Add two ConformableQuantities. More...
virtual ConformableQuantity &	operator+= (const ConformableQuantity &quantity)
	Add ConformableQuantity to itself. More...
virtual const ConformableQuantity	operator- (const ConformableQuantity &quantity) const
	Subtract two ConformableQuantities. More...
virtual ConformableQuantity &	operator-= (const ConformableQuantity &quantity)
	Subtract ConformableQuantity from itself. More...
virtual void	reset (double value, const std::string &units)
	Reset method to change value and/or units. More...
virtual	~ConformableQuantity ()
	Destructor. More...

Protected Attributes
Units	u_
	Used for converting between units. More...

Detailed Description

The ConformableQuantity class can represent any quantity that can be expressed in many units.

It is meant to be subclassed to represent specific physical quantities like angle and distance. It uses the carma::services::Units class internally to handle conversion of any angular unit to any other angular unit. Binary operations + and - are supported, as is the stream operation <<.

Todo:

(low priority) overload other operators

Definition at line 34 of file ConformableQuantity.h.

Constructor & Destructor Documentation

carma::services::ConformableQuantity::ConformableQuantity ( double  value, const std::string &  units  )

explicit

Construct an ConformableQuantity given a value and units.

Parameters

value	The value of this quantity
units	The units of the value.

virtual carma::services::ConformableQuantity::~ConformableQuantity ( )

virtual

Destructor.

Member Function Documentation

virtual double carma::services::ConformableQuantity::convert ( const std::string &  convertTo ) const

virtual

Converts this quantity to any conformable units.

This method is virtual in case subclasses need to munge the input variable for conformability. (e.g. HourAngle)

Parameters

convertTo

A string representing the units to convert to.

Returns

the value of this ConformableQuantity converted to the desired units

Exceptions

ConformabilityException

Reimplemented in carma::services::HourAngle.

virtual std::string carma::services::ConformableQuantity::getUnits ( ) const

virtual

Returns

the units of this ConformableQuantity when it was instantiated.

Reimplemented in carma::services::HourAngle.

double carma::services::ConformableQuantity::getValue

(

)

const

Returns

the value of this ConformableQuantity in the units when was instantiated.

Definition at line 66 of file ConformableQuantity.h.

virtual const ConformableQuantity carma::services::ConformableQuantity::operator+ ( const ConformableQuantity &  quantity ) const

virtual

Add two ConformableQuantities.

Returns

an ConformableQuantity with radian units that is the sum of the two ConformableQuantities modulo 2PI.

Exceptions

ConformabilityException

virtual ConformableQuantity& carma::services::ConformableQuantity::operator+= ( const ConformableQuantity &  quantity )

virtual

Add ConformableQuantity to itself.

Returns

a ConformableQuantity in same units

Exceptions

ConformabilityException

virtual const ConformableQuantity carma::services::ConformableQuantity::operator- ( const ConformableQuantity &  quantity ) const

virtual

Subtract two ConformableQuantities.

Returns

an ConformableQuantity with radian units that is the sum of the two quantitys modulo 2PI.

Exceptions

ConformabilityException

virtual ConformableQuantity& carma::services::ConformableQuantity::operator-= ( const ConformableQuantity &  quantity )

virtual

Subtract ConformableQuantity from itself.

Returns

a ConformableQuantity in same units

Exceptions

ConformabilityException

virtual void carma::services::ConformableQuantity::reset ( double  value, const std::string &  units  )

virtual

Reset method to change value and/or units.

This method is needed meant so that HourAngle can reassign "hours" to be "circle (hours/day)" so that Units will work transparently. note: no longer protected since lack of default constructor and unit specification insures conformability

Parameters

value	The value of this quantity
units	The units of the value.

Reimplemented in carma::services::HourAngle, and carma::services::Temperature.

Member Data Documentation

Units carma::services::ConformableQuantity::u_

protected

Used for converting between units.

Definition at line 128 of file ConformableQuantity.h.

---

The documentation for this class was generated from the following file:

• carma/services/ConformableQuantity.h
