manticore::Dust Class Reference

Dust model. More...

#include <Dust.h>

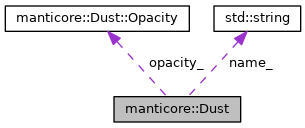

Collaboration diagram for manticore::Dust:

Classes
struct	Opacity
	Fixed power-law opacity parameters. More...

Public Member Functions
	Dust (const std::string &model="OH5", double rho=100.0)
	Default constructor. More...
	Dust (double nu0, double kappa0, double beta)
	Fixed power-law constructor. More...
	~Dust ()
	Destructor. More...
double	kappa (double nu, gsl_interp_accel *acc=nullptr) const
	Gas/dust extinction opacity (cm^2/g). More...
const std::string &	name () const noexcept
	Current model name. More...
double	rho () const noexcept
	Current model gas-to-dust ratio. More...
void	setModel (const std::string &model, double rho=100.0)
	Set dust properties model (table-based). More...
void	setModel (double nu0, double kappa0, double beta)
	Set dust properties model (fixed power law). More...

Protected Attributes
bool	ln_ = false
	Whether to interpolate in log space. More...
std::string	name_
	Current model name. More...
Opacity	opacity_ = {0.0, 0.0, 0.0}
	Fixed power law. More...
double	rho_
	Current model gas-to-dust ratio. More...
gsl_spline *	spline_ = nullptr
	Table interpolator. More...

Detailed Description

Dust model.

This class supports both arbitrary, table-based opacity models as well as fixed power laws. The underlying model is set at construction but can be changed during use; cf. setModel(). Table-based models are evaluated via cubic spline interpolation of the logarithm of the opacity.

Note

Once initialized, a model may be safely shared among multiple threads.

Definition at line 28 of file Dust.h.

Constructor & Destructor Documentation

Dust() [1/2]

manticore::Dust::Dust ( const std::string &  model = "OH5", double  rho = 100.0  )

inline

Default constructor.

Parameters

[in]	model	Dust model name.
[in]	rho	Gas-to-dust ratio.

Definition at line 33 of file Dust.h.

References rho(), and setModel().

~Dust()

manticore::Dust::~Dust ( )

inline

Destructor.

Definition at line 37 of file Dust.h.

References spline_.

Dust() [2/2]

manticore::Dust::Dust ( double  nu0, double  kappa0, double  beta  )

inline

Fixed power-law constructor.

Parameters

[in]	nu0	Fiducial frequency (Hz).
[in]	kappa0	Fiducial opacity (cm^2/g @ g/d = 100).
[in]	beta	Opacity scaling.

Definition at line 45 of file Dust.h.

References setModel().

Member Function Documentation

kappa()

double manticore::Dust::kappa	(	double	nu,
		gsl_interp_accel *	acc = nullptr
	)		const

Gas/dust extinction opacity (cm^2/g).

Parameters

[in]	nu	Observation frequency (Hz).
[in]	acc	Interpolation lookup accelerator.

The opacity value is interpolated from tabulated values assuming a fixed power law dependence between adjacent points. If nu lies woutside the range of the table, the corresponding end value is extrapolated.

Returns

Dust+gas extinction opacity at the given wavelength.

Definition at line 745 of file Dust.cc.

References manticore::Dust::Opacity::beta, manticore::Dust::Opacity::inu0, manticore::Dust::Opacity::kappa0, ln_, opacity_, and spline_.

name()

const std::string& manticore::Dust::name ( ) const

inlinenoexcept

Current model name.

Definition at line 65 of file Dust.h.

References name_.

Referenced by setModel(), and manticore::solve().

rho()

double manticore::Dust::rho ( ) const

inlinenoexcept

Current model gas-to-dust ratio.

Definition at line 68 of file Dust.h.

References rho_.

Referenced by Dust(), setModel(), and manticore::solve().

setModel() [1/2]

void manticore::Dust::setModel	(	const std::string &	model,
		double	rho = 100.0
	)

Set dust properties model (table-based).

Parameters

[in]	model	Dust model name.
[in]	rho	Gas-to-dust ratio.

Definition at line 670 of file Dust.cc.

References std::string::c_str(), std::string::find(), manticore::initSpline(), ln_, std::max(), std::min(), manticore::dust::modelMap, MU_ERROR, name_, opacity_, rho(), rho_, and spline_.

Referenced by manticore::ccfCheck(), and Dust().

setModel() [2/2]

void manticore::Dust::setModel	(	double	nu0,
		double	kappa0,
		double	beta
	)

Set dust properties model (fixed power law).

Parameters

[in]	nu0	Fiducial frequency (Hz).
[in]	kappa0	Fiducial opacity (cm^2/g @ g/d = 100).
[in]	beta	Opacity scaling.

Definition at line 718 of file Dust.cc.

References ln_, name(), name_, opacity_, rho_, and spline_.

Member Data Documentation

ln_

bool manticore::Dust::ln_ = false

protected

Whether to interpolate in log space.

Definition at line 87 of file Dust.h.

Referenced by kappa(), and setModel().

name_

std::string manticore::Dust::name_

protected

Current model name.

Definition at line 75 of file Dust.h.

Referenced by name(), and setModel().

opacity_

Opacity manticore::Dust::opacity_ = {0.0, 0.0, 0.0}

protected

Fixed power law.

Definition at line 81 of file Dust.h.

Referenced by kappa(), and setModel().

rho_

double manticore::Dust::rho_

protected

Current model gas-to-dust ratio.

Definition at line 78 of file Dust.h.

Referenced by rho(), and setModel().

spline_

gsl_spline* manticore::Dust::spline_ = nullptr

protected

Table interpolator.

Definition at line 84 of file Dust.h.

Referenced by kappa(), setModel(), and ~Dust().

---

The documentation for this class was generated from the following files:

• Dust.h
• Dust.cc
