Base Antenna IF CAN module device class. More...

#include <carma/antenna/common/AntennaIF.h>

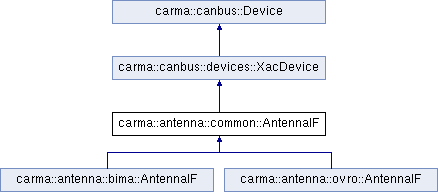

Inheritance diagram for carma::antenna::common::AntennaIF:

Public Member Functions
	AntennaIF (carma::canbus::nodeType node, carma::canbus::CanOutput &io, carma::monitor::StateMonitorPointEnum &state, carma::monitor::AntennaIF &ifMon, carma::monitor::Xac &xacMon)
	Constructor. More...

carma::canbus::MsgBriefMap	getHalfSecMonitors () const
	Retrieve a map of this devices half second monitor points. More...

carma::canbus::MsgBriefMap	getSlowMonitors () const
	Return a map of this devices slow monitor points. More...

void	processMsg (carma::canbus::msgType mid, carma::canbus::DataVector &data, bool sim)
	Process a CAN message addressed from the AntennaIF module. More...

void	queryTotalPower ()
	Query Total Power. More...

void	selectBand (unsigned short band)
	Select band Select a particular band as an input to the PAM, by setting the position of the IF switch. More...

void	setIFlevel (float pow)
	Set IF level. More...

void	setIFtotalAttenuation (float atten)
	Set IF total attenuation. More...

void	setInputIFattenuator (float inputAtten)
	Set input IF attenuator. More...

void	setOutputIFattenuator (float outputAtten)
	Set output IF attenuator. More...

void	setOutputPowerToPreset ()
	Set output power to preset. More...

virtual void	simTotalPower (unsigned int nsamps)
	Internally create simulated total power vector. More...

carma::canbus::Message	simulateMsg (carma::canbus::msgType mid)
	Produce a simulated CAN message for a given msgType. More...

	~AntennaIF ()
	Destructor. More...

Public Member Functions inherited from carma::canbus::devices::XacDevice
bool	isOnline ()
	Is Device ONLINE? More...

void	reset ()
	Reset the can module via CORBA using Device::softReset() method. More...

virtual void	setState (deviceStateType state)
	Set the state of the device. More...

void	startChannelOneFastSampling (unsigned short fastItem)
	Start fast sampling on channel one with the requested data item. More...

void	startChannelTwoFastSampling (unsigned short fastItem)
	Start fast sampling on channel two with the requested data item. More...

void	stopChannelOneFastSampling ()
	Stop fast sampling on channel one. More...

void	stopChannelTwoFastSampling ()
	Stop fast sampling on channel two. More...

	XacDevice (carma::canbus::apiType api, carma::canbus::nodeType node, carma::canbus::CanOutput &canOutput)
	Constructor. More...

virtual	~XacDevice ()
	Destructor. More...

Public Member Functions inherited from carma::canbus::Device
carma::canbus::Message	createDummyMsg () const
	Create a dummy CAN message. More...

carma::canbus::Message	createMsgToAllNodes (msgType messageId) const
	Create a CAN message addressed to all nodes of this type. More...

carma::canbus::Message	createMsgToHost (msgType messageId) const
	Create a CAN message addressed from this Device to the host. More...

carma::canbus::Message	createMsgToNode (msgType messageId) const
	Create a CAN message addressed to this device from the host. More...

	Device (apiType api, nodeType node, CanOutput &io)
	Device constructor. More...

apiType	getApi () const
	Return api code of device. More...

char	getApiVersion () const
	Get API Version of this Device. More...

boardType	getBoardType () const
	Return board type id of device. More...

busIdType	getBusId () const
	Return bus Id that node resides on. More...

virtual MsgIdInfoMap	getControls () const
	Return a map of devices controls. More...

keyType	getKey () const
	Create a key unique to this api and node. More...

double	getLastRxTime () const
	Get Last RX Time for device. More...

unsigned int	getNlatePackets () const
	Get number of late packets. More...

nodeType	getNode () const
	Return node location code of device. More...

serialNumberType	getSerialNumber () const
	Return serial number of device. More...

deviceStateType	getState () const
	Status access routine. More...

virtual void	processMsg (msgType messageId, std::vector< byteType > &data, bool sim)=0
	Process a CAN message. More...

void	reset ()
	Perform a software reset of module. More...

void	setBoardType (boardType bt)
	Set board type of device. More...

void	setBusId (busIdType busId)
	Set busId of device. More...

virtual void	setLastRxTime (double rxMjd)
	Set latest rx time. More...

void	setSerialNumber (serialNumberType sn)
	Set serial number of device. More...

void	startChannelOneFastSampling (unsigned short fastItem)
	Start fast sampling the specified data item on channel 1. More...

void	startChannelTwoFastSampling (unsigned short fastItem)
	Start fast sampling the specified data item on channel 2. More...

void	stopChannelOneFastSampling ()
	Stop fast sampling on channel 1 This routine will stop fast sampling on channel 1 regardless of whether this node is fast sampling the channel or not! In other words the request goes out globally. More...

void	stopChannelTwoFastSampling ()
	Stop fast sampling on channel 2 This routine will stop fast sampling on channel 2 regardless of whether this node is fast sampling the channel or not! In other words the request goes out globally. More...

virtual	~Device ()
	Device destructor. More...

Static Public Attributes
static const carma::canbus::msgType	IF_LEFT_POL_NODE_ID = 1

static const carma::canbus::msgType	IF_RIGHT_POL_NODE_ID = 2

Static Public Attributes inherited from carma::canbus::devices::XacDevice
static const carma::canbus::msgType	SYSTEM_MONITOR_PACKET_1 = 0x120

static const carma::canbus::msgType	SYSTEM_MONITOR_PACKET_2 = 0x121

static const carma::canbus::msgType	SYSTEM_MONITOR_PACKET_3 = 0x122

static const carma::canbus::msgType	SYSTEM_MONITOR_PACKET_4 = 0x123

static const carma::canbus::msgType	SYSTEM_MONITOR_PACKET_5 = 0x124

Protected Member Functions
virtual void	blankingFrameHook1 (float ifoutTotPower, float pamTemp)

virtual void	blankingFrameHook2 (float attenSet, unsigned char pamStat, unsigned char ifSwitchStat, unsigned char laserStat, unsigned char nErrors)

virtual void	blankingFrameHook3 (float laserOpticalPow, float laserTemp)

virtual void	blankingFrameHook4 (float inputAttenSet, float outputAttenSet)

virtual void	processFastChannel1Packet (carma::canbus::DataVector &data)=0

virtual void	processFastChannel2Packet (carma::canbus::DataVector &data)=0

virtual void	processFastTotalPowerPacket (carma::canbus::DataVector &data)=0

virtual void	processPAMStatusOnChange (carma::canbus::DataVector &data)=0

virtual void	processSwitchStatusOnChange (carma::canbus::DataVector &data)=0

virtual void	processTotalPowerResponse (carma::canbus::DataVector &data)=0

void	updateFrameData ()
	Update device or monitor data on frame timescale... More...

Protected Member Functions inherited from carma::canbus::devices::XacDevice
virtual void	initialize ()
	Initialization hook. More...

void	processSystemMonitorPacket (carma::canbus::msgType mid, carma::canbus::DataVector &data, carma::monitor::Xac &xac)
	Process a system monitor packet. More...

void	processSystemMonitorPacket1 (carma::canbus::DataVector &data, carma::monitor::Xac &xac)
	Process System Monitor Packet 1 This routine processes standard system monitor packet 1 and places the data into the input Xac reference. More...

void	processSystemMonitorPacket2 (carma::canbus::DataVector &data, carma::monitor::Xac &xac)
	Process System Monitor Packet 2. More...

void	processSystemMonitorPacket3 (carma::canbus::DataVector &data, carma::monitor::Xac &xac)
	Process System Monitor Packet 3. More...

void	processSystemMonitorPacket4 (carma::canbus::DataVector &data, carma::monitor::Xac &xac)
	Process System Monitor Packet 4. More...

void	processSystemMonitorPacket5 (carma::canbus::DataVector &data, carma::monitor::Xac &xac)
	Process System Monitor Packet 5. More...

carma::canbus::Message	simSystemMonitorPacket (carma::canbus::msgType mid)
	Simulate system monitor packet. More...

carma::canbus::Message	simSystemMonitorPacket1 ()
	Simulate System Monitor Packet 1. More...

carma::canbus::Message	simSystemMonitorPacket2 ()
	Simulate System Monitor Packet 2. More...

carma::canbus::Message	simSystemMonitorPacket3 ()
	Simulate System Monitor Packet 3. More...

carma::canbus::Message	simSystemMonitorPacket4 ()
	Simulate System Monitor Packet 4. More...

carma::canbus::Message	simSystemMonitorPacket5 ()
	Simulate System Monitor Packet 5. More...

Protected Member Functions inherited from carma::canbus::Device
void	incrementLatePacketCount ()
	Increment the late packet count by 1. More...

bool	isPacketLate (double window=100.0)
	Determine if the last packet sent from this device was late. More...

void	resetLatePacketCount ()
	Reset the late packet count to 0. More...

void	setApiVersion (char api)
	Set API Version. More...

Additional Inherited Members
Static Public Member Functions inherited from carma::canbus::Device
static keyType	createKey (apiType api, nodeType node)

Static Protected Member Functions inherited from carma::canbus::devices::XacDevice
static bool	isSystemMonitorPacket (carma::canbus::msgType)
	Check that input message type is a system monitor packet. More...

Protected Attributes inherited from carma::canbus::Device
const apiType	api_

CanOutput &	io_
	Reference to CanOutput object. More...

const keyType	key_

const nodeType	node_

Static Protected Attributes inherited from carma::canbus::Device
static const msgType	RESET = 0x0000
	Software reset message id. More...

static const msgType	START_CHANNEL_1_FAST_SAMPLING = 0x0004
	Begin channel 1 fast sampling message id. More...

static const msgType	START_CHANNEL_2_FAST_SAMPLING = 0x0005
	Begin channel 2 fast sampling message id. More...

static const msgType	STOP_CHANNEL_1_FAST_SAMPLING = 0x0002
	Stop channel 1 fast sampling message id. More...

static const msgType	STOP_CHANNEL_2_FAST_SAMPLING = 0x0003

Detailed Description

Base Antenna IF CAN module device class.

All antenna types use the same physical AntennaIF CAN module, also known as, the PreAmplifier Modules (PAM). This base class handles the majority of message processing and control functionality while providing hooks for the BIMA, OVRO and SZA specific versions.

Definition at line 46 of file AntennaIF.h.

Constructor & Destructor Documentation

carma::antenna::common::AntennaIF::AntennaIF	(	carma::canbus::nodeType	node,
		carma::canbus::CanOutput &	io,
		carma::monitor::StateMonitorPointEnum &	state,
		carma::monitor::AntennaIF &	ifMon,
		carma::monitor::Xac &	xacMon
	)

Constructor.

Parameters

node	Location id of this instance (node location id).
io	Reference to CanOutput class.
ifMon	Reference to AntennaIF monitor system class.
xacMon	Reference to Xac monitor system class.

carma::antenna::common::AntennaIF::~AntennaIF ( )

Destructor.

Member Function Documentation

carma::canbus::MsgBriefMap carma::antenna::common::AntennaIF::getHalfSecMonitors ( ) const

virtual

Retrieve a map of this devices half second monitor points.

The monitor points returned from this routine will be simulated if the device is in the OFFLINE state.

Returns: Map with descriptions of the device's half second monitor points keyed by message id.

Implements carma::canbus::Device.

carma::canbus::MsgBriefMap carma::antenna::common::AntennaIF::getSlowMonitors ( ) const

virtual

Return a map of this devices slow monitor points.

These monitor points will be simulated every 5 seconds if the device is in the OFFLINE state.

Returns: Map with descriptions of the device's slow (5 second) monitor points keyed by message id.

Reimplemented from carma::canbus::devices::XacDevice.

void carma::antenna::common::AntennaIF::processMsg	(	carma::canbus::msgType	mid,
		carma::canbus::DataVector &	data,
		bool	sim
	)

Process a CAN message addressed from the AntennaIF module.

This routine is responsible for processing all CAN messages addressed to this device. It is a callback routine that gets called by the carma::canbus::Master class.

Parameters

mid	10bit message id (carma::canbus::msgType).
data	Reference to the byte vector containing the raw data.
sim	True if message is simulated, false normally.

See Also: carma::canbus::Device::processMsg

void carma::antenna::common::AntennaIF::queryTotalPower ( )

Query Total Power.

Query value read from total power detector in PAM.

void carma::antenna::common::AntennaIF::selectBand ( unsigned short band )

Select band Select a particular band as an input to the PAM, by setting the position of the IF switch.

Parameters

band	IF switch position 1,2,3 or 4.

void carma::antenna::common::AntennaIF::setIFlevel ( float pow )

Set IF level.

Set the IF attenuator so that the IF total power detector returns the closest value to the input parameter. Current PAM will only be able to produce about +8dBm.

Parameters

pow	Target IF total power, in mW.

void carma::antenna::common::AntennaIF::setIFtotalAttenuation ( float atten )

Set IF total attenuation.

Set the IF attenuator to a nominal value.

Parameters

atten Attenuator setting, 0-63 dB in 0.5 dB steps.

void carma::antenna::common::AntennaIF::setInputIFattenuator ( float inputAtten )

Set input IF attenuator.

Parameters

inputAtten Input attenuator setting, 0-31.5dB in 0.5 db steps.

void carma::antenna::common::AntennaIF::setOutputIFattenuator ( float outputAtten )

Set output IF attenuator.

Parameters

outputAtten Output attenuator setting, 0-31.5 dB in 0.5 db steps.

void carma::antenna::common::AntennaIF::setOutputPowerToPreset ( )

Set output power to preset.

Go to preset IF level. Current preset IF level is 0 dBm. Thus it is functionally equivaletn to setIFlevel command with a power level of 1.0 mW.

virtual void carma::antenna::common::AntennaIF::simTotalPower ( unsigned int nsamps )

virtual

Internally create simulated total power vector.

Default implementation is a no-op.

Parameters

nsamps Size of simulated total power vector.

Reimplemented in carma::antenna::ovro::AntennaIF.

carma::canbus::Message carma::antenna::common::AntennaIF::simulateMsg ( carma::canbus::msgType mid )

virtual

Produce a simulated CAN message for a given msgType.

This routine creates a Message with simulated data for an input message id. The returned message is automatically placed in the CAN message queue for retrieval and processing by the Master class. It thus can be used to test the processMsg method above as well as to place real (albeit simulated) data into the monitor stream.

Parameters

mid	10 bit message id (carma::canbus::msgType).

Implements carma::canbus::Device.

void carma::antenna::common::AntennaIF::updateFrameData ( )

protectedvirtual

Update device or monitor data on frame timescale...

This routine is called every half second for every device registered with a carma::canbus::Master derivative. The default implementation does nothing but a user should overload it to guarantee that certain monitor points are updated every half second regardless of CAN activity. A good example of this is a monitor point representing Device state (ONLINE, OFFLINE, etc). We don't want a monitor point representing this state to be persistent because we want the monitor system to invalidate it if the application quits or data is otherwise not moving through the system. Thus we need to explicitly set the monitor point every half second. There are probably many monitor points where the same mechanism is needed. See the Carma Monitor System for more info or carma::monitor.

Reimplemented from carma::canbus::Device.

The documentation for this class was generated from the following file:

carma/antenna/common/AntennaIF.h

Public Member Functions

Static Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
