Common base class for managing connections to DOs. More...

#include <carma/control/RemoteObjHandleT.h>

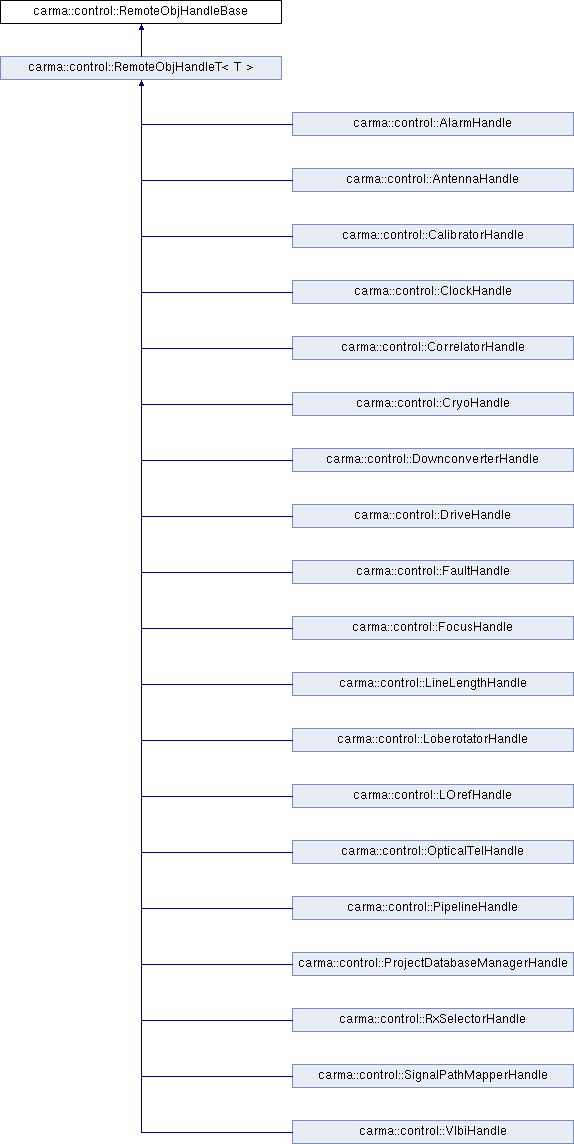

Inheritance diagram for carma::control::RemoteObjHandleBase:

Public Member Functions
bool	attemptToReconnectIfNeeded ()
	Try reconnect to the DO if needed. More...

::std::string	doName () const
	get the DO name More...

void	forceFullReconnect ()
	Force a full re-lookup of the DO by name. More...

bool	isObjReachable ()
	If state is 'not reachable' and monitor system is current, tries to reconnect. More...

bool	isObjReachable (bool logIfNotReachable)

	RemoteObjHandleBase (const ::std::string &doName, monitor::MonitorPointBool mpReachable, const monitor::MonitorSubsystem subsystem, monitor::MonitorSystem *system, bool defaultLogIfNotReachable, bool defaultLogSentCommands)
	Constructor. More...

virtual	~RemoteObjHandleBase ()
	Destructor. More...

Protected Member Functions
bool	getDefaultLogIfNotReachable () const

bool	getDefaultLogSentCommands () const

void	invalidateObjRef ()

void	invalidateObjRefIfNeededForCaught ()

void	logException (const ::std::string &callString, const ::std::string &exString) const

void	logSentCommand (const ::std::string &callString, const double mjd) const

void	logSentCommand (const ::std::string &callString, const double mjd, const ::std::string &subDoName) const

void	logSentCommandIfNeeded (const ::std::string &callString, const double mjd) const

void	logSentCommandIfNeeded (const ::std::string &callString, const double mjd, const ::std::string &subDoName) const

void	markObjRefValid ()

void	processException (const ::std::string &callString, const ::CORBA::Exception &corbaException)

virtual bool	resolveObjRef ()=0

void	throwBadRemoteObjAccess () const

void	throwIfObjRefIsNotValid () const

Detailed Description

Common base class for managing connections to DOs.

Definition at line 39 of file RemoteObjHandleT.h.

Constructor & Destructor Documentation

carma::control::RemoteObjHandleBase::RemoteObjHandleBase	(	const ::std::string &	doName,
		monitor::MonitorPointBool *	mpReachable,
		const monitor::MonitorSubsystem *	subsystem,
		monitor::MonitorSystem *	system,
		bool	defaultLogIfNotReachable,
		bool	defaultLogSentCommands
	)

Constructor.

Parameters

doName	name of the Direct Object that is the object of affection of this handle
mpReachable	a monitor point for reachability of this DO Must be part of a Control.SubarrayX.Reachable monitor point subsystem that is routinely written by the control system. This MP is both read and write.
subsystem	The monitor subsystem, often running on a remote machine, that is used to determine whether to try and remake the connect on the next IO attempt. Usually, if the monitor subsystem returns false from its isCurrent() method, no attempt is made to remake the connection (covers the use case of a disconnected machine, like an antenna during a move).
system	A pointer to a monitor system which is used to do a readNewest() to update both the isCurrent state of the subsystem and the reachable MP.
defaultLogIfNotReachable	Controls logging if the DO is not reachable.
defaultLogSentCommands	controls logging of commands

virtual carma::control::RemoteObjHandleBase::~RemoteObjHandleBase ( )

virtual

Destructor.

Member Function Documentation

bool carma::control::RemoteObjHandleBase::attemptToReconnectIfNeeded ( )

Try reconnect to the DO if needed.

The minimum work necessary to reestablish a broken connection will be done. Hence nothing will be done if the connection did not have a problem the last time it was used. Returns true if a connection is established (or was previously established) and false if it could not connect. The subsystem monitor system is not checked.

std::string carma::control::RemoteObjHandleBase::doName ( ) const

get the DO name

Definition at line 219 of file RemoteObjHandleT.h.

void carma::control::RemoteObjHandleBase::forceFullReconnect ( )

Force a full re-lookup of the DO by name.

bool carma::control::RemoteObjHandleBase::isObjReachable ( )

If state is 'not reachable' and monitor system is current, tries to reconnect.

The documentation for this class was generated from the following file:

carma/control/RemoteObjHandleT.h
