Monitor system base class. More...

#include <carma/monitor/MonitorSystem.h>

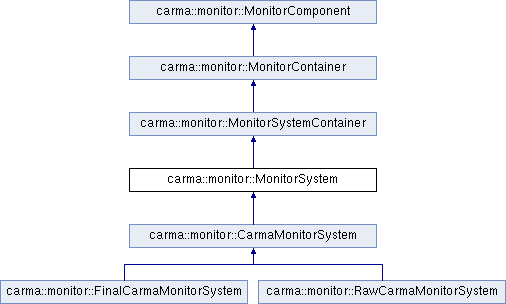

Inheritance diagram for carma::monitor::MonitorSystem:

Public Member Functions
std::string	addTransportTimesAsString (std::ostringstream o) const
	Dumps transport statistics as a table, with write delays, and transport/write times printed out as doubles, with fixed precision. More...

AlarmSubsystem &	alarm () const
	Get reference to the alarm subsystem. More...

AntennaCommon &	antennaCommon (int index) const
	Get reference to an AntennaCommon container in an ovro or bima or sza subsystem. More...

AstroSubsystem &	astro () const
	Get reference to an Astro container. More...

BimaSubsystem &	bima (int index) const
	Get reference to a bima antenna subsystem. More...

C3gDataflowSubsystem &	c3gDataflow (const int index) const

C3gMax23PipelineSubsystem &	c3gMax23Pipeline () const
	Get reference to carma 23 station 3g correlator pipeline. More...

C3gMax8PipelineSubsystem &	c3gMax8Pipeline () const
	Get reference to carma 8 station 3g correlator pipeline. More...

C3gRemapperSubsystem &	c3gRemapper (const int index) const

Carma3GBandSubsystem &	carma3gBand (const int index) const
	Get reference to a CARMA3G correlator band subsystem. More...

CarmaSlcBandSubsystem &	carmaSlcBand (const int index) const
	Get reference to a spectral line correlator band subsystem. More...

CentralIfSubsystem &	centralIf () const
	Get reference to the centalIF subsystem. More...

ControlSubsystem &	control () const
	Get reference to the control subsystem. More...

DataflowSubsystem &	dataflow () const
	Get reference to the control subsystem. More...

DelayEngineSubsystem &	delay () const
	Get reference to the delay engine subsystem. More...

FaultSubsystem &	fault () const
	Get reference to fault subsystem. More...

size_t	getActualMonitorSystemSize () const
	Capacity usage related method - returns actual size used in bytes across all subsystems. More...

long	getActualNumMonitorPoints () const
	Capacity usage related method - returns actual # of monitor points across all subsystems. More...

long	getActualNumMonitorPoints (const MonitorValueType type) const
	Capacity usage related method - returns actual # of monitor points of type. More...

long	getActualNumMonitorSamples () const
	Capacity related method - returns actual # of monitor samples across all subsystems. More...

long	getActualNumMonitorSamples (MonitorValueType type) const
	Capacity related method - returns actual # of monitor samples of type <pretype across all subsystems. More...

long	getActualNumMultiSampleMonitorPoints () const
	Capacity usage related method - returns actual # of monitor points with multiple samples across all subsystems. More...

long	getActualNumSubsystems () const
	Capacity usage related method - returns actual number of subsystems allocated. More...

size_t	getAllocatedMonitorSystemSize () const
	Capacity usage related method - returns total size allocated in bytes across all subsystems. More...

long	getAllocatedNumMonitorPoints () const
	Capacity usage related method - returns allocated monitor point capacity across all subsystems. More...

long	getAllocatedNumMonitorSamples () const
	Capacity related method - returns total monitor sample capacity across all subsystems. More...

long	getAllocatedNumSubsystems () const
	Capacity usage related method - returns total number of subsystems allocated. More...

int	getCarma3gBandCount () const
	Get the number of carma3g bands. More...

int	getCarmaSlcBandCount () const
	Get the number of carmaSlcBands. More...

MonitorSubsystem &	getChildSubsystem (int index) const
	Get underlying subsystem by index. More...

double	getCollatorWriteDelay () const
	Delay offset (in seconds) from the corrected UTC half-second when the System frame is written to IPQ on the ACC. More...

double	getCollatorWriteTime () const
	MJD when this system frame was actually written to the IPQ. More...

size_t	getCountedMonitorSystemSize () const
	Capacity usage related method - returns total size counted, in bytes across all subsystems. More...

long	getCountedNumMonitorPoints () const
	Capacity usage related method - returns number of monitor points present across all subsystems - number is obtained by iterating over all monitor points, so method is likely to be expensive. More...

long	getCountedNumMonitorSamples () const
	Capacity related method - returns number of monitor samples counted across all subsystems. More...

double	getFinalWriteTime () const
	Gets MJD when this system frame was actually read by the fault system. More...

virtual int	getFrameCount () const
	Get the frame count for the last read frame. More...

size_t	getMaxMonitorSystemSize () const
	Capacity usage related method - returns total size allocated in bytes across all subsystems. More...

long	getMaxNumMonitorPoints () const
	Capacity usage related method - returns total allocated monitor point capacity across all subsystems. More...

long	getMaxNumMonitorSamples () const
	Capacity related method - returns total allocated monitor sample capacity across all subsystems. More...

long	getNumValidSubsystems () const
	Returns number of valid subsystems. More...

double	getRawReadTime () const
	Gets MJD when this system frame was actually read by the fault system. More...

SystemFrameBuffer &	getSystemFrameBuffer () const
	Get the underlying SystemFrameBuffer. More...

size_t	getTotalMonitorSystemSize () const
	Capacity related method - returns total size available in bytes across all subsystems. More...

long	getTotalNumMonitorPoints () const
	Capacity related method - returns total monitor point capacity across all subsystems. More...

long	getTotalNumMonitorSamples () const
	Capacity related method - returns total monitor sample capacity across all subsystems. More...

long	getTotalNumSubsystems () const
	Capacity related method - returns total subsystem capacity. More...

int	getWbcBandCount () const
	Get the number of wbcBands. More...

ImrSubsystem &	imr () const
	Get reference to imr subsystem. More...

bool	isCurrent () const
	Returns true if the monitor subsystem contains data that is current. More...

LineLengthSubsystem &	lineLength () const
	Get reference to the lineLength subsystem. More...

LoberotatorSubsystem &	loberotator () const
	Get reference to the loberotator subsystem. More...

LoRefSubsystem &	loRef () const
	Get reference to the LOref subsystem. More...

MasterClockSubsystem &	masterclock () const
	Get reference to the masterclock subsystem. More...

	MonitorSystem (const std::string &systemName, long nSubsystems, long nMonitorPoints, long nSamples, int queueDepth=SubsystemFrameBuffer::kDefaultQueueDepth)
	Constructor base subsystem configuration. More...

OpacityMonitorSubsystem &	opacityMonitor () const
	Get reference to the opacityMonitor subsystem. More...

OvroSubsystem &	ovro (int index) const
	Get reference to ovro antenna subsystem. More...

PhaseMonitorSubsystem &	phaseMonitor () const
	Get reference to the phase monitor subsystem. More...

ProjectDatabaseManagerSubsystem &	projectDatabaseManager () const
	Get reference to the projectdatabase manager subsystem. More...

virtual unsigned int	read ()
	Reads oldest unread data from the IPQ into the local set of monitor points. More...

virtual bool	readNewest ()
	Reads in the newest data from the IPQ into the local set of monitor points. More...

virtual bool	readNewestConditionalCopy ()
	If new data is available it is copied from the queue into the monitor system. More...

virtual bool	readNewestIfStale ()
	Reads in data from the IPQ into the local set of monitor points if data is stale, that is, !isCurrent(). More...

void	resetQueue ()
	Moves read pointer beyond top of queue so a read will block until the next write. More...

void	resetTimes ()
	Resets collator write time - call clearAllTimes to conform to name of similar routine in ::carma:monitor::MonitorSubsystem and allows for more times to be added. More...

void	setFinalWriteTime (double mjdTimestamp)
	Sets MJD when this system frame was actually read by the fault system. More...

void	setFinalWriteTime ()

void	setRawReadTime (double mjdTimestamp)
	Sets MJD when this system frame was actually read by the fault system. More...

void	setRawReadTime ()

SignalPathSubsystem &	signalPath () const
	Get reference to the signal path subsystem. More...

SlDataflowSubsystem &	slDataflow (const int index) const

SldcSubsystem &	sldc () const
	Get reference to the spectral line downconverter subsystem. More...

SlPipelineSubsystem &	slPipeline () const
	Get reference to the spectral line pipeline subsystem. More...

SlRemapperSubsystem &	slRemapper (const int index) const

SystemFrameBuffer &	systemFrameBuffer () const
	Get reference to the underlying storage. More...

SystemStatusSubsystem &	systemStatus () const
	Get reference to the system status subsystem. More...

SzaSubsystem &	sza (int index) const
	Get reference to sza antenna subsystem. More...

TestSubsystem &	test () const
	Get reference to the test subsystem. More...

virtual std::string	transportStatisticsToString (bool canonical=false) const
	Dumps transport statistics as a table, with write delays, and transport/write times printed out as doubles, with fixed precision. More...

VlbiSubsystem &	vlbi () const
	Get reference to the vlbi subsystem. More...

WbcBandSubsystem &	wbcBand (const int index) const
	Get reference to a wideband correlator band subsystem. More...

WbDataflowSubsystem &	wbDataflow (const int index) const

WbdcSubsystem &	wbdc () const
	Get reference to wideband downconverter subsystem. More...

WbPipelineSubsystem &	wbPipeline () const
	Get reference to the wideband line pipeline subsystem. More...

WbRemapperSubsystem &	wbRemapper (const int index) const

WeatherSubsystem &	weather () const
	Get reference to the weather subsystem. More...

virtual void	write ()
	Write out the monitor point data values. More...

virtual	~MonitorSystem ()
	Destructor. More...

Public Member Functions inherited from carma::monitor::MonitorSystemContainer
bool	isActive ()
	Checks to see if this system is actively receiving data. More...

	MonitorSystemContainer (const std::string &systemName)
	Constructor base subsystem configuration. More...

virtual	~MonitorSystemContainer ()
	Destructor. More...

Public Member Functions inherited from carma::monitor::MonitorContainer
void	add (MonitorComponent &component)
	Add a subcomponent to this container A reference is kept to this subcomponent, so the caller is responsible for managing the lifecycle of the subcomponent; this container simply expects that it be available for access. More...

const Child &	getChild (int index) const
	Get reference to child monitor component by index. More...

::std::vector< Child >	getChildVec () const
	Get a vector of monitor components contained by this component. More...

MonitorComponent *	getComponentPtr (const ::std::string &name, bool caseSensitive) const
	Get a contained monitor component by hierarchical name The hierarchical name starts below this container and consist of dot (".") separated components. More...

MonitorPoint &	getFirstMonitorPoint ()
	Recursively find the first monitor point in this container. More...

MonitorPoint &	getMonitorPoint (const std::string &name, bool caseSensitive) const
	Get a monitor point by name (hierarchical name OK). More...

MonitorPoint &	getMonitorPoint (tagIDType tagID) const
	Get a monitor point by tagID. More...

MonitorPoint *	getMonitorPointPtr (const std::string &name, bool caseSensitive) const

MonitorPoint *	getMonitorPointPtr (tagIDType tagID) const

int	getNumChildren () const
	Get the number of monitor components contained by this component. More...

virtual int	getNumContainerChildren () const
	Get the number of child monitor containers contained by this component. More...

virtual int	getNumContainerDescendants () const
	Get the number of child monitor containers contained by this component and it's children. More...

virtual int	getNumDescendants () const
	Get the total number of monitor components contained by this component and it's children. More...

int	getNumMonitorPoints (bool recurse=false) const
	Get the number of monitor points. More...

int	getNumMonitorPoints ()
	Get the total number of monitor points in this container. More...

int	getNumSamples ()
	Get the total number of samples in this container. More...

bool	hasAllData () const
	See if all MPs in this component and below have data samples. More...

virtual ::std::string	hierarchyToString (bool canonical=false, bool verbose=false, bool value=true, int sampleIndex=0, int indent=0, int levels=-1) const
	Dump this and all contained monitor components to a string. More...

virtual ::std::string	hierarchyToStringAverage (bool canonical=false, bool verbose=false, bool value=true, int indent=0, int levels=-1) const
	Dump this and all contained monitor components to a string. More...

virtual void	hierarchyToVector (::std::vector< ::std::string > &hierarchyList, bool canonical=false, bool verbose=false, int sampleIndex=0) const
	Dump this and all contained monitor component strings into a map hierarchy. More...

virtual std::string	leafToString (bool verbose=false, bool value=true, int sampleIndex=0) const
	Dump all leaf nodes below this component to a string. More...

	MonitorContainer (const ::std::string &name)
	Constructor. More...

virtual ::std::string	monitorPointTags (bool untagged=false) const
	Write list of monitor points and their tagIDs to a string, one monitor point per line. More...

virtual bool	operator== (const MonitorComponent &component) const
	Compares this monitor container for equality to the one passed. More...

void	setArchivePriority (const MonitorComponent::ARCHIVE_PRIORITY priority, bool onlyDEFAULT=true)
	Recursively set the archive priority of all monitor points below. More...

virtual void	setCanonicalName (const std::string &parents)
	Recursively set the canonical component name for this and all below. More...

virtual void	setMonitorPointAttributes ()
	Set attributes of all monitor points held anywhere in the hierarchy within (and below) this container. More...

void	setNoData () const
	Recursively mark all data samples as INVALID_NO_DATA. More...

void	setPersistent (bool persistent)
	Set the persistent attribute for the value of a MonitorPoint, or in the case of a container for its descendants (recursively). More...

void	setValidity (MonitorPoint::VALIDITY validity)
	Recursively set validity for all samples of all monitor points below this container. More...

std::string	toString (bool canonicalName=false, bool verbose=false, bool value=true, int sampleIndex=0, int indent=0) const
	Write this monitor component to a string. More...

std::string	toStringAverage (bool canonicalName=false, bool verbose=false, bool value=true, int indent=0) const
	Write this monitor component to a string, using frame average values. More...

	~MonitorContainer ()
	Destructor. More...

Public Member Functions inherited from carma::monitor::MonitorComponent
const std::string &	getCanonicalName () const
	Get the canonical component name. More...

virtual const std::string &	getDescription () const
	Get the verbose description of the monitor component. More...

virtual const std::string &	getLongName () const
	Get the long name of the monitor component. More...

virtual const std::string &	getName () const
	Get the component name (leaf part of canonical name). More...

virtual std::string	getPhysicalDeviceName () const
	Get the physical device name, if one exists. More...

std::string	getPhysicalDeviceString () const
	Get the physical device name, if one exists, enclosed in parentheses. More...

std::string	getPhysicalName () const
	Get the physical name, which is location.device.component or if there is no associated physical device it is just component name. More...

virtual const std::string &	getShortName () const
	Get the short name of the monitor component. More...

virtual bool	isMonitorPoint () const
	Identifies this component as a MonitorPoint or any derivative Should be over-ridden by the MonitorPoint class; others that don't derive from MP can use this default implementation. More...

virtual bool	isSubsystem () const
	Check if the component is a MonitorSubsystem. More...

	MonitorComponent (const std::string &name)
	Constructor. More...

bool	operator!= (const MonitorComponent &component) const
	Checks if components are not equal. More...

void	setDescription (const std::string &text)
	Set the verbose description of the monitor component. More...

void	setLongName (const std::string &name)
	Set the long name of the monitor component. More...

void	setName (const std::string &name)
	Set the leaf part of the canonical name of the monitor component. More...

void	setShortName (const std::string &name)
	Set the short name of the monitor component. More...

void	setShortName (const std::string &name, int index)
	Set the short name of the monitor component, with an index appended. More...

virtual	~MonitorComponent ()
	Destructor. More...

Protected Member Functions
SubsystemFrame &	getChildSubsystemFrame (int index) const

Protected Member Functions inherited from carma::monitor::MonitorContainer
virtual void	setLocalMonitorPointAttributes ()
	Set attributes of all monitor points held directly by this container. More...

Additional Inherited Members
Public Types inherited from carma::monitor::MonitorComponent
enum	ARCHIVE_PRIORITY { VITAL, USEFUL, NORMAL, DEBUG, VERBOSE, DEFAULT, DONTARCHIVE }
	Archiving priority. More...

Static Public Member Functions inherited from carma::monitor::MonitorComponent
static std::string	archivePriorityToString (MonitorComponent::ARCHIVE_PRIORITY priority)
	Get a string representation for an archive priority. More...

static std::string	convertAllLower (std::string name)
	Convert a name to all lower case. More...

Static Protected Member Functions inherited from carma::monitor::MonitorContainer
static Child	findDescendant (const MonitorContainer &rootContainer, const ::std::string &name, bool caseSensitive)

Protected Attributes inherited from carma::monitor::MonitorComponent
bool	debug_

Related Functions inherited from carma::monitor::MonitorComponent
std::ostream &	operator<< (std::ostream &os, const MonitorComponent &component)

Detailed Description

Monitor system base class.

Definition at line 81 of file MonitorSystem.h.

Constructor & Destructor Documentation

carma::monitor::MonitorSystem::MonitorSystem	(	const std::string &	systemName,
		long	nSubsystems,
		long	nMonitorPoints,
		long	nSamples,
		int	queueDepth = `SubsystemFrameBuffer::kDefaultQueueDepth`
	)

Constructor base subsystem configuration.

Parameters

systemName	monitor system name
nSubsystems	number of subsystems
nMonitorPoints	number of monitor points
nSamples	number of samples

virtual carma::monitor::MonitorSystem::~MonitorSystem ( )

virtual

Destructor.

Member Function Documentation

std::string carma::monitor::MonitorSystem::addTransportTimesAsString ( std::ostringstream o ) const

Dumps transport statistics as a table, with write delays, and transport/write times printed out as doubles, with fixed precision.

Parameters

o	ostringstream stream into which the string is dumped

AlarmSubsystem& carma::monitor::MonitorSystem::alarm ( ) const

Get reference to the alarm subsystem.

Definition at line 168 of file MonitorSystem.h.

AntennaCommon& carma::monitor::MonitorSystem::antennaCommon ( int index ) const

Get reference to an AntennaCommon container in an ovro or bima or sza subsystem.

Convenience function. Gives the same answer as calling ovro(x).antennaCommon() or bima(y).antennaCommon() or sza(z).antennaCommon() for the appropriate value of z, y or z depending on the value of index.

Parameters

index O based antenna index (i.e. 0-5 are ovro, 6-14 are bima, 15-22 are sza)

AstroSubsystem& carma::monitor::MonitorSystem::astro ( ) const

Get reference to an Astro container.

Definition at line 117 of file MonitorSystem.h.

BimaSubsystem& carma::monitor::MonitorSystem::bima ( int index ) const

Get reference to a bima antenna subsystem.

Parameters

index antenna index

Definition at line 123 of file MonitorSystem.h.

C3gDataflowSubsystem& carma::monitor::MonitorSystem::c3gDataflow ( const int index ) const

Returns: reference to c3g data flow subsystem

Parameters

index Subsystem container index number = band number minus one

Definition at line 333 of file MonitorSystem.h.

C3gMax23PipelineSubsystem& carma::monitor::MonitorSystem::c3gMax23Pipeline ( ) const

Get reference to carma 23 station 3g correlator pipeline.

Definition at line 133 of file MonitorSystem.h.

C3gMax8PipelineSubsystem& carma::monitor::MonitorSystem::c3gMax8Pipeline ( ) const

Get reference to carma 8 station 3g correlator pipeline.

Definition at line 128 of file MonitorSystem.h.

C3gRemapperSubsystem& carma::monitor::MonitorSystem::c3gRemapper ( const int index ) const

Returns: reference to c3g corr data remapper subsystem

Parameters

index Subsystem container index number = band number minus one

Definition at line 351 of file MonitorSystem.h.

Carma3GBandSubsystem& carma::monitor::MonitorSystem::carma3gBand ( const int index ) const

Get reference to a CARMA3G correlator band subsystem.

Parameters

index band index

Definition at line 234 of file MonitorSystem.h.

CarmaSlcBandSubsystem& carma::monitor::MonitorSystem::carmaSlcBand ( const int index ) const

Get reference to a spectral line correlator band subsystem.

Parameters

index band index

Definition at line 221 of file MonitorSystem.h.

CentralIfSubsystem& carma::monitor::MonitorSystem::centralIf ( ) const

Get reference to the centalIF subsystem.

Definition at line 138 of file MonitorSystem.h.

ControlSubsystem& carma::monitor::MonitorSystem::control ( ) const

Get reference to the control subsystem.

Definition at line 143 of file MonitorSystem.h.

DataflowSubsystem& carma::monitor::MonitorSystem::dataflow ( ) const

Get reference to the control subsystem.

Definition at line 148 of file MonitorSystem.h.

DelayEngineSubsystem& carma::monitor::MonitorSystem::delay ( ) const

Get reference to the delay engine subsystem.

Definition at line 153 of file MonitorSystem.h.

carma::monitor::FaultSubsystem & carma::monitor::MonitorSystem::fault ( ) const

Get reference to fault subsystem.

Definition at line 828 of file MonitorSystem.h.

size_t carma::monitor::MonitorSystem::getActualMonitorSystemSize ( ) const

Capacity usage related method - returns actual size used in bytes across all subsystems.

Returns: size_t actual size of system frame in bytes

long carma::monitor::MonitorSystem::getActualNumMonitorPoints ( ) const

Capacity usage related method - returns actual # of monitor points across all subsystems.

Returns: long actual # of monitor points across al subsystems

long carma::monitor::MonitorSystem::getActualNumMonitorPoints ( const MonitorValueType type ) const

Capacity usage related method - returns actual # of monitor points of type.

type

across all subsystems.

Parameters

type	const MonitorValueType type of monitor points of interest

Returns: long actual # of monitor points of type <pretype across all subsystems

long carma::monitor::MonitorSystem::getActualNumMonitorSamples ( ) const

Capacity related method - returns actual # of monitor samples across all subsystems.

Returns: long actual # of monitor samples across all subsystems

long carma::monitor::MonitorSystem::getActualNumMonitorSamples ( MonitorValueType type ) const

Capacity related method - returns actual # of monitor samples of type <pretype across all subsystems.

Parameters

type	const MonitorValueType type of monitor samples of interest

Returns

long actual # of monitor samples of type

type

across all subsystems

long carma::monitor::MonitorSystem::getActualNumMultiSampleMonitorPoints ( ) const

Capacity usage related method - returns actual # of monitor points with multiple samples across all subsystems.

Returns: long actual # of multiple sample monitor points across all subsystems

long carma::monitor::MonitorSystem::getActualNumSubsystems ( ) const

Capacity usage related method - returns actual number of subsystems allocated.

Returns: long allocated # of subsystems in the monitor system object

size_t carma::monitor::MonitorSystem::getAllocatedMonitorSystemSize ( ) const

Capacity usage related method - returns total size allocated in bytes across all subsystems.

Sizing includes "holes".

Returns: size_t allocated size of system frame in bytes

long carma::monitor::MonitorSystem::getAllocatedNumMonitorPoints ( ) const

Capacity usage related method - returns allocated monitor point capacity across all subsystems.

Returns: long total # of monitor points allocated in monitor system object

long carma::monitor::MonitorSystem::getAllocatedNumMonitorSamples ( ) const

Capacity related method - returns total monitor sample capacity across all subsystems.

May include "holes" in the sample arrays.

Returns: long total # of monitor samples system can accomodate

long carma::monitor::MonitorSystem::getAllocatedNumSubsystems ( ) const

Capacity usage related method - returns total number of subsystems allocated.

Returns: long allocated # of subsystems in the monitor system object

int carma::monitor::MonitorSystem::getCarma3gBandCount ( ) const

Get the number of carma3g bands.

int carma::monitor::MonitorSystem::getCarmaSlcBandCount ( ) const

Get the number of carmaSlcBands.

MonitorSubsystem& carma::monitor::MonitorSystem::getChildSubsystem ( int index ) const

Get underlying subsystem by index.

See Also: getActualNumSubsystems

double carma::monitor::MonitorSystem::getCollatorWriteDelay ( ) const

Delay offset (in seconds) from the corrected UTC half-second when the System frame is written to IPQ on the ACC.

Returns: double offset from half-second specified in seconds.

double carma::monitor::MonitorSystem::getCollatorWriteTime ( ) const

MJD when this system frame was actually written to the IPQ.

It is guaranteed that this frame was written no earlier than this time.

Returns: double time in MJD format as specified by carma::util::Time class.

size_t carma::monitor::MonitorSystem::getCountedMonitorSystemSize ( ) const

Capacity usage related method - returns total size counted, in bytes across all subsystems.

uses iterator to count monitor points and samples, and computes size from these numbers.

Returns: size_t "counted" size of system frame in bytes

long carma::monitor::MonitorSystem::getCountedNumMonitorPoints ( ) const

Capacity usage related method - returns number of monitor points present across all subsystems - number is obtained by iterating over all monitor points, so method is likely to be expensive.

Returns: long total # of monitor points counted in monitor system object

long carma::monitor::MonitorSystem::getCountedNumMonitorSamples ( ) const

Capacity related method - returns number of monitor samples counted across all subsystems.

Number is obtained by iterating over all monitor points, so method is likely to be expensive.

Returns: long total # of monitor samples counted in the system

double carma::monitor::MonitorSystem::getFinalWriteTime ( ) const

Gets MJD when this system frame was actually read by the fault system.

It is guaranteed that this frame was read no later than this time.

Returns: double time in MJD format as specified by carma::util::Time class.

virtual int carma::monitor::MonitorSystem::getFrameCount ( ) const

virtual

Get the frame count for the last read frame.

Implements carma::monitor::MonitorSystemContainer.

size_t carma::monitor::MonitorSystem::getMaxMonitorSystemSize ( ) const

Capacity usage related method - returns total size allocated in bytes across all subsystems.

Returns: size_t allocated size of system frame in bytes

long carma::monitor::MonitorSystem::getMaxNumMonitorPoints ( ) const

Capacity usage related method - returns total allocated monitor point capacity across all subsystems.

Returns: long total # of monitor points allocated in monitor system object

long carma::monitor::MonitorSystem::getMaxNumMonitorSamples ( ) const

Capacity related method - returns total allocated monitor sample capacity across all subsystems.

Returns: long total # of monitor samples system can accomodate

long carma::monitor::MonitorSystem::getNumValidSubsystems ( ) const

Returns number of valid subsystems.

Returns: long number of subsystems that are current.

double carma::monitor::MonitorSystem::getRawReadTime ( ) const

Gets MJD when this system frame was actually read by the fault system.

It is guaranteed that this frame was read no later than this time.

Returns: double time in MJD format as specified by carma::util::Time class.

SystemFrameBuffer& carma::monitor::MonitorSystem::getSystemFrameBuffer ( ) const

Get the underlying SystemFrameBuffer.

For blackbelt use only.

Returns: reference to the system frame buffer

size_t carma::monitor::MonitorSystem::getTotalMonitorSystemSize ( ) const

Capacity related method - returns total size available in bytes across all subsystems.

Returns: size_t size of system frame in bytes

long carma::monitor::MonitorSystem::getTotalNumMonitorPoints ( ) const

Capacity related method - returns total monitor point capacity across all subsystems.

Returns: long total # of monitor points system can accomodate

long carma::monitor::MonitorSystem::getTotalNumMonitorSamples ( ) const

Capacity related method - returns total monitor sample capacity across all subsystems.

Returns: long total # of monitor samples system can accomodate

long carma::monitor::MonitorSystem::getTotalNumSubsystems ( ) const

Capacity related method - returns total subsystem capacity.

Returns: long total # of subsystems system can accomodate

int carma::monitor::MonitorSystem::getWbcBandCount ( ) const

Get the number of wbcBands.

ImrSubsystem& carma::monitor::MonitorSystem::imr ( ) const

Get reference to imr subsystem.

Definition at line 163 of file MonitorSystem.h.

bool carma::monitor::MonitorSystem::isCurrent ( ) const

virtual

Returns true if the monitor subsystem contains data that is current.

A read could make the data current, and hence make isCurrent return true. If a read does not make isCurrent true, then the subsystem is probably broken.

Returns: bool true if subsystem is current, false otherwise.

Implements carma::monitor::MonitorSystemContainer.

LineLengthSubsystem& carma::monitor::MonitorSystem::lineLength ( ) const

Get reference to the lineLength subsystem.

Definition at line 173 of file MonitorSystem.h.

LoberotatorSubsystem& carma::monitor::MonitorSystem::loberotator ( ) const

Get reference to the loberotator subsystem.

Definition at line 178 of file MonitorSystem.h.

LoRefSubsystem& carma::monitor::MonitorSystem::loRef ( ) const

Get reference to the LOref subsystem.

Definition at line 183 of file MonitorSystem.h.

MasterClockSubsystem& carma::monitor::MonitorSystem::masterclock ( ) const

Get reference to the masterclock subsystem.

Definition at line 188 of file MonitorSystem.h.

OpacityMonitorSubsystem& carma::monitor::MonitorSystem::opacityMonitor ( ) const

Get reference to the opacityMonitor subsystem.

Definition at line 193 of file MonitorSystem.h.

OvroSubsystem& carma::monitor::MonitorSystem::ovro ( int index ) const

Get reference to ovro antenna subsystem.

Parameters

index antenna index

Definition at line 199 of file MonitorSystem.h.

PhaseMonitorSubsystem& carma::monitor::MonitorSystem::phaseMonitor ( ) const

Get reference to the phase monitor subsystem.

Definition at line 204 of file MonitorSystem.h.

ProjectDatabaseManagerSubsystem& carma::monitor::MonitorSystem::projectDatabaseManager ( ) const

Get reference to the projectdatabase manager subsystem.

Definition at line 209 of file MonitorSystem.h.

virtual unsigned int carma::monitor::MonitorSystem::read ( )

virtual

Reads oldest unread data from the IPQ into the local set of monitor points.

This is a blocking read.

Returns: number of elements lost in reading the queue (non-zero if the reads are so far apart in time that the queue has wrapped around.

Implements carma::monitor::MonitorSystemContainer.

virtual bool carma::monitor::MonitorSystem::readNewest ( )

virtual

Reads in the newest data from the IPQ into the local set of monitor points.

There is no blocking!!

Returns: false if no data was available in the queue

Implements carma::monitor::MonitorSystemContainer.

virtual bool carma::monitor::MonitorSystem::readNewestConditionalCopy ( )

virtual

If new data is available it is copied from the queue into the monitor system.

If no unread data is available then the method returns. In either case there is no blocking.

Returns: false if no data was copied

Implements carma::monitor::MonitorSystemContainer.

virtual bool carma::monitor::MonitorSystem::readNewestIfStale ( )

virtual

Reads in data from the IPQ into the local set of monitor points if data is stale, that is, !isCurrent().

There is no blocking!!

Returns: false if no data was available in the queue

Deprecated:: Replaced by readNewestConditionalCopy

Reimplemented from carma::monitor::MonitorSystemContainer.

void carma::monitor::MonitorSystem::resetQueue ( )

Moves read pointer beyond top of queue so a read will block until the next write.

This method may be used to ensure that fresh data is read on the next read() call. Normally, a call to read will read the next unread element in its queue.

void carma::monitor::MonitorSystem::resetTimes ( )

Resets collator write time - call clearAllTimes to conform to name of similar routine in ::carma:monitor::MonitorSubsystem and allows for more times to be added.

void carma::monitor::MonitorSystem::setFinalWriteTime ( double mjdTimestamp )

Sets MJD when this system frame was actually read by the fault system.

It is guaranteed that this frame was read no later than this time.

Parameters

time	double time in MJD format as specified by carma::util::Time class. Defaults to current time.

void carma::monitor::MonitorSystem::setRawReadTime ( double mjdTimestamp )

Sets MJD when this system frame was actually read by the fault system.

It is guaranteed that this frame was read no later than this time.

Parameters

time	double time in MJD format as specified by carma::util::Time class. Defaults to current time.

SignalPathSubsystem& carma::monitor::MonitorSystem::signalPath ( ) const

Get reference to the signal path subsystem.

Definition at line 215 of file MonitorSystem.h.

SlDataflowSubsystem& carma::monitor::MonitorSystem::slDataflow ( const int index ) const

Returns: reference to spectral data flow subsystem

Parameters

index Subsystem container index number = band number minus one

Definition at line 324 of file MonitorSystem.h.

SldcSubsystem& carma::monitor::MonitorSystem::sldc ( ) const

Get reference to the spectral line downconverter subsystem.

Definition at line 246 of file MonitorSystem.h.

SlPipelineSubsystem& carma::monitor::MonitorSystem::slPipeline ( ) const

Get reference to the spectral line pipeline subsystem.

Definition at line 251 of file MonitorSystem.h.

SlRemapperSubsystem& carma::monitor::MonitorSystem::slRemapper ( const int index ) const

Returns: reference to spectral line corr data remapper subsystem

Parameters

index Subsystem container index number = band number minus one

Definition at line 342 of file MonitorSystem.h.

SystemFrameBuffer& carma::monitor::MonitorSystem::systemFrameBuffer ( ) const

Get reference to the underlying storage.

Definition at line 359 of file MonitorSystem.h.

SystemStatusSubsystem& carma::monitor::MonitorSystem::systemStatus ( ) const

Get reference to the system status subsystem.

Definition at line 256 of file MonitorSystem.h.

SzaSubsystem& carma::monitor::MonitorSystem::sza ( int index ) const

Get reference to sza antenna subsystem.

Parameters

index antenna index

Definition at line 262 of file MonitorSystem.h.

TestSubsystem& carma::monitor::MonitorSystem::test ( ) const

Get reference to the test subsystem.

Definition at line 295 of file MonitorSystem.h.

virtual std::string carma::monitor::MonitorSystem::transportStatisticsToString ( bool canonical = false ) const

virtual

Dumps transport statistics as a table, with write delays, and transport/write times printed out as doubles, with fixed precision.

Parameters

canonical bool if true, prints canonical name otherwise uses leaf name.

Reimplemented from carma::monitor::MonitorComponent.

VlbiSubsystem& carma::monitor::MonitorSystem::vlbi ( ) const

Get reference to the vlbi subsystem.

Definition at line 300 of file MonitorSystem.h.

WbcBandSubsystem& carma::monitor::MonitorSystem::wbcBand ( const int index ) const

Get reference to a wideband correlator band subsystem.

Parameters

index band index

Definition at line 268 of file MonitorSystem.h.

WbDataflowSubsystem& carma::monitor::MonitorSystem::wbDataflow ( const int index ) const

Returns: reference to WB data flow subsystem

Parameters

index Subsystem container index number = band number minus one

Definition at line 306 of file MonitorSystem.h.

WbdcSubsystem& carma::monitor::MonitorSystem::wbdc ( ) const

Get reference to wideband downconverter subsystem.

Definition at line 280 of file MonitorSystem.h.

WbPipelineSubsystem& carma::monitor::MonitorSystem::wbPipeline ( ) const

Get reference to the wideband line pipeline subsystem.

Definition at line 285 of file MonitorSystem.h.

WbRemapperSubsystem& carma::monitor::MonitorSystem::wbRemapper ( const int index ) const

Returns: reference to WB corr data remapper subsystem

Parameters

index Subsystem container index number = band number minus one

Definition at line 315 of file MonitorSystem.h.

WeatherSubsystem& carma::monitor::MonitorSystem::weather ( ) const

Get reference to the weather subsystem.

Definition at line 290 of file MonitorSystem.h.

virtual void carma::monitor::MonitorSystem::write ( )

virtual

Write out the monitor point data values.

Implements carma::monitor::MonitorSystemContainer.

The documentation for this class was generated from the following file:

carma/monitor/MonitorSystem.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
