A generic monitor system container base class. More...

#include <carma/monitor/MonitorContainer.h>

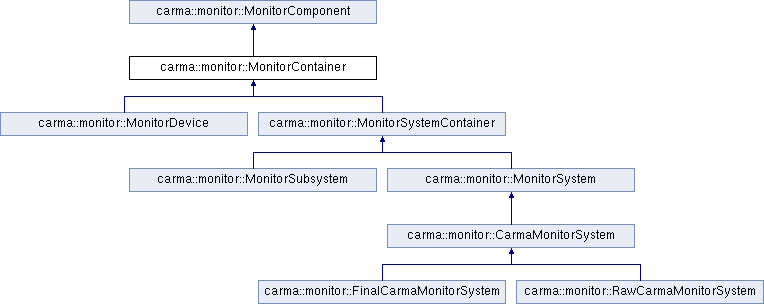

Inheritance diagram for carma::monitor::MonitorContainer:

Public Member Functions
void	add (MonitorComponent &component)
	Add a subcomponent to this container A reference is kept to this subcomponent, so the caller is responsible for managing the lifecycle of the subcomponent; this container simply expects that it be available for access. More...

const Child &	getChild (int index) const
	Get reference to child monitor component by index. More...

::std::vector< Child >	getChildVec () const
	Get a vector of monitor components contained by this component. More...

MonitorComponent *	getComponentPtr (const ::std::string &name, bool caseSensitive) const
	Get a contained monitor component by hierarchical name The hierarchical name starts below this container and consist of dot (".") separated components. More...

MonitorPoint &	getFirstMonitorPoint ()
	Recursively find the first monitor point in this container. More...

MonitorPoint &	getMonitorPoint (const std::string &name, bool caseSensitive) const
	Get a monitor point by name (hierarchical name OK). More...

MonitorPoint &	getMonitorPoint (tagIDType tagID) const
	Get a monitor point by tagID. More...

MonitorPoint *	getMonitorPointPtr (const std::string &name, bool caseSensitive) const

MonitorPoint *	getMonitorPointPtr (tagIDType tagID) const

int	getNumChildren () const
	Get the number of monitor components contained by this component. More...

virtual int	getNumContainerChildren () const
	Get the number of child monitor containers contained by this component. More...

virtual int	getNumContainerDescendants () const
	Get the number of child monitor containers contained by this component and it's children. More...

virtual int	getNumDescendants () const
	Get the total number of monitor components contained by this component and it's children. More...

int	getNumMonitorPoints (bool recurse=false) const
	Get the number of monitor points. More...

int	getNumMonitorPoints ()
	Get the total number of monitor points in this container. More...

int	getNumSamples ()
	Get the total number of samples in this container. More...

bool	hasAllData () const
	See if all MPs in this component and below have data samples. More...

virtual ::std::string	hierarchyToString (bool canonical=false, bool verbose=false, bool value=true, int sampleIndex=0, int indent=0, int levels=-1) const
	Dump this and all contained monitor components to a string. More...

virtual ::std::string	hierarchyToStringAverage (bool canonical=false, bool verbose=false, bool value=true, int indent=0, int levels=-1) const
	Dump this and all contained monitor components to a string. More...

virtual void	hierarchyToVector (::std::vector< ::std::string > &hierarchyList, bool canonical=false, bool verbose=false, int sampleIndex=0) const
	Dump this and all contained monitor component strings into a map hierarchy. More...

virtual std::string	leafToString (bool verbose=false, bool value=true, int sampleIndex=0) const
	Dump all leaf nodes below this component to a string. More...

	MonitorContainer (const ::std::string &name)
	Constructor. More...

virtual ::std::string	monitorPointTags (bool untagged=false) const
	Write list of monitor points and their tagIDs to a string, one monitor point per line. More...

virtual bool	operator== (const MonitorComponent &component) const
	Compares this monitor container for equality to the one passed. More...

void	setArchivePriority (const MonitorComponent::ARCHIVE_PRIORITY priority, bool onlyDEFAULT=true)
	Recursively set the archive priority of all monitor points below. More...

virtual void	setCanonicalName (const std::string &parents)
	Recursively set the canonical component name for this and all below. More...

virtual void	setMonitorPointAttributes ()
	Set attributes of all monitor points held anywhere in the hierarchy within (and below) this container. More...

void	setNoData () const
	Recursively mark all data samples as INVALID_NO_DATA. More...

void	setPersistent (bool persistent)
	Set the persistent attribute for the value of a MonitorPoint, or in the case of a container for its descendants (recursively). More...

void	setValidity (MonitorPoint::VALIDITY validity)
	Recursively set validity for all samples of all monitor points below this container. More...

std::string	toString (bool canonicalName=false, bool verbose=false, bool value=true, int sampleIndex=0, int indent=0) const
	Write this monitor component to a string. More...

std::string	toStringAverage (bool canonicalName=false, bool verbose=false, bool value=true, int indent=0) const
	Write this monitor component to a string, using frame average values. More...

	~MonitorContainer ()
	Destructor. More...

Public Member Functions inherited from carma::monitor::MonitorComponent
const std::string &	getCanonicalName () const
	Get the canonical component name. More...

virtual const std::string &	getDescription () const
	Get the verbose description of the monitor component. More...

virtual const std::string &	getLongName () const
	Get the long name of the monitor component. More...

virtual const std::string &	getName () const
	Get the component name (leaf part of canonical name). More...

virtual std::string	getPhysicalDeviceName () const
	Get the physical device name, if one exists. More...

std::string	getPhysicalDeviceString () const
	Get the physical device name, if one exists, enclosed in parentheses. More...

std::string	getPhysicalName () const
	Get the physical name, which is location.device.component or if there is no associated physical device it is just component name. More...

virtual const std::string &	getShortName () const
	Get the short name of the monitor component. More...

virtual bool	isMonitorPoint () const
	Identifies this component as a MonitorPoint or any derivative Should be over-ridden by the MonitorPoint class; others that don't derive from MP can use this default implementation. More...

virtual bool	isSubsystem () const
	Check if the component is a MonitorSubsystem. More...

	MonitorComponent (const std::string &name)
	Constructor. More...

bool	operator!= (const MonitorComponent &component) const
	Checks if components are not equal. More...

void	setDescription (const std::string &text)
	Set the verbose description of the monitor component. More...

void	setLongName (const std::string &name)
	Set the long name of the monitor component. More...

void	setName (const std::string &name)
	Set the leaf part of the canonical name of the monitor component. More...

void	setShortName (const std::string &name)
	Set the short name of the monitor component. More...

void	setShortName (const std::string &name, int index)
	Set the short name of the monitor component, with an index appended. More...

virtual std::string	transportStatisticsToString (bool canonical=false) const
	Dump end-toe-end transport statistics (if available). More...

virtual	~MonitorComponent ()
	Destructor. More...

Protected Member Functions
virtual void	setLocalMonitorPointAttributes ()
	Set attributes of all monitor points held directly by this container. More...

Static Protected Member Functions
static Child	findDescendant (const MonitorContainer &rootContainer, const ::std::string &name, bool caseSensitive)

Additional Inherited Members
Public Types inherited from carma::monitor::MonitorComponent
enum	ARCHIVE_PRIORITY { VITAL, USEFUL, NORMAL, DEBUG, VERBOSE, DEFAULT, DONTARCHIVE }
	Archiving priority. More...

Static Public Member Functions inherited from carma::monitor::MonitorComponent
static std::string	archivePriorityToString (MonitorComponent::ARCHIVE_PRIORITY priority)
	Get a string representation for an archive priority. More...

static std::string	convertAllLower (std::string name)
	Convert a name to all lower case. More...

Protected Attributes inherited from carma::monitor::MonitorComponent
bool	debug_

Related Functions inherited from carma::monitor::MonitorComponent
std::ostream &	operator<< (std::ostream &os, const MonitorComponent &component)

Detailed Description

A generic monitor system container base class.

The container holds other containers and monitor points. Monitor points are always the leaf nodes in this hierarchy. The container has constructs for clearing out the samples for all monitor points and setting them to INVALID_NO_DATA, and for determining when all the monitor points in the container have data.

Definition at line 42 of file MonitorContainer.h.

Constructor & Destructor Documentation

carma::monitor::MonitorContainer::MonitorContainer ( const ::std::string & name )

explicit

Constructor.

Parameters

name	for the MonitorContainer

carma::monitor::MonitorContainer::~MonitorContainer ( )

Destructor.

Member Function Documentation

void carma::monitor::MonitorContainer::add ( MonitorComponent & component )

Add a subcomponent to this container A reference is kept to this subcomponent, so the caller is responsible for managing the lifecycle of the subcomponent; this container simply expects that it be available for access.

Parameters

component to add below this component in the hierarchy

const carma::monitor::MonitorContainer::Child & carma::monitor::MonitorContainer::getChild ( int index ) const

Get reference to child monitor component by index.

Parameters

index

Definition at line 426 of file MonitorContainer.h.

std::vector< carma::monitor::MonitorContainer::Child > carma::monitor::MonitorContainer::getChildVec ( ) const

Get a vector of monitor components contained by this component.

Definition at line 436 of file MonitorContainer.h.

MonitorComponent* carma::monitor::MonitorContainer::getComponentPtr	(	const ::std::string &	name,
		bool	caseSensitive
	)		const

Get a contained monitor component by hierarchical name The hierarchical name starts below this container and consist of dot (".") separated components.

Parameters

name

Returns: pointer to the requested component, or a null if not found

MonitorPoint& carma::monitor::MonitorContainer::getFirstMonitorPoint ( )

Recursively find the first monitor point in this container.

If there is none, a null reference will be returned.

MonitorPoint& carma::monitor::MonitorContainer::getMonitorPoint	(	const std::string &	name,
		bool	caseSensitive
	)		const

Get a monitor point by name (hierarchical name OK).

Parameters

name

MonitorPoint& carma::monitor::MonitorContainer::getMonitorPoint ( tagIDType tagID ) const

Get a monitor point by tagID.

Parameters

tagID

int carma::monitor::MonitorContainer::getNumChildren ( ) const

Get the number of monitor components contained by this component.

Definition at line 419 of file MonitorContainer.h.

virtual int carma::monitor::MonitorContainer::getNumContainerChildren ( ) const

virtual

Get the number of child monitor containers contained by this component.

virtual int carma::monitor::MonitorContainer::getNumContainerDescendants ( ) const

virtual

Get the number of child monitor containers contained by this component and it's children.

virtual int carma::monitor::MonitorContainer::getNumDescendants ( ) const

virtual

Get the total number of monitor components contained by this component and it's children.

int carma::monitor::MonitorContainer::getNumMonitorPoints ( bool recurse = false ) const

Get the number of monitor points.

Parameters

recurse false gives only MPs in this container, while true gives total of this container and all below.

int carma::monitor::MonitorContainer::getNumMonitorPoints ( )

Get the total number of monitor points in this container.

Returns: total number of monitor points in this container

int carma::monitor::MonitorContainer::getNumSamples ( )

Get the total number of samples in this container.

Returns: total number of samples in this container

bool carma::monitor::MonitorContainer::hasAllData ( ) const

virtual

See if all MPs in this component and below have data samples.

Can be time consuming to check a large branch.

Implements carma::monitor::MonitorComponent.

virtual ::std::string carma::monitor::MonitorContainer::hierarchyToString	(	bool	canonical = `false`,
		bool	verbose = `false`,
		bool	value = `true`,
		int	sampleIndex = `0`,
		int	indent = `0`,
		int	levels = `-1`
	)		const

virtual

Dump this and all contained monitor components to a string.

The string will potentially have many lines, and will end with a new line in all cases.

Parameters

canonical	determines if canonical or component name is output
verbose	determines if a terse or verbose dump is done
value	determines if current value is output
sampleIndex	(0 is first sample)
indent	for this level in characters
levels	number of levels below this to descend; -1 means all

Implements carma::monitor::MonitorComponent.

virtual ::std::string carma::monitor::MonitorContainer::hierarchyToStringAverage	(	bool	canonical = `false`,
		bool	verbose = `false`,
		bool	value = `true`,
		int	indent = `0`,
		int	levels = `-1`
	)		const

virtual

Dump this and all contained monitor components to a string.

The frame average value is output. The string will potentially have many lines, and will end with a new line in all cases.

Parameters

canonical	determines if canonical or component name is output
verbose	determines if a terse or verbose dump is done
value	determines if current value is output
indent	for this level in characters
levels	number of levels below this to descend; -1 means all

Implements carma::monitor::MonitorComponent.

virtual void carma::monitor::MonitorContainer::hierarchyToVector	(	::std::vector< ::std::string > &	hierarchyList,
		bool	canonical = `false`,
		bool	verbose = `false`,
		int	sampleIndex = `0`
	)		const

virtual

Dump this and all contained monitor component strings into a map hierarchy.

Parameters

canonical	determines if canonical or component name is output
verbose	determines if a terse or verbose dump is done

Implements carma::monitor::MonitorComponent.

virtual std::string carma::monitor::MonitorContainer::leafToString	(	bool	verbose = `false`,
		bool	value = `true`,
		int	sampleIndex = `0`
	)		const

virtual

Dump all leaf nodes below this component to a string.

Leaf nodes should be MonitorPoints (or a subclass thereof). The string will potentially have many lines, and will end with a new line in all cases. The canonical name is used in the output.

Parameters

verbose	determines if a terse or verbose dump is done
value	determines if current value is output
sampleIndex	(0 is first sample)

Implements carma::monitor::MonitorComponent.

virtual ::std::string carma::monitor::MonitorContainer::monitorPointTags ( bool untagged = false ) const

virtual

Write list of monitor points and their tagIDs to a string, one monitor point per line.

Parameters

untagged Only list those MPs without tagIDs

Implements carma::monitor::MonitorComponent.

virtual bool carma::monitor::MonitorContainer::operator== ( const MonitorComponent & component ) const

virtual

Compares this monitor container for equality to the one passed.

The container name must be the same and all components must be equal.

Parameters

component to compare to this component

Implements carma::monitor::MonitorComponent.

void carma::monitor::MonitorContainer::setArchivePriority	(	const MonitorComponent::ARCHIVE_PRIORITY	priority,
		bool	onlyDEFAULT = `true`
	)

Recursively set the archive priority of all monitor points below.

Parameters

priority	new archive priority
onlyDEFAULT	only set the new priority on monitor points that have an archive priority of DEFAULT. Defaults to true.

virtual void carma::monitor::MonitorContainer::setCanonicalName ( const std::string & parents )

virtual

Recursively set the canonical component name for this and all below.

Parameters

parents used for levels above this,for example "parents.thisComponent.allbelow..."

See Also: getCanonicalName

Reimplemented from carma::monitor::MonitorComponent.

virtual void carma::monitor::MonitorContainer::setLocalMonitorPointAttributes ( )

protectedvirtual

Set attributes of all monitor points held directly by this container.

These attributes, such as long name, sample rate, etc., may be set when the MPs are created or the attributes may be gotten from a configuration file/dbms and applied here. The default version of this method does nothing. However, it is overridden in MPML generated code all over the place.

See Also: setMonitorPointAttributes

virtual void carma::monitor::MonitorContainer::setMonitorPointAttributes ( )

virtual

Set attributes of all monitor points held anywhere in the hierarchy within (and below) this container.

These attributes, such as long name, sample rate, etc., may be set when the MPs are created or the attributes may be gotten from a configuration file/dbms and applied here. The default version of this method first calls the setLocalMonitorPointAttributes() method, then it calls the setMonitorPointAttributes() method of all containers held within this container.

See Also: setLocalMonitorPointAttributes

void carma::monitor::MonitorContainer::setNoData ( ) const

virtual

Recursively mark all data samples as INVALID_NO_DATA.

Implements carma::monitor::MonitorComponent.

void carma::monitor::MonitorContainer::setPersistent ( bool persistent )

virtual

Set the persistent attribute for the value of a MonitorPoint, or in the case of a container for its descendants (recursively).

Note that this method has no effect on a running FSP, which gets its persistence info from the MPML file. I.e. you can't change the persistence of a monitor point programmatically (dynamically).

Parameters

persistent true if the component's value is to be persistent across frames; false if it is to be invalidated after every frame is set.

Implements carma::monitor::MonitorComponent.

void carma::monitor::MonitorContainer::setValidity ( MonitorPoint::VALIDITY validity )

Recursively set validity for all samples of all monitor points below this container.

This is all points that derive from MonitorPoint (sense, monitor, control)

Parameters

validity

std::string carma::monitor::MonitorContainer::toString	(	bool	canonicalName = `false`,
		bool	verbose = `false`,
		bool	value = `true`,
		int	sampleIndex = `0`,
		int	indent = `0`
	)		const

virtual

Write this monitor component to a string.

If verbose, the string may have multiple lines but is guaranteed to be terminated with a newline. If not verbose, the string is guaranteed to be a single line without a newline.

Parameters

canonicalName	output canonicalName or leaf name
verbose	determines if a terse or verbose dump is done
value	determines if current value is output
sampleIndex	(0 is first sample)
indent	for this level (number of characters)

See Also: toStringAverage

Implements carma::monitor::MonitorComponent.

std::string carma::monitor::MonitorContainer::toStringAverage	(	bool	canonicalName = `false`,
		bool	verbose = `false`,
		bool	value = `true`,
		int	indent = `0`
	)		const

virtual

Write this monitor component to a string, using frame average values.

If verbose, the string may have multiple lines but is guaranteed to be terminated with a newline. If not verbose, the string is guaranteed to be a single line without a newline.

Parameters

canonicalName	output canonicalName or leaf name
verbose	determines if a terse or verbose dump is done
value	determines if current value is output
indent	for this level (number of characters)

See Also: toString

Implements carma::monitor::MonitorComponent.

The documentation for this class was generated from the following file:

carma/monitor/MonitorContainer.h

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
