A composite interface used to build the monitor system hierarchy. More...

#include <carma/monitor/MonitorComponent.h>

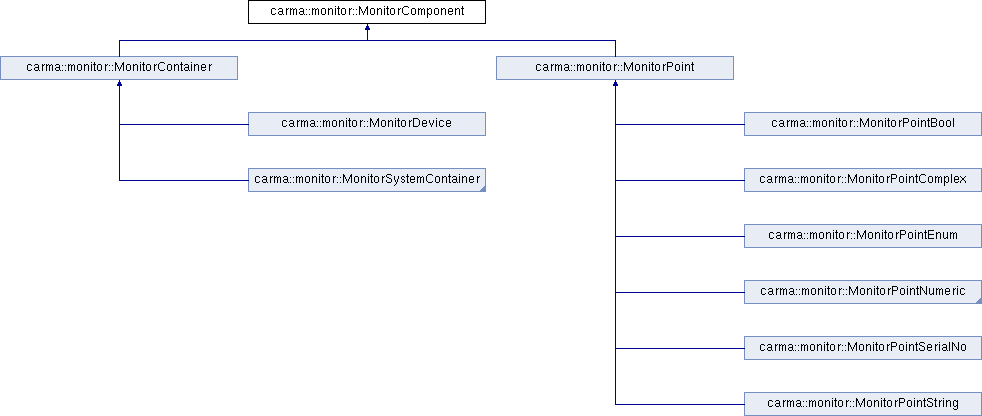

Inheritance diagram for carma::monitor::MonitorComponent:

Public Types
enum	ARCHIVE_PRIORITY { VITAL, USEFUL, NORMAL, DEBUG, VERBOSE, DEFAULT, DONTARCHIVE }
	Archiving priority. More...

Public Member Functions
const std::string &	getCanonicalName () const
	Get the canonical component name. More...

virtual const std::string &	getDescription () const
	Get the verbose description of the monitor component. More...

virtual const std::string &	getLongName () const
	Get the long name of the monitor component. More...

virtual const std::string &	getName () const
	Get the component name (leaf part of canonical name). More...

virtual std::string	getPhysicalDeviceName () const
	Get the physical device name, if one exists. More...

std::string	getPhysicalDeviceString () const
	Get the physical device name, if one exists, enclosed in parentheses. More...

std::string	getPhysicalName () const
	Get the physical name, which is location.device.component or if there is no associated physical device it is just component name. More...

virtual const std::string &	getShortName () const
	Get the short name of the monitor component. More...

virtual bool	hasAllData () const =0
	See if all MPs in this component and below have data samples. More...

virtual ::std::string	hierarchyToString (bool canonical=false, bool verbose=false, bool value=true, int sampleIndex=0, int indent=0, int levels=-1) const =0
	Dump this and all contained monitor components to a string. More...

virtual ::std::string	hierarchyToStringAverage (bool canonical=false, bool verbose=false, bool value=true, int indent=0, int levels=-1) const =0
	Dump this and all contained monitor components to a string. More...

virtual void	hierarchyToVector (::std::vector< ::std::string > &hierarchyList, bool canonical=false, bool verbose=false, int sampleIndex=0) const =0
	Dump this and all contained monitor component strings into a map hierarchy. More...

virtual bool	isMonitorPoint () const
	Identifies this component as a MonitorPoint or any derivative Should be over-ridden by the MonitorPoint class; others that don't derive from MP can use this default implementation. More...

virtual bool	isSubsystem () const
	Check if the component is a MonitorSubsystem. More...

virtual std::string	leafToString (bool verbose=false, bool value=true, int sampleIndex=0) const =0
	Dump all leaf nodes below this component to a string. More...

	MonitorComponent (const std::string &name)
	Constructor. More...

virtual ::std::string	monitorPointTags (bool untagged=false) const =0
	Write list of monitor points and their tagIDs to a string, one monitor point per line. More...

bool	operator!= (const MonitorComponent &component) const
	Checks if components are not equal. More...

virtual bool	operator== (const MonitorComponent &component) const =0
	Interface (pure virtual) for comparison of components The derived class must implement this method. More...

virtual void	setCanonicalName (const std::string &parents)
	Recursively set the canonical component name for this and all below. More...

void	setDescription (const std::string &text)
	Set the verbose description of the monitor component. More...

void	setLongName (const std::string &name)
	Set the long name of the monitor component. More...

void	setName (const std::string &name)
	Set the leaf part of the canonical name of the monitor component. More...

virtual void	setNoData () const =0
	Recursively mark all data samples as INVALID_NO_DATA. More...

virtual void	setPersistent (bool persistent)=0
	Set the persistent attribute for the value of a MonitorPoint, or in the case of a container for its descendants (recursively). More...

void	setShortName (const std::string &name)
	Set the short name of the monitor component. More...

void	setShortName (const std::string &name, int index)
	Set the short name of the monitor component, with an index appended. More...

virtual std::string	toString (bool canonicalName=false, bool verbose=false, bool value=true, int sampleIndex=0, int indent=0) const =0
	Write this monitor component to a string. More...

virtual std::string	toStringAverage (bool canonicalName=false, bool verbose=false, bool value=true, int indent=0) const =0
	Write this monitor component to a string, using frame average values. More...

virtual std::string	transportStatisticsToString (bool canonical=false) const
	Dump end-toe-end transport statistics (if available). More...

virtual	~MonitorComponent ()
	Destructor. More...

Static Public Member Functions
static std::string	archivePriorityToString (MonitorComponent::ARCHIVE_PRIORITY priority)
	Get a string representation for an archive priority. More...

static std::string	convertAllLower (std::string name)
	Convert a name to all lower case. More...

Protected Attributes
bool	debug_

Related Functions
(Note that these are not member functions.)
std::ostream &	operator<< (std::ostream &os, const MonitorComponent &component)

Detailed Description

A composite interface used to build the monitor system hierarchy.

Both containers and leaf nodes are derived from this class. Operations can walk down the hierarchy toward the leaf nodes, but not up. This component has constructs for clearing out the samples for all monitor points and setting them to NO_DATA, and for determining when all the monitor points in the container have data.

Definition at line 32 of file MonitorComponent.h.

Member Enumeration Documentation

enum carma::monitor::MonitorComponent::ARCHIVE_PRIORITY

Archiving priority.

Enumerator
VITAL	Data is vital for producing science data products; that is, the data cannot be calibrated without this information.
USEFUL	Data is useful for procesing science data products; that is, the off-line processing software exists to use this data, and it is not uncommon for end users to exploit it.
NORMAL	Data should be archived by default when performance and bandwidth allow. It is likely that data of this type will be looked at later. It might be considered a fairly important type of data for debugging the system.
DEBUG	Data should only be archived under debug mode.
VERBOSE	Lowest priority level. To be archived only under very special (debugging) circumstances.
DEFAULT	This is a place holder for monitor points that have not had their archive priority set. Methods can then key off this and replace it with a new priority. If it is not replaced it will be treated like DONTARCHIVE.
DONTARCHIVE	The data should never be archived. Once set to this value, it can not be changed to anything else. This value is used when a monitor point's tagID was set on the fly.

Definition at line 38 of file MonitorComponent.h.

Constructor & Destructor Documentation

carma::monitor::MonitorComponent::MonitorComponent ( const std::string & name )

explicit

Constructor.

Parameters

name	MonitorComponent name (non-hierarchical) Embedded white space is not allowed. An example is "Ovro3" or "mixerCurrent".

virtual carma::monitor::MonitorComponent::~MonitorComponent ( )

virtual

Destructor.

Member Function Documentation

static std::string carma::monitor::MonitorComponent::archivePriorityToString ( MonitorComponent::ARCHIVE_PRIORITY priority )

static

Get a string representation for an archive priority.

Parameters

priority

static std::string carma::monitor::MonitorComponent::convertAllLower ( std::string name )

static

Convert a name to all lower case.

Parameters

name

Returns: name converted to lower case

const ::std::string & carma::monitor::MonitorComponent::getCanonicalName ( ) const

Get the canonical component name.

The canonical name begins at the subsystem and represents the physical hierarchy.

See Also: setCanonicalName

Definition at line 439 of file MonitorComponent.h.

virtual const std::string& carma::monitor::MonitorComponent::getDescription ( ) const

virtual

Get the verbose description of the monitor component.

Embedded white space is encouraged, new lines are allowed. An example is "SIS mixer current".

Returns: verbose monitor component description

See Also: setDescription

virtual const std::string& carma::monitor::MonitorComponent::getLongName ( ) const

virtual

Get the long name of the monitor component.

This is the name used for a tooltip style help. Embedded white space is allowed and encouraged. An example is "SIS junction current".

Returns: the long name of the monitor point.

See Also: setLongName

virtual const std::string& carma::monitor::MonitorComponent::getName ( ) const

virtual

Get the component name (leaf part of canonical name).

Returns: the name of the monitor component.

See Also: setName

virtual std::string carma::monitor::MonitorComponent::getPhysicalDeviceName ( ) const

virtual

Get the physical device name, if one exists.

Returns: the physical device name, or a zero length string if there is none

Reimplemented in carma::monitor::MonitorDevice.

std::string carma::monitor::MonitorComponent::getPhysicalDeviceString ( ) const

Get the physical device name, if one exists, enclosed in parentheses.

Returns: the physical device name enclosed in parentheses, or a zero length string if there is none

std::string carma::monitor::MonitorComponent::getPhysicalName ( ) const

Get the physical name, which is location.device.component or if there is no associated physical device it is just component name.

Returns: the physical name

virtual const std::string& carma::monitor::MonitorComponent::getShortName ( ) const

virtual

Get the short name of the monitor component.

This is the name used for a row or column heading. Embedded white space is not allowed. An example is "Ij".

Returns: the short name of the monitor point.

See Also: setShortName

virtual bool carma::monitor::MonitorComponent::hasAllData ( ) const

pure virtual

See if all MPs in this component and below have data samples.

Can be time consuming to check a large branch.

Implemented in carma::monitor::MonitorPoint, and carma::monitor::MonitorContainer.

virtual ::std::string carma::monitor::MonitorComponent::hierarchyToString	(	bool	canonical = `false`,
		bool	verbose = `false`,
		bool	value = `true`,
		int	sampleIndex = `0`,
		int	indent = `0`,
		int	levels = `-1`
	)		const

pure virtual

Dump this and all contained monitor components to a string.

The string will potentially have many lines, and will end with a new line in all cases.

Parameters

canonical	determines if canonical or component name is output
verbose	determines if a terse or verbose dump is done
value	determines if current value is output
sampleIndex	(0 is first sample)
indent	for this level in characters
levels	number of levels below this to descend; -1 means all

Implemented in carma::monitor::MonitorPoint, and carma::monitor::MonitorContainer.

virtual ::std::string carma::monitor::MonitorComponent::hierarchyToStringAverage	(	bool	canonical = `false`,
		bool	verbose = `false`,
		bool	value = `true`,
		int	indent = `0`,
		int	levels = `-1`
	)		const

pure virtual

Dump this and all contained monitor components to a string.

The frame average value is output. The string will potentially have many lines, and will end with a new line in all cases.

Parameters

canonical	determines if canonical or component name is output
verbose	determines if a terse or verbose dump is done
value	determines if current value is output
indent	for this level in characters
levels	number of levels below this to descend; -1 means all

Implemented in carma::monitor::MonitorPoint, and carma::monitor::MonitorContainer.

virtual void carma::monitor::MonitorComponent::hierarchyToVector	(	::std::vector< ::std::string > &	hierarchyList,
		bool	canonical = `false`,
		bool	verbose = `false`,
		int	sampleIndex = `0`
	)		const

pure virtual

Dump this and all contained monitor component strings into a map hierarchy.

Parameters

canonical	determines if canonical or component name is output
verbose	determines if a terse or verbose dump is done

Implemented in carma::monitor::MonitorPoint, and carma::monitor::MonitorContainer.

virtual bool carma::monitor::MonitorComponent::isMonitorPoint ( ) const

virtual

Identifies this component as a MonitorPoint or any derivative Should be over-ridden by the MonitorPoint class; others that don't derive from MP can use this default implementation.

Used to speed up iteration through a monitor hierarchy.

Returns: true if the component is a MonitorPoint or any derivative

Reimplemented in carma::monitor::MonitorPoint.

virtual bool carma::monitor::MonitorComponent::isSubsystem ( ) const

virtual

Check if the component is a MonitorSubsystem.

Returns: true if the component is a MonitorSubsystem

Reimplemented in carma::monitor::MonitorSubsystem.

virtual std::string carma::monitor::MonitorComponent::leafToString	(	bool	verbose = `false`,
		bool	value = `true`,
		int	sampleIndex = `0`
	)		const

pure virtual

Dump all leaf nodes below this component to a string.

Leaf nodes should be MonitorPoints (or a subclass thereof). The string will potentially have many lines, and will end with a new line in all cases. The canonical name is used in the output.

Parameters

verbose	determines if a terse or verbose dump is done
value	determines if current value is output
sampleIndex	(0 is first sample)

Implemented in carma::monitor::MonitorPoint, and carma::monitor::MonitorContainer.

virtual ::std::string carma::monitor::MonitorComponent::monitorPointTags ( bool untagged = false ) const

pure virtual

Write list of monitor points and their tagIDs to a string, one monitor point per line.

Parameters

untagged Only list those MPs without tagIDs

Implemented in carma::monitor::MonitorPoint, and carma::monitor::MonitorContainer.

bool carma::monitor::MonitorComponent::operator!= ( const MonitorComponent & component ) const

Checks if components are not equal.

Parameters

component to compare to this component

See Also: operator==

virtual bool carma::monitor::MonitorComponent::operator== ( const MonitorComponent & component ) const

pure virtual

Interface (pure virtual) for comparison of components The derived class must implement this method.

Parameters

component to compare to this component

Implemented in carma::monitor::MonitorPointString, carma::monitor::MonitorPointComplex, carma::monitor::MonitorPoint, carma::monitor::MonitorContainer, and carma::monitor::MonitorPointNumeric.

virtual void carma::monitor::MonitorComponent::setCanonicalName ( const std::string & parents )

virtual

Recursively set the canonical component name for this and all below.

Parameters

parents used for levels above this,for example "parents.thisComponent.allbelow..."

See Also: getCanonicalName

Reimplemented in carma::monitor::MonitorContainer.

void carma::monitor::MonitorComponent::setDescription ( const std::string & text )

Set the verbose description of the monitor component.

Parameters

text	verbose description of the monitor component. White space allowed.

See Also: getDescription

void carma::monitor::MonitorComponent::setLongName ( const std::string & name )

Set the long name of the monitor component.

Parameters

name	long name of the monitor component. Embedded white space is allowed and encouraged.

See Also: getLongName

void carma::monitor::MonitorComponent::setName ( const std::string & name )

Set the leaf part of the canonical name of the monitor component.

Also sets the canonical name.

Parameters

name	of the monitor point. No embedded white space allowed.

See Also: getName

virtual void carma::monitor::MonitorComponent::setNoData ( ) const

pure virtual

Recursively mark all data samples as INVALID_NO_DATA.

Implemented in carma::monitor::MonitorPoint, and carma::monitor::MonitorContainer.

virtual void carma::monitor::MonitorComponent::setPersistent ( bool persistent )

pure virtual

Set the persistent attribute for the value of a MonitorPoint, or in the case of a container for its descendants (recursively).

Note that this method has no effect on a running FSP, which gets its persistence info from the MPML file. I.e. you can't change the persistence of a monitor point programmatically (dynamically).

Parameters

persistent true if the component's value is to be persistent across frames; false if it is to be invalidated after every frame is set.

Implemented in carma::monitor::MonitorPoint, and carma::monitor::MonitorContainer.

void carma::monitor::MonitorComponent::setShortName ( const std::string & name )

Set the short name of the monitor component.

Parameters

name	short name of the monitor component. No embedded white space allowed.

See Also: getShortName

void carma::monitor::MonitorComponent::setShortName	(	const std::string &	name,
		int	index
	)

Set the short name of the monitor component, with an index appended.

Parameters

name	short name of the monitor component.
index	- starting at one, appended to name No embedded white space allowed.

See Also: getShortName

virtual std::string carma::monitor::MonitorComponent::toString	(	bool	canonicalName = `false`,
		bool	verbose = `false`,
		bool	value = `true`,
		int	sampleIndex = `0`,
		int	indent = `0`
	)		const

pure virtual

Write this monitor component to a string.

If verbose, the string may have multiple lines but is guaranteed to be terminated with a newline. If not verbose, the string is guaranteed to be a single line without a newline.

Parameters

canonicalName	output canonicalName or leaf name
verbose	determines if a terse or verbose dump is done
value	determines if current value is output
sampleIndex	(0 is first sample)
indent	for this level (number of characters)

See Also: toStringAverage

Implemented in carma::monitor::MonitorPoint, and carma::monitor::MonitorContainer.

virtual std::string carma::monitor::MonitorComponent::toStringAverage	(	bool	canonicalName = `false`,
		bool	verbose = `false`,
		bool	value = `true`,
		int	indent = `0`
	)		const

pure virtual

Write this monitor component to a string, using frame average values.

If verbose, the string may have multiple lines but is guaranteed to be terminated with a newline. If not verbose, the string is guaranteed to be a single line without a newline.

Parameters

canonicalName	output canonicalName or leaf name
verbose	determines if a terse or verbose dump is done
value	determines if current value is output
indent	for this level (number of characters)

See Also: toString

Implemented in carma::monitor::MonitorPoint, and carma::monitor::MonitorContainer.

virtual std::string carma::monitor::MonitorComponent::transportStatisticsToString ( bool canonical = false ) const

virtual

Dump end-toe-end transport statistics (if available).

The string will potentially have many lines, and will end with a new line in all cases.

Parameters

canonical	determines if canonical or component name is output
indent	for this level in characters

Reimplemented in carma::monitor::MonitorSystem, and carma::monitor::MonitorSubsystem.

Friends And Related Function Documentation

std::ostream & operator<<	(	std::ostream &	os,
		const MonitorComponent &	component
	)

* cout << myComponent << endl;

*

might produce output that looks like this:

* mycomponent 3.14

*

Parameters

os	output ostream
component	to be stringified

Returns: The os output stream parameter so that stream insertions can be chained in the usual C++ way (as shown in the example). Example:
cout<<myComponent<<flush;

The documentation for this class was generated from the following file:

carma/monitor/MonitorComponent.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Related Functions

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation
