Abstract base class for a monitor point. More...

#include <carma/monitor/MonitorPoint.h>

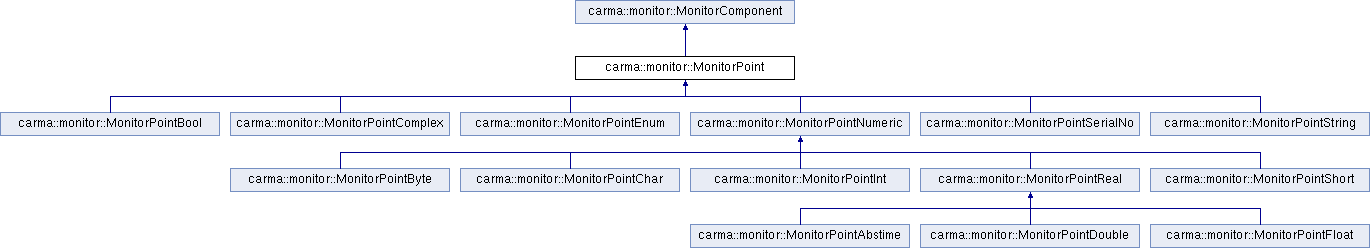

Inheritance diagram for carma::monitor::MonitorPoint:

Public Types
enum	BLANKING_FLAGGING { UNDETERMINED, OK, BLANKED, FLAGGED, BLANKED_FLAGGED, MAX_BLANKING_FLAGGING }
	Blanking/flagging status of the data. More...

enum	MONITOR_POINT_TYPE { MONITOR, CONTROL }
	Monitor point type. More...

enum	VALIDITY { INVALID_NO_DATA, INVALID_NO_HW, INVALID_HW_BAD, VALID, VALID_NOT_CHECKED, VALID_GOOD, VALID_WARNING, VALID_ERROR, VALID_WARNING_LOW, VALID_WARNING_HIGH, VALID_ERROR_LOW, VALID_ERROR_HIGH, MAX_VALIDITY }
	Validity states of the data value. More...

Public Types inherited from carma::monitor::MonitorComponent
enum	ARCHIVE_PRIORITY { VITAL, USEFUL, NORMAL, DEBUG, VERBOSE, DEFAULT, DONTARCHIVE }
	Archiving priority. More...

Public Member Functions
std::string	archivePriorityToString () const
	Get a string for the archive priority for this monitor point. More...

void	checkThreshold (const MonitorPointThreshold &threshold) const
	Method checks that threshold object corresponds to this monitor point - checks to see that threshold's tagID == this monitor point's tagID, and that value type of threshold == value type of this monitor point. More...

void	clearComment ()
	Clear all comment attributes for the monitor point. More...

virtual std::string	dumpSamples (bool includeAverage=true, bool includeValidity=true) const
	Create a string with sample and average values and validities. More...

bool	errorHighDefaultIsSet () const
	Returns true if a default value was set for errorHigh for this monitor point. More...

bool	errorLowDefaultIsSet () const
	Returns true if a default value was set for errorLow for this monitor point. More...

virtual void	evaluateTolerance (const MonitorPointThreshold &threshold)
	Set the validity flags for the MonitorPoint using the threshold limits stored in the input MonitorPointThreshold object. More...

ARCHIVE_PRIORITY	getArchivePriority () const
	Get the archive priority. More...

virtual std::string	getAverageToString () const =0
	Abstract method that returns the average value as a string. More...

virtual VALIDITY	getAveValidity () const
	Get the validity for the average. More...

BLANKING_FLAGGING	getBlankingFlagging () const
	Get the blanking/flagging flag for the average. More...

std::string	getComment () const
	Get a comment for the monitor point. More...

double	getCommentTime () const
	Get time last comment was inserted. More...

std::string	getCommentUser () const
	Get username that generated comment for the monitor point. More...

std::string	getCoreValueAsString (int sampleIndex=0) const
	Get value as a string using the underlying basic type representation. More...

MonitorValue	getErrorHighDefault () const
	Get the upper error default threshold. More...

MonitorValue	getErrorLowDefault () const
	Get the upper error default threshold. More...

MonitorPointSample	getMonitorPointSample (int sampleIndex) const
	Get the monitor point sample. More...

MonitorPointSample	getMonitorPointSample0 () const

MONITOR_POINT_TYPE	getMonitorPointType () const
	Get the type of the monitor point. More...

int	getNumSamples () const
	Get the number of samples per frame. More...

int	getNumValidSamples () const
	Get the number of valid samples per frame. More...

std::string	getPaddedAverageString (int width) const
	Gets the average value as a string, padded to requested width. More...

std::string	getPaddedAverageString () const
	Gets the average value as a string, padded to internal width. More...

std::string	getPaddedValueString (int width, int sampleIndex) const
	Gets the data value as a string, padded to requested width. More...

std::string	getPaddedValueString (int sampleIndex) const
	Gets the data value as a string, padded to internal width. More...

short	getPrecision () const
	Get the number of digits to the right of the decimal point when translating the value to a string. More...

MonitorPointSample	getSampleAverage () const

tagIDType	getTagID () const
	Get the tagID (unique identifier of monitor point). More...

std::string	getUnits () const
	Get the units string for the monitor point. More...

int	getUpdateInterval () const
	Get the basic sampling update interval in frames. More...

VALIDITY	getValidity (int sampleIndex) const
	Get the validity flag for a sample. More...

VALIDITY	getValidity () const

virtual std::string	getValueToString (int sampleIndex) const =0
	Abstract method that returns the data value as a string. More...

MonitorValueType	getValuetype () const
	Get the datatype of the value. More...

MonitorValue	getWarnHighDefault () const
	Get the upper warning default threshold. More...

MonitorValue	getWarnLowDefault () const
	Get the lower warning default threshold. More...

virtual short	getWidth () const
	Get the string length to use when interpreting the value to a string. More...

bool	hasAllData () const
	See if all MPs in this component and below have data samples. More...

virtual ::std::string	hierarchyToString (bool canonical=false, bool verbose=false, bool value=true, int sampleIndex=0, int indent=0, int levels=-1) const
	Dump this and all contained monitor components to a string. More...

virtual ::std::string	hierarchyToStringAverage (bool canonical=false, bool verbose=false, bool value=true, int indent=0, int levels=-1) const
	Dump this and all contained monitor components to a string. More...

virtual void	hierarchyToVector (::std::vector< ::std::string > &hierarchyList, bool canonical=false, bool verbose=false, int sampleIndex=0) const
	Dump this and all contained monitor component strings into a map hierarchy. More...

bool	isAveValid () const
	Check to see if the average is valid. More...

virtual bool	isMonitorPoint () const
	Identifies this component as a MonitorPoint or any derivative Should be over-ridden by the MonitorPoint class; others that don't derive from MP can use this default implementation. More...

bool	isPersistent () const
	Returns the persistent state of the data. More...

bool	isSnapshotAverage () const
	Returns state of snapshot averaging for this MP. More...

bool	isTimeSeries () const
	Are multiple samples in a frame a time series or an array. More...

bool	isValid (int sampleIndex) const
	Check if this monitor point validity is any of the valid states. More...

bool	isValid () const

virtual std::string	leafToString (bool verbose=false, bool value=true, int sampleIndex=0) const
	Dump all leaf nodes below this component to a string. More...

	MonitorPoint (const std::string &name, MonitorValueType valuetype, MONITOR_POINT_TYPE monitorPointType=MONITOR)
	Constructor, name is later used to lookup the tagID. More...

virtual std::string	monitorPointTags (bool untagged=false) const
	Write list of monitor points and their tagIDs to a string, one monitor point per line. More...

std::string	monitorPointTypeToString () const
	Get a string representation for the monitor point type of this monitor point. More...

virtual bool	operator< (const MonitorPoint &rhs) const
	Compares monitor point for precedence to the one passed. More...

virtual bool	operator== (const MonitorComponent &rhs) const
	Compares monitor point for equality to the monitor component passed. More...

virtual bool	operator== (const MonitorPoint &rhs) const
	Compares monitor point for equality to the one passed. More...

void	setAllValidity (VALIDITY validity, bool markMpAsModified=true) const
	Set the validity for all samples and the average. More...

void	setArchivePriority (ARCHIVE_PRIORITY priority)
	Set the archive priority Priority may be used by archiver to control data volume.,. More...

void	setAveValidity (VALIDITY validity) const
	Set the validity for the average. More...

void	setBlankingFlagging (BLANKING_FLAGGING flag) const
	Set the blanking/flagging flag for the average. More...

void	setComment (const std::string &text)
	Set a comment for the monitor point. More...

void	setComment (const std::string &text, const std::string &user, double mjd)
	Set all comment attributes for the monitor point. More...

void	setDefaultArchivePriority (ARCHIVE_PRIORITY priority)
	Set the default archive priority If the archive priority is set to DEFAULT, it is replaced with the new priority. More...

void	setErrorHighDefault (const MonitorValue threshold)
	Set the upper error default threshold. More...

void	setErrorLowDefault (const MonitorValue threshold)
	Set the upper error default threshold. More...

void	setMonitorPointHeader (MonitorPointHeader header)
	Set the monitor point header. More...

void	setNoData () const
	Recursively mark all data samples as INVALID_NO_DATA. More...

virtual void	setNumSamples (int nSamples) const
	Set the number of samples per frame. More...

void	setPersistent (bool persistent)
	Set the persistent state of the data. More...

void	setPrecision (short precision)
	Set the number of digits to the right of the decimal point when translating the value to a string. More...

void	setSnapshotAverage (bool state)
	Controls whether averaging is done as a normal true average or if it is just a snapshot of the last value. More...

void	setTagID (tagIDType tagID, bool assignedOTF)
	Set tagID. More...

virtual void	setTimeSeries (bool timeSeries)
	Determines whether data should be interpreted as time series or as an array (spectrum) when there are multiple samples per frame. More...

void	setUnits (const std::string &units)
	Get the units string for the monitor point. More...

void	setUpdateInterval (int interval)
	Set the basic sampling update interval. More...

void	setValidity (VALIDITY validity, int sampleIndex=0) const
	Set the validity for a single sample. More...

void	setWarnHighDefault (const MonitorValue threshold)
	Set the upper warning default threshold. More...

void	setWarnLowDefault (const MonitorValue threshold)
	Set the lower warning default threshold. More...

void	setWidth (short width) const
	Set the maximum width(length) of the string for interpreting the value to a string. More...

std::string	toString (bool canonicalName=false, bool verbose=false, bool value=true, int sampleIndex=0, int indent=0) const
	Write this monitor component to a string. More...

std::string	toStringAverage (bool canonicalName=false, bool verbose=false, bool value=true, int indent=0) const
	Write this monitor component to a string, using frame average values. More...

virtual std::string	toStringShort (int sampleIndex=0) const
	Dumps name and value of monitor point as a short string (name=value). More...

virtual void	updateFrameAverage (ScratchAverages &scratchAvgs)=0
	Abstract method that updates the average value/validity for the frame. More...

std::string	valuetypeToString () const
	Get a string representation for the datatype of this monitor point. More...

bool	warnHighDefaultIsSet () const
	Returns true if a default value was set for warnHigh for this monitor point. More...

bool	warnLowDefaultIsSet () const
	Returns true if a default value was set for warnLow for this monitor point. More...

virtual	~MonitorPoint ()
	Destructor. More...

Public Member Functions inherited from carma::monitor::MonitorComponent
const std::string &	getCanonicalName () const
	Get the canonical component name. More...

virtual const std::string &	getDescription () const
	Get the verbose description of the monitor component. More...

virtual const std::string &	getLongName () const
	Get the long name of the monitor component. More...

virtual const std::string &	getName () const
	Get the component name (leaf part of canonical name). More...

virtual std::string	getPhysicalDeviceName () const
	Get the physical device name, if one exists. More...

std::string	getPhysicalDeviceString () const
	Get the physical device name, if one exists, enclosed in parentheses. More...

std::string	getPhysicalName () const
	Get the physical name, which is location.device.component or if there is no associated physical device it is just component name. More...

virtual const std::string &	getShortName () const
	Get the short name of the monitor component. More...

virtual bool	isSubsystem () const
	Check if the component is a MonitorSubsystem. More...

	MonitorComponent (const std::string &name)
	Constructor. More...

bool	operator!= (const MonitorComponent &component) const
	Checks if components are not equal. More...

virtual void	setCanonicalName (const std::string &parents)
	Recursively set the canonical component name for this and all below. More...

void	setDescription (const std::string &text)
	Set the verbose description of the monitor component. More...

void	setLongName (const std::string &name)
	Set the long name of the monitor component. More...

void	setName (const std::string &name)
	Set the leaf part of the canonical name of the monitor component. More...

void	setShortName (const std::string &name)
	Set the short name of the monitor component. More...

void	setShortName (const std::string &name, int index)
	Set the short name of the monitor component, with an index appended. More...

virtual std::string	transportStatisticsToString (bool canonical=false) const
	Dump end-toe-end transport statistics (if available). More...

virtual	~MonitorComponent ()
	Destructor. More...

Static Public Member Functions
static std::string	blankingFlaggingToString (BLANKING_FLAGGING flag)
	Get a string representation for a blanking/flagging flag. More...

static bool	isValid (VALIDITY validity)
	Check for any of the valid states. More...

static std::string	monitorPointTypeToString (MONITOR_POINT_TYPE monitorPointType)
	Get a string representation for a monitor point type. More...

static std::string	validityToString (VALIDITY validity)
	Get a string representation for a validity. More...

static std::string	valuetypeToString (MonitorValueType valuetype)
	Get a string representation for a valuetype. More...

Static Public Member Functions inherited from carma::monitor::MonitorComponent
static std::string	archivePriorityToString (MonitorComponent::ARCHIVE_PRIORITY priority)
	Get a string representation for an archive priority. More...

static std::string	convertAllLower (std::string name)
	Convert a name to all lower case. More...

Protected Member Functions
void	clearAllDefaults ()
	Clears all default threshold values (makes them zero) and sets thresholdFlags_ to THRESHOLD_NONE_SET. More...

bool	getAveBoolean () const

char	getAveChar () const

::std::complex< float >	getAveComplex () const

double	getAveDouble () const

float	getAveFloat () const

long	getAveLong () const

long	getAveSerialNo () const

short	getAveShort () const

std::string	getSnapshotAverageToString () const

bool	getValueBoolean (int sampleIndex) const

char	getValueChar (int sampleIndex) const

::std::complex< float >	getValueComplex (int sampleIndex) const

double	getValueDouble (int sampleIndex) const

float	getValueFloat (int sampleIndex) const

long	getValueLong (int sampleIndex) const

long	getValueSerialNo () const

short	getValueShort (int sampleIndex) const

MonitorValueStringChunk	getValueStringChunk (int sampleIndex) const

bool	isEqualTo (const MonitorPoint &mp) const

void	setAve (char d) const

void	setAve (short d) const

void	setAve (long d) const

void	setAve (bool d) const

void	setAve (float d) const

void	setAve (double d) const

void	setAve (const ::std::complex< float > &d) const

void	setAveSerialNo (long d) const

void	setValue (char d, int sampleIndex) const

void	setValue (short d, int sampleIndex) const

void	setValue (long d, int sampleIndex) const

void	setValue (bool d, int sampleIndex) const

void	setValue (float d, int sampleIndex) const

void	setValue (double d, int sampleIndex) const

void	setValue (const ::std::complex< float > &d, int sampleIndex) const

void	setValueSerialNo (long d) const

void	setValuesStringChunksAndValidities (const MonitorValueStringChunk *chunks, int numChunks, VALIDITY validity) const

Protected Attributes
bool	timeSeries_

short	width_

Protected Attributes inherited from carma::monitor::MonitorComponent
bool	debug_

Additional Inherited Members
Related Functions inherited from carma::monitor::MonitorComponent
std::ostream &	operator<< (std::ostream &os, const MonitorComponent &component)

Detailed Description

Abstract base class for a monitor point.

Concrete class will implement (by convention) a typed getValue()/setValue pair that distinguishes the different specialized types of monitor points.

The number of samples per frame defaults to one.

There are several aspects regarding the name of a monitor point:

name - the monitor point name, no hierarchy (leaf node name). This name is not necessarily unique, e.g. temperature2
subsystemName - subsystem that a monitor point belongs to, e.g. ovro3
canonicalName - full physical name starting at the subsystem. This is the unique name of a monitor point, and can be used to get monitorPointID e.g. ovro3.cryo.temperature2
shortName - used for a compact label, e.g. temp2
hierarchicalName - hierarchical name in a given situation
in a subsystem, e.g. ovro3.cryo.temperature2
in the ACC (physical), e.g. carma.ovro3.cryo.temperature2
in the ACC (logical), e.g. science1.ant2.cryo.temperature2

See Also: http://www.mmarray.org/project/WP/Monitoring/monitoringDesign.pdf

Definition at line 68 of file MonitorPoint.h.

Member Enumeration Documentation

enum carma::monitor::MonitorPoint::BLANKING_FLAGGING

Blanking/flagging status of the data.

OK - The data is not blanked or flagged inside the thresholds.
UNDETERMINED - The blanking/flagging status not yet determined.
BLANKED - The data is blanked.
FLAGGED - The data is flagged.
BLANKED_FLAGGED - The data is both blanked and flagged.

Definition at line 159 of file MonitorPoint.h.

enum carma::monitor::MonitorPoint::MONITOR_POINT_TYPE

Monitor point type.

Enumerator
MONITOR	Simple monitor point.
CONTROL	A control point.

Definition at line 171 of file MonitorPoint.h.

enum carma::monitor::MonitorPoint::VALIDITY

Validity states of the data value.

Many (but not all) of the monitor points have values that can be checked against contiguous ranges of values for being good, warning or error. Other monitor points may have custom code to check for good, warning or errors, without the range concept. For numeric data using the range construct, there is a good range that is bracketed by a warning range that is bracketed by an an error range.

 ||
 ||            ERROR_HIGH
 ||
 --------- High Error Threshold ----------
 ||
 ||            WARNING_HIGH
 ||
 --------- High Warning Threshold ----------
 ||  ////////////////////////////////////
 ||  ////          GOOD              ////
 ||  ////////////////////////////////////
 --------- Low Warning Threshold ----------
 ||
 ||            WARNING_LOW
 ||
 --------- Low Error Threshold ----------
 ||
 ||            ERROR_LOW
 ||

INVALID_NO_DATA - Data is invalid because the data was was not sent on time (the data transmission can be broken anywhere along the chain)
INVALID_NO_HW - Data is invalid because the hardware does not exist (or can't be detected)
INVALID_HW_BAD - Data is invalid because the hardware data collection got a bad sample (e.g. A/D conversion failure)
VALID - the data is valid and threshold do not apply to this type of data.
VALID_NOT_CHECKED - the data is valid but has not been checked against the thresholds
VALID_GOOD - the data is valid and its value is inside the thresholds
VALID_WARNING- the data is valid but the value warrants a warning (not using range thresholds)
VALID_ERROR - the data is valid but bad (not using range thresholds)
VALID_WARNING_LOW - the data is valid and below the lower warning range threshold
VALID_ERROR_LOW - the data is valid and below the lower error range threshold
VALID_WARNING_HIGH - the data is valid and above the upper warning range threshold
VALID_ERROR_HIGH - the data is valid and above the upper error range threshold

Definition at line 132 of file MonitorPoint.h.

Constructor & Destructor Documentation

carma::monitor::MonitorPoint::MonitorPoint	(	const std::string &	name,
		MonitorValueType	valuetype,
		MONITOR_POINT_TYPE	monitorPointType = `MONITOR`
	)

Constructor, name is later used to lookup the tagID.

Number of samples per frame is set to one.

Parameters

name	of the monitor point - no hierarchy (e.g. powerSupply5volt)
valuetype	(datatype of the value) of the monitor point

virtual carma::monitor::MonitorPoint::~MonitorPoint ( )

virtual

Destructor.

Nothing fancy here - the dynamic storage is managed elsewhere.

Member Function Documentation

std::string carma::monitor::MonitorPoint::archivePriorityToString ( ) const

Get a string for the archive priority for this monitor point.

static std::string carma::monitor::MonitorPoint::blankingFlaggingToString ( BLANKING_FLAGGING flag )

static

Get a string representation for a blanking/flagging flag.

Parameters

flag

void carma::monitor::MonitorPoint::checkThreshold ( const MonitorPointThreshold & threshold ) const

Method checks that threshold object corresponds to this monitor point - checks to see that threshold's tagID == this monitor point's tagID, and that value type of threshold == value type of this monitor point.

If the threshold fails the test, then the method throws an ErrorException with a canned error message.

Parameters

threshold,const MonitorPointThreshold& reference to a MonitorPointThreshold object.

Exceptions

throws a ::carma::monitor::InvalidThresholdException with a canned error message.

void carma::monitor::MonitorPoint::clearAllDefaults ( )

protected

Clears all default threshold values (makes them zero) and sets thresholdFlags_ to THRESHOLD_NONE_SET.

void carma::monitor::MonitorPoint::clearComment ( )

Clear all comment attributes for the monitor point.

virtual std::string carma::monitor::MonitorPoint::dumpSamples	(	bool	includeAverage = `true`,
		bool	includeValidity = `true`
	)		const

virtual

Create a string with sample and average values and validities.

Debugging quality. The validity is represented by a 'G' or 'B' for good or bad.

Parameters

includeAverage	defaults to true
includeValidity	defaults to true

bool carma::monitor::MonitorPoint::errorHighDefaultIsSet ( ) const

Returns true if a default value was set for errorHigh for this monitor point.

Should be tested before using the value returned from getErrorHigh.

Parameters

none

Returns: bool true if default was set for errorHigh threshold.

bool carma::monitor::MonitorPoint::errorLowDefaultIsSet ( ) const

Returns true if a default value was set for errorLow for this monitor point.

Should be tested before using the value returned from getErrorLowDefault.

Parameters

none

Returns: bool true if default was set for errorLow threshold.

virtual void carma::monitor::MonitorPoint::evaluateTolerance ( const MonitorPointThreshold & threshold )

virtual

Set the validity flags for the MonitorPoint using the threshold limits stored in the input MonitorPointThreshold object.

Parameters

threshold MonitorPointThreshold object holding user set threshold limits for this monitor point

See Also: setErrorHigh, setWarnHigh, setWarnLow, setErrorLow; getErrorHigh, getWarnHigh, getWarnLow, getErrorLow

Reimplemented in carma::monitor::MonitorPointSerialNo, carma::monitor::MonitorPointString, carma::monitor::MonitorPointAbstime, carma::monitor::MonitorPointComplex, carma::monitor::MonitorPointDouble, carma::monitor::MonitorPointFloat, carma::monitor::MonitorPointEnum, carma::monitor::MonitorPointBool, carma::monitor::MonitorPointInt, carma::monitor::MonitorPointShort, carma::monitor::MonitorPointByte, and carma::monitor::MonitorPointChar.

carma::monitor::MonitorComponent::ARCHIVE_PRIORITY carma::monitor::MonitorPoint::getArchivePriority ( ) const

Get the archive priority.

Definition at line 1027 of file MonitorPoint.h.

virtual std::string carma::monitor::MonitorPoint::getAverageToString ( ) const

pure virtual

Abstract method that returns the average value as a string.

Must be implemented by concrete class.

Returns: average data value as a string

Implemented in carma::monitor::MonitorPointSerialNo, carma::monitor::MonitorPointString, carma::monitor::MonitorPointAbstime, carma::monitor::MonitorPointComplex, carma::monitor::MonitorPointDouble, carma::monitor::MonitorPointFloat, carma::monitor::MonitorPointBool, carma::monitor::MonitorPointInt, carma::monitor::MonitorPointShort, carma::monitor::MonitorPointByte, and carma::monitor::MonitorPointChar.

virtual VALIDITY carma::monitor::MonitorPoint::getAveValidity ( ) const

virtual

Get the validity for the average.

This is virtual in case a specific type of monitor point needs to do something different from the default implementation, which returns the validity of MonitorSample(0), which is normally reserved for the averagge.

See Also: getValidity setValidity

carma::monitor::MonitorPoint::BLANKING_FLAGGING carma::monitor::MonitorPoint::getBlankingFlagging ( ) const

Get the blanking/flagging flag for the average.

Only applies for the average.

Returns: blanking/flagging status of the average of the monitor point.

See Also: setBlankingFlagging

Definition at line 1088 of file MonitorPoint.h.

std::string carma::monitor::MonitorPoint::getComment ( ) const

Get a comment for the monitor point.

For example, "Thresholds changed because of A/D offset" The comment time field is automatically updated.

Returns: comment string

See Also: setComment, getCommentTime, getCommentUser

double carma::monitor::MonitorPoint::getCommentTime ( ) const

Get time last comment was inserted.

Returns: time of last comment in MJD

See Also: getComment, setComment

std::string carma::monitor::MonitorPoint::getCommentUser ( ) const

Get username that generated comment for the monitor point.

Returns: username (userID) of originator of comment

See Also: setComment, getComment, getComment

std::string carma::monitor::MonitorPoint::getCoreValueAsString ( int sampleIndex = 0 ) const

Get value as a string using the underlying basic type representation.

Returns underlying core value as a string with the full precision and range of it's basic type.

MonitorValue carma::monitor::MonitorPoint::getErrorHighDefault ( ) const

Get the upper error default threshold.

Test with errorHighDefaultIsSet before getting the value. The default value is sometimes in range of valid values, so it is best to test whether the value was set before using the value.

Returns: threshold

See Also: setErrorHighDefault, setWarnHighDefault, setWarnLowDefault, setErrorLowDefault; getErrorHighDefault, getWarnHighDefault, getWarnLowDefault, getErrorLowDefault; errorHighDefaultIsSet

MonitorValue carma::monitor::MonitorPoint::getErrorLowDefault ( ) const

Get the upper error default threshold.

Test with errorLowDefaultIsSet before getting the value. The default value is sometimes in range of valid values, so it is best to test whether the value was set before using the value.

Returns: threshold

See Also: setErrorHighDefault, setWarnHighDefault, setWarnLowDefault, setErrorLowDefault; getErrorHighDefault, getWarnHighDefault, getWarnLowDefault, getErrorLowDefault; errorLowDefaultIsSet

MonitorPointSample carma::monitor::MonitorPoint::getMonitorPointSample ( int sampleIndex ) const

Get the monitor point sample.

Parameters

sampleIndex sample index (0 is first sample)

carma::monitor::MonitorPoint::MONITOR_POINT_TYPE carma::monitor::MonitorPoint::getMonitorPointType ( ) const

Get the type of the monitor point.

Returns: type of the monitor point.

See Also: MonitorPoint

Definition at line 1020 of file MonitorPoint.h.

int carma::monitor::MonitorPoint::getNumSamples ( ) const

Get the number of samples per frame.

Returns: number of samples per frame.

See Also: setNumSamples

Definition at line 1041 of file MonitorPoint.h.

int carma::monitor::MonitorPoint::getNumValidSamples ( ) const

Get the number of valid samples per frame.

Returns: number of valid samples per frame.

See Also: isValid

std::string carma::monitor::MonitorPoint::getPaddedAverageString ( int width ) const

Gets the average value as a string, padded to requested width.

If the interpretation results in a string longer than width, the string will be truncated to width and represented by asterisks "*"'s.

Parameters

width the string width to return

Returns: average value as a string

std::string carma::monitor::MonitorPoint::getPaddedAverageString ( ) const

Gets the average value as a string, padded to internal width.

If the interpretation results in a string longer than width, the string will be truncated to width and represented by asterisks "*"'s.

Returns: average value as a string

std::string carma::monitor::MonitorPoint::getPaddedValueString	(	int	width,
		int	sampleIndex
	)		const

Gets the data value as a string, padded to requested width.

If the interpretation results in a string longer than width, the string will be truncated to width and represented by asterisks "*"'s.

Parameters

width	the string width to return
sampleIndex	sample index (0 is first sample), negative gets ave

Returns: data value as a string

std::string carma::monitor::MonitorPoint::getPaddedValueString ( int sampleIndex ) const

Gets the data value as a string, padded to internal width.

If the interpretation results in a string longer than width, the string will be truncated to width and represented by asterisks "*"'s.

Parameters

sampleIndex sample index (0 is first sample), negative gets ave

Returns: data value as a string

short carma::monitor::MonitorPoint::getPrecision ( ) const

Get the number of digits to the right of the decimal point when translating the value to a string.

Returns: number of digits to the right of the decimal

See Also: setPrecision

carma::monitor::tagIDType carma::monitor::MonitorPoint::getTagID ( ) const

Get the tagID (unique identifier of monitor point).

Returns: tagID.

Definition at line 1006 of file MonitorPoint.h.

std::string carma::monitor::MonitorPoint::getUnits ( ) const

Get the units string for the monitor point.

White space is not allowed. An example is "milliamps".

Returns: the units for the monitor point.

See Also: setUnits

int carma::monitor::MonitorPoint::getUpdateInterval ( ) const

Get the basic sampling update interval in frames.

Definition at line 1034 of file MonitorPoint.h.

VALIDITY carma::monitor::MonitorPoint::getValidity ( int sampleIndex ) const

Get the validity flag for a sample.

Returns: validity of the monitor point.

Parameters

sampleIndex sample number (0 is first sample), defaults to 0

See Also: setValidity

virtual std::string carma::monitor::MonitorPoint::getValueToString ( int sampleIndex ) const

pure virtual

Abstract method that returns the data value as a string.

Must be implemented by concrete class.

Parameters

sampleIndex sample index (0 is first sample), negative gets ave

Returns: data value as a string

Implemented in carma::monitor::MonitorPointSerialNo, carma::monitor::MonitorPointString, carma::monitor::MonitorPointAbstime, carma::monitor::MonitorPointComplex, carma::monitor::MonitorPointDouble, carma::monitor::MonitorPointFloat, carma::monitor::MonitorPointBool, carma::monitor::MonitorPointInt, carma::monitor::MonitorPointShort, carma::monitor::MonitorPointByte, and carma::monitor::MonitorPointChar.

carma::monitor::MonitorValueType carma::monitor::MonitorPoint::getValuetype ( ) const

Get the datatype of the value.

Returns: datatype of the monitor point value.

See Also: MonitorPoint

Definition at line 1013 of file MonitorPoint.h.

MonitorValue carma::monitor::MonitorPoint::getWarnHighDefault ( ) const

Get the upper warning default threshold.

Test with warnHighDefaultIsSet before getting the value. The default value is sometimes in range of valid values, so it is best to test whether the value was set before using the value.

Returns: threshold

See Also: setErrorHighDefault, setWarnHighDefault, setWarnLowDefault, setErrorLowDefault; getErrorHighDefault, getWarnHighDefault, getWarnLowDefault, getErrorLowDefault; warnHighDefaultIsSet

MonitorValue carma::monitor::MonitorPoint::getWarnLowDefault ( ) const

Get the lower warning default threshold.

Test with warnLowDefaultIsSet before getting the value. The default value is sometimes in range of valid values, so it is best to test whether the value was set before using the value.

Returns: threshold

See Also: setErrorHighDefault, setWarnHighDefault, setWarnLowDefault, setErrorLowDefault; getErrorHighDefault, getWarnHighDefault, getWarnLowDefault, getErrorLowDefault; warnLowDefaultIsSet

virtual short carma::monitor::MonitorPoint::getWidth ( ) const

virtual

Get the string length to use when interpreting the value to a string.

Returns: width of the string representing the monitor point value

See Also: setWidth

Reimplemented in carma::monitor::MonitorPointEnum.

bool carma::monitor::MonitorPoint::hasAllData ( ) const

virtual

See if all MPs in this component and below have data samples.

Can be time consuming to check a large branch.

Implements carma::monitor::MonitorComponent.

virtual ::std::string carma::monitor::MonitorPoint::hierarchyToString	(	bool	canonical = `false`,
		bool	verbose = `false`,
		bool	value = `true`,
		int	sampleIndex = `0`,
		int	indent = `0`,
		int	levels = `-1`
	)		const

virtual

Dump this and all contained monitor components to a string.

The string will potentially have many lines, and will end with a new line in all cases.

Parameters

canonical	determines if canonical or component name is output
verbose	determines if a terse or verbose dump is done
value	determines if current value is output
sampleIndex	(0 is first sample)
indent	for this level in characters
levels	number of levels below this to descend; -1 means all

Implements carma::monitor::MonitorComponent.

virtual ::std::string carma::monitor::MonitorPoint::hierarchyToStringAverage	(	bool	canonical = `false`,
		bool	verbose = `false`,
		bool	value = `true`,
		int	indent = `0`,
		int	levels = `-1`
	)		const

virtual

Dump this and all contained monitor components to a string.

The frame average value is output. The string will potentially have many lines, and will end with a new line in all cases.

Parameters

canonical	determines if canonical or component name is output
verbose	determines if a terse or verbose dump is done
value	determines if current value is output
indent	for this level in characters
levels	number of levels below this to descend; -1 means all

Implements carma::monitor::MonitorComponent.

virtual void carma::monitor::MonitorPoint::hierarchyToVector	(	::std::vector< ::std::string > &	hierarchyList,
		bool	canonical = `false`,
		bool	verbose = `false`,
		int	sampleIndex = `0`
	)		const

virtual

Dump this and all contained monitor component strings into a map hierarchy.

Parameters

canonical	determines if canonical or component name is output
verbose	determines if a terse or verbose dump is done

Implements carma::monitor::MonitorComponent.

bool carma::monitor::MonitorPoint::isAveValid ( ) const

Check to see if the average is valid.

Returns: true if the average is valid

Definition at line 1081 of file MonitorPoint.h.

virtual bool carma::monitor::MonitorPoint::isMonitorPoint ( ) const

virtual

Identifies this component as a MonitorPoint or any derivative Should be over-ridden by the MonitorPoint class; others that don't derive from MP can use this default implementation.

Used to speed up iteration through a monitor hierarchy.

Returns: true if the component is a MonitorPoint or any derivative

Reimplemented from carma::monitor::MonitorComponent.

bool carma::monitor::MonitorPoint::isPersistent ( ) const

Returns the persistent state of the data.

See Also: setPersistent

Definition at line 999 of file MonitorPoint.h.

bool carma::monitor::MonitorPoint::isSnapshotAverage ( ) const

Returns state of snapshot averaging for this MP.

See Also: setSnapshotAverage

Definition at line 1047 of file MonitorPoint.h.

bool carma::monitor::MonitorPoint::isTimeSeries ( ) const

Are multiple samples in a frame a time series or an array.

Definition at line 992 of file MonitorPoint.h.

bool carma::monitor::MonitorPoint::isValid ( VALIDITY validity )

static

Check for any of the valid states.

Parameters

validity to check

Definition at line 1074 of file MonitorPoint.h.

bool carma::monitor::MonitorPoint::isValid ( int sampleIndex ) const

Check if this monitor point validity is any of the valid states.

Parameters

sampleIndex sample index (0 is first sample), defaults to 0

virtual std::string carma::monitor::MonitorPoint::leafToString	(	bool	verbose = `false`,
		bool	value = `true`,
		int	sampleIndex = `0`
	)		const

virtual

Dump all leaf nodes below this component to a string.

Leaf nodes should be MonitorPoints (or a subclass thereof). The string will potentially have many lines, and will end with a new line in all cases. The canonical name is used in the output.

Parameters

verbose	determines if a terse or verbose dump is done
value	determines if current value is output
sampleIndex	(0 is first sample)

Implements carma::monitor::MonitorComponent.

virtual std::string carma::monitor::MonitorPoint::monitorPointTags ( bool untagged = false ) const

virtual

Write list of monitor points and their tagIDs to a string, one monitor point per line.

Parameters

untagged Only list those MPs without tagIDs

Implements carma::monitor::MonitorComponent.

static std::string carma::monitor::MonitorPoint::monitorPointTypeToString ( MONITOR_POINT_TYPE monitorPointType )

static

Get a string representation for a monitor point type.

Parameters

monitorPointType

std::string carma::monitor::MonitorPoint::monitorPointTypeToString ( ) const

Get a string representation for the monitor point type of this monitor point.

virtual bool carma::monitor::MonitorPoint::operator< ( const MonitorPoint & rhs ) const

virtual

Compares monitor point for precedence to the one passed.

This monitor point precedes the one passed if this monitor point's tagID is less than that of one passed. (*this) < (mpoint) == (this->getTagID() < mpoint.getTagID())

Parameters

rhs	monitor point to compare to

virtual bool carma::monitor::MonitorPoint::operator== ( const MonitorComponent & rhs ) const

virtual

Compares monitor point for equality to the monitor component passed.

The names must match; value checks will have to be implemented by the derived types.

Parameters

rhs	monitor component to compare to

Implements carma::monitor::MonitorComponent.

Reimplemented in carma::monitor::MonitorPointString, carma::monitor::MonitorPointComplex, and carma::monitor::MonitorPointNumeric.

virtual bool carma::monitor::MonitorPoint::operator== ( const MonitorPoint & rhs ) const

virtual

Compares monitor point for equality to the one passed.

The name and tagID's must match; value checks will have to be implemented by the derived types.

Parameters

rhs	monitor point to compare to

void carma::monitor::MonitorPoint::setAllValidity	(	VALIDITY	validity,
		bool	markMpAsModified = `true`
	)		const

Set the validity for all samples and the average.

Parameters

validity of the monitor point.

See Also: getValidity setValidity

void carma::monitor::MonitorPoint::setArchivePriority ( ARCHIVE_PRIORITY priority )

Set the archive priority Priority may be used by archiver to control data volume.,.

Parameters

priority the priority for archiving

void carma::monitor::MonitorPoint::setAveValidity ( VALIDITY validity ) const

Set the validity for the average.

See Also: getValidity setValidity

void carma::monitor::MonitorPoint::setBlankingFlagging ( BLANKING_FLAGGING flag ) const

Set the blanking/flagging flag for the average.

Blanking/flagging only apply to the average.

Parameters

flag	blanking/flagging status of the monitor point.

See Also: getBlankingFlagging

void carma::monitor::MonitorPoint::setComment ( const std::string & text )

Set a comment for the monitor point.

For example, "Thresholds changed because of A/D offset", or "Intermittent encoder readout error around 25 degrees". The comment time field is automatically updated. Because the comments are usually retrieved from a configuration along with the time of the comment and username, this interface is usually just used for debugging. The username "test" is automatically inserted.

Parameters

text string

See Also: getComment, getCommentTime, getCommentUser

void carma::monitor::MonitorPoint::setComment	(	const std::string &	text,
		const std::string &	user,
		double	mjd
	)

Set all comment attributes for the monitor point.

Used when setting from a configuration file or database.

Parameters

text	string
user	- userid for author of the comment
mjd	- date of origin of comment

See Also: getComment, getCommentTime, getCommentUser

void carma::monitor::MonitorPoint::setDefaultArchivePriority ( ARCHIVE_PRIORITY priority )

Set the default archive priority If the archive priority is set to DEFAULT, it is replaced with the new priority.

Parameters

priority the priority for archiving

void carma::monitor::MonitorPoint::setErrorHighDefault ( const MonitorValue threshold )

Set the upper error default threshold.

Parameters

threshold

See Also: setErrorHighDefault, setWarnHighDefault, setWarnLowDefault, setErrorLowDefault; getErrorHighDefault, getWarnHighDefault, getWarnLowDefault, getErrorLowDefault

void carma::monitor::MonitorPoint::setErrorLowDefault ( const MonitorValue threshold )

Set the upper error default threshold.

Parameters

threshold

See Also: setErrorHighDefault, setWarnHighDefault, setWarnLowDefault, setErrorLowDefault; getErrorHighDefault, getWarnHighDefault, getWarnLowDefault, getErrorLowDefault

void carma::monitor::MonitorPoint::setMonitorPointHeader ( MonitorPointHeader header )

Set the monitor point header.

The monitor point is not usable until the header has been set and storage set.

void carma::monitor::MonitorPoint::setNoData ( ) const

virtual

Recursively mark all data samples as INVALID_NO_DATA.

Implements carma::monitor::MonitorComponent.

virtual void carma::monitor::MonitorPoint::setNumSamples ( int nSamples ) const

virtual

Set the number of samples per frame.

This is virtual because some monitor points may want to restrict the number of samples per frame.

Parameters

nSamples number of samples per frame.

See Also: getNumSamples

Reimplemented in carma::monitor::MonitorPointSerialNo.

void carma::monitor::MonitorPoint::setPersistent ( bool persistent )

virtual

Set the persistent state of the data.

If the data is not persistent then immediately after the write() method is called the data are set to INVALID_NO_DATA. If it is persistent then the validity is not changed after the write.

Parameters

persistent

See Also: isPersistent

Implements carma::monitor::MonitorComponent.

void carma::monitor::MonitorPoint::setPrecision ( short precision )

Set the number of digits to the right of the decimal point when translating the value to a string.

This is only used for monitor points that have values that are real numbers, but has been included in the base class so that the precision may be manipulated on the base class rather than the derived class.

Parameters

precision number of digits to the right of the decimal

See Also: getPrecision

void carma::monitor::MonitorPoint::setSnapshotAverage ( bool state )

Controls whether averaging is done as a normal true average or if it is just a snapshot of the last value.

Snapshot mode is useful for things that are averaged in other parts of the code and then passed to an averager.

Parameters

state if true, snapshot averaging is done; if false, normal averaging

void carma::monitor::MonitorPoint::setTagID	(	tagIDType	tagID,
		bool	assignedOTF
	)

Set tagID.

Parameters

tagID	tag id to assign to MP
assignedOTF	if true the MP tagID is assigned on the fly

Definition at line 1054 of file MonitorPoint.h.

virtual void carma::monitor::MonitorPoint::setTimeSeries ( bool timeSeries )

virtual

Determines whether data should be interpreted as time series or as an array (spectrum) when there are multiple samples per frame.

Only numeric types can be an array, so the default implementation of this method throws an exception. Default is time series.

Parameters

timeSeries true if data is time series, false if array

Exceptions

ErrorException .

Reimplemented in carma::monitor::MonitorPointNumeric.

void carma::monitor::MonitorPoint::setUnits ( const std::string & units )

Get the units string for the monitor point.

Parameters

units for the monitor point. White space allowed.

See Also: getUnits

void carma::monitor::MonitorPoint::setUpdateInterval ( int interval )

Set the basic sampling update interval.

This can be many frames in length. Set to 1 if there are multiple samples in a frame. May be used by archiver to control data volume.

Parameters

interval sampling interval in half second frames

void carma::monitor::MonitorPoint::setValidity	(	VALIDITY	validity,
		int	sampleIndex = `0`
	)		const

Set the validity for a single sample.

Parameters

validity	of the monitor point.
sampleIndex	sample index (0 is first sample), defaults to 0

See Also: getValidity

void carma::monitor::MonitorPoint::setWarnHighDefault ( const MonitorValue threshold )

Set the upper warning default threshold.

Parameters

threshold

See Also: setErrorHighDefault, setWarnHighDefault, setWarnLowDefault, setErrorLowDefault; getErrorHighDefault, getWarnHighDefault, getWarnLowDefault, getErrorLowDefault

void carma::monitor::MonitorPoint::setWarnLowDefault ( const MonitorValue threshold )

Set the lower warning default threshold.

Parameters

threshold

See Also: setErrorHighDefault, setWarnHighDefault, setWarnLowDefault, setErrorLowDefault; getErrorHighDefault, getWarnHighDefault, getWarnLowDefault, getErrorLowDefault

void carma::monitor::MonitorPoint::setWidth ( short width ) const

Set the maximum width(length) of the string for interpreting the value to a string.

Parameters

width of the returned string

See Also: getWidth, getValueToString

std::string carma::monitor::MonitorPoint::toString	(	bool	canonicalName = `false`,
		bool	verbose = `false`,
		bool	value = `true`,
		int	sampleIndex = `0`,
		int	indent = `0`
	)		const

virtual

Write this monitor component to a string.

If verbose, the string may have multiple lines but is guaranteed to be terminated with a newline. If not verbose, the string is guaranteed to be a single line without a newline.

Parameters

canonicalName	output canonicalName or leaf name
verbose	determines if a terse or verbose dump is done
value	determines if current value is output
sampleIndex	(0 is first sample)
indent	for this level (number of characters)

See Also: toStringAverage

Implements carma::monitor::MonitorComponent.

std::string carma::monitor::MonitorPoint::toStringAverage	(	bool	canonicalName = `false`,
		bool	verbose = `false`,
		bool	value = `true`,
		int	indent = `0`
	)		const

virtual

Write this monitor component to a string, using frame average values.

If verbose, the string may have multiple lines but is guaranteed to be terminated with a newline. If not verbose, the string is guaranteed to be a single line without a newline.

Parameters

canonicalName	output canonicalName or leaf name
verbose	determines if a terse or verbose dump is done
value	determines if current value is output
indent	for this level (number of characters)

See Also: toString

Implements carma::monitor::MonitorComponent.

virtual std::string carma::monitor::MonitorPoint::toStringShort ( int sampleIndex = 0 ) const

virtual

Dumps name and value of monitor point as a short string (name=value).

No carriage returns or line feeds.

Parameters

sampleIndex sample index (0 is first sample), negative gets ave

Returns: just the name=value.

virtual void carma::monitor::MonitorPoint::updateFrameAverage ( ScratchAverages & scratchAvgs )

pure virtual

Abstract method that updates the average value/validity for the frame.

Both computes and stores, based on the sample values/validities. Must be implemented by concrete class.

Implemented in carma::monitor::MonitorPointSerialNo, carma::monitor::MonitorPointString, carma::monitor::MonitorPointAbstime, carma::monitor::MonitorPointComplex, carma::monitor::MonitorPointDouble, carma::monitor::MonitorPointFloat, carma::monitor::MonitorPointEnum, carma::monitor::MonitorPointBool, carma::monitor::MonitorPointInt, carma::monitor::MonitorPointShort, carma::monitor::MonitorPointByte, and carma::monitor::MonitorPointChar.

static std::string carma::monitor::MonitorPoint::validityToString ( VALIDITY validity )

static

Get a string representation for a validity.

Parameters

validity

static std::string carma::monitor::MonitorPoint::valuetypeToString ( MonitorValueType valuetype )

static

Get a string representation for a valuetype.

Parameters

valuetype

std::string carma::monitor::MonitorPoint::valuetypeToString ( ) const

Get a string representation for the datatype of this monitor point.

bool carma::monitor::MonitorPoint::warnHighDefaultIsSet ( ) const

Returns true if a default value was set for warnHigh for this monitor point.

Should be tested before using the value returned from getWarnHigh.

Parameters

none

Returns: bool true if default was set for warnHigh threshold.

bool carma::monitor::MonitorPoint::warnLowDefaultIsSet ( ) const

Returns true if a default value was set for warnLow for this monitor point.

Should be tested before using the value returned from getWarnLowDefault.

Parameters

none

Returns: bool true if default was set for warnLow threshold.

The documentation for this class was generated from the following file:

carma/monitor/MonitorPoint.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
