Monitor system container interface definition. More...

#include <carma/monitor/MonitorSystemContainer.h>

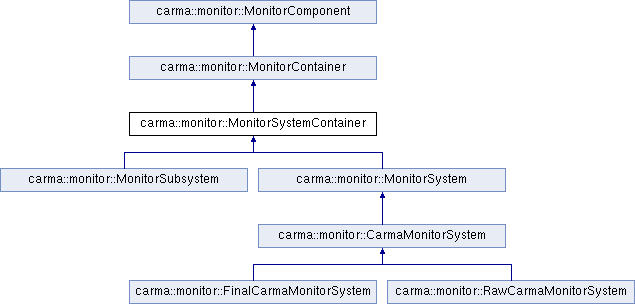

Inheritance diagram for carma::monitor::MonitorSystemContainer:

Public Member Functions
virtual int	getFrameCount () const =0
	Get the frame count for the last read frame. More...

bool	isActive ()
	Checks to see if this system is actively receiving data. More...

virtual bool	isCurrent () const =0
	Returns true if the IPQ contains data that is current. More...

	MonitorSystemContainer (const std::string &systemName)
	Constructor base subsystem configuration. More...

virtual unsigned int	read ()=0
	Reads oldest unread data from the IPQ into the local set of monitor points. More...

virtual bool	readNewest ()=0
	Reads in the newest data from the IPQ into the local set of monitor points. More...

virtual bool	readNewestConditionalCopy ()=0
	If new data is available it is copied from the queue into the monitor system. More...

virtual bool	readNewestIfStale ()
	Reads in data from the IPQ into the local set of monitor points if data is stale, that is, !isCurrent(). More...

virtual void	write ()=0
	Write out the monitor point data values. More...

virtual	~MonitorSystemContainer ()
	Destructor. More...

Public Member Functions inherited from carma::monitor::MonitorContainer
void	add (MonitorComponent &component)
	Add a subcomponent to this container A reference is kept to this subcomponent, so the caller is responsible for managing the lifecycle of the subcomponent; this container simply expects that it be available for access. More...

const Child &	getChild (int index) const
	Get reference to child monitor component by index. More...

::std::vector< Child >	getChildVec () const
	Get a vector of monitor components contained by this component. More...

MonitorComponent *	getComponentPtr (const ::std::string &name, bool caseSensitive) const
	Get a contained monitor component by hierarchical name The hierarchical name starts below this container and consist of dot (".") separated components. More...

MonitorPoint &	getFirstMonitorPoint ()
	Recursively find the first monitor point in this container. More...

MonitorPoint &	getMonitorPoint (const std::string &name, bool caseSensitive) const
	Get a monitor point by name (hierarchical name OK). More...

MonitorPoint &	getMonitorPoint (tagIDType tagID) const
	Get a monitor point by tagID. More...

MonitorPoint *	getMonitorPointPtr (const std::string &name, bool caseSensitive) const

MonitorPoint *	getMonitorPointPtr (tagIDType tagID) const

int	getNumChildren () const
	Get the number of monitor components contained by this component. More...

virtual int	getNumContainerChildren () const
	Get the number of child monitor containers contained by this component. More...

virtual int	getNumContainerDescendants () const
	Get the number of child monitor containers contained by this component and it's children. More...

virtual int	getNumDescendants () const
	Get the total number of monitor components contained by this component and it's children. More...

int	getNumMonitorPoints (bool recurse=false) const
	Get the number of monitor points. More...

int	getNumMonitorPoints ()
	Get the total number of monitor points in this container. More...

int	getNumSamples ()
	Get the total number of samples in this container. More...

bool	hasAllData () const
	See if all MPs in this component and below have data samples. More...

virtual ::std::string	hierarchyToString (bool canonical=false, bool verbose=false, bool value=true, int sampleIndex=0, int indent=0, int levels=-1) const
	Dump this and all contained monitor components to a string. More...

virtual ::std::string	hierarchyToStringAverage (bool canonical=false, bool verbose=false, bool value=true, int indent=0, int levels=-1) const
	Dump this and all contained monitor components to a string. More...

virtual void	hierarchyToVector (::std::vector< ::std::string > &hierarchyList, bool canonical=false, bool verbose=false, int sampleIndex=0) const
	Dump this and all contained monitor component strings into a map hierarchy. More...

virtual std::string	leafToString (bool verbose=false, bool value=true, int sampleIndex=0) const
	Dump all leaf nodes below this component to a string. More...

	MonitorContainer (const ::std::string &name)
	Constructor. More...

virtual ::std::string	monitorPointTags (bool untagged=false) const
	Write list of monitor points and their tagIDs to a string, one monitor point per line. More...

virtual bool	operator== (const MonitorComponent &component) const
	Compares this monitor container for equality to the one passed. More...

void	setArchivePriority (const MonitorComponent::ARCHIVE_PRIORITY priority, bool onlyDEFAULT=true)
	Recursively set the archive priority of all monitor points below. More...

virtual void	setCanonicalName (const std::string &parents)
	Recursively set the canonical component name for this and all below. More...

virtual void	setMonitorPointAttributes ()
	Set attributes of all monitor points held anywhere in the hierarchy within (and below) this container. More...

void	setNoData () const
	Recursively mark all data samples as INVALID_NO_DATA. More...

void	setPersistent (bool persistent)
	Set the persistent attribute for the value of a MonitorPoint, or in the case of a container for its descendants (recursively). More...

void	setValidity (MonitorPoint::VALIDITY validity)
	Recursively set validity for all samples of all monitor points below this container. More...

std::string	toString (bool canonicalName=false, bool verbose=false, bool value=true, int sampleIndex=0, int indent=0) const
	Write this monitor component to a string. More...

std::string	toStringAverage (bool canonicalName=false, bool verbose=false, bool value=true, int indent=0) const
	Write this monitor component to a string, using frame average values. More...

	~MonitorContainer ()
	Destructor. More...

Public Member Functions inherited from carma::monitor::MonitorComponent
const std::string &	getCanonicalName () const
	Get the canonical component name. More...

virtual const std::string &	getDescription () const
	Get the verbose description of the monitor component. More...

virtual const std::string &	getLongName () const
	Get the long name of the monitor component. More...

virtual const std::string &	getName () const
	Get the component name (leaf part of canonical name). More...

virtual std::string	getPhysicalDeviceName () const
	Get the physical device name, if one exists. More...

std::string	getPhysicalDeviceString () const
	Get the physical device name, if one exists, enclosed in parentheses. More...

std::string	getPhysicalName () const
	Get the physical name, which is location.device.component or if there is no associated physical device it is just component name. More...

virtual const std::string &	getShortName () const
	Get the short name of the monitor component. More...

virtual bool	isMonitorPoint () const
	Identifies this component as a MonitorPoint or any derivative Should be over-ridden by the MonitorPoint class; others that don't derive from MP can use this default implementation. More...

virtual bool	isSubsystem () const
	Check if the component is a MonitorSubsystem. More...

	MonitorComponent (const std::string &name)
	Constructor. More...

bool	operator!= (const MonitorComponent &component) const
	Checks if components are not equal. More...

void	setDescription (const std::string &text)
	Set the verbose description of the monitor component. More...

void	setLongName (const std::string &name)
	Set the long name of the monitor component. More...

void	setName (const std::string &name)
	Set the leaf part of the canonical name of the monitor component. More...

void	setShortName (const std::string &name)
	Set the short name of the monitor component. More...

void	setShortName (const std::string &name, int index)
	Set the short name of the monitor component, with an index appended. More...

virtual std::string	transportStatisticsToString (bool canonical=false) const
	Dump end-toe-end transport statistics (if available). More...

virtual	~MonitorComponent ()
	Destructor. More...

Additional Inherited Members
Public Types inherited from carma::monitor::MonitorComponent
enum	ARCHIVE_PRIORITY { VITAL, USEFUL, NORMAL, DEBUG, VERBOSE, DEFAULT, DONTARCHIVE }
	Archiving priority. More...

Static Public Member Functions inherited from carma::monitor::MonitorComponent
static std::string	archivePriorityToString (MonitorComponent::ARCHIVE_PRIORITY priority)
	Get a string representation for an archive priority. More...

static std::string	convertAllLower (std::string name)
	Convert a name to all lower case. More...

Protected Member Functions inherited from carma::monitor::MonitorContainer
virtual void	setLocalMonitorPointAttributes ()
	Set attributes of all monitor points held directly by this container. More...

Static Protected Member Functions inherited from carma::monitor::MonitorContainer
static Child	findDescendant (const MonitorContainer &rootContainer, const ::std::string &name, bool caseSensitive)

Protected Attributes inherited from carma::monitor::MonitorComponent
bool	debug_

Related Functions inherited from carma::monitor::MonitorComponent
std::ostream &	operator<< (std::ostream &os, const MonitorComponent &component)

Detailed Description

Monitor system container interface definition.

Definition at line 31 of file MonitorSystemContainer.h.

Constructor & Destructor Documentation

carma::monitor::MonitorSystemContainer::MonitorSystemContainer ( const std::string & systemName )

Constructor base subsystem configuration.

Parameters

systemName monitor system name

virtual carma::monitor::MonitorSystemContainer::~MonitorSystemContainer ( )

virtual

Destructor.

Member Function Documentation

virtual int carma::monitor::MonitorSystemContainer::getFrameCount ( ) const

pure virtual

Get the frame count for the last read frame.

Implemented in carma::monitor::MonitorSystem, and carma::monitor::MonitorSubsystem.

bool carma::monitor::MonitorSystemContainer::isActive ( )

Checks to see if this system is actively receiving data.

It reads the newest frame and checks to see if the frameCount is within two seconds of the current time. Note: this moves the read pointer to the top of the queue.

Returns: true if system has received data in the last 2 seconds.

virtual bool carma::monitor::MonitorSystemContainer::isCurrent ( ) const

pure virtual

Returns true if the IPQ contains data that is current.

A read could make the data current, and hence make isCurrent return true. If a read does not make isCurrent true, then the IPQ is probably not being written into.
