An abstract realtime (dynamic) text Cell. More...

#include <carma/ui/rtd/common/RtDisplay.h>

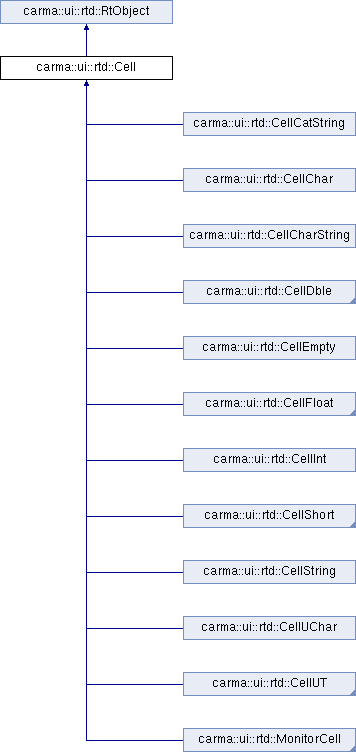

Inheritance diagram for carma::ui::rtd::Cell:

Public Member Functions
int	addAlternative (const ::std::string &text, CellColor color)
	Add an alternate text string. More...

bool	alternativeIsActive () const

	Cell (int indent, int chars, int width)
	Constructor. More...

	Cell (const char *fmt, int altLen=0)
	Constructor. More...

	Cell (const Format &fmt, int altLen=0)
	Constructor. More...

void	clearActiveAlternative ()

char	getAudio ()
	Get audio state code. More...

std::string	getCellName () const

std::string	getDynamicDescription () const

int	getIndent () const
	Get the indentation for the text. More...

int	getLen () const
	Get the length of the text string. More...

::std::string	getPlotLabel () const
	Get the plot label. More...

std::string	getText ()
	Get the dynamic text. More...

bool	isGrayedOut ()

bool	isPlottable () const
	Can contents be plotted (can it be converted to a number)? More...

bool	isReplaceText () const
	Is this the dynamically formatted text or is it a replacement string set by nohw, overflow or an altString? More...

bool	isValid ()
	Check validity of cell. More...

void	serialize (bool initialize, int fontSize,::rtdproto::RtObject *rtobj)
	Describe (serialize) the static description of the cell. More...

void	setActiveAlternative (int index)
	Select which alternate string to use. More...

void	setAudio (char c)
	Set audio state code. More...

void	setBorderBottomEnabled (bool state)

void	setBorderLeftEnabled (bool state)

void	setBorderRightEnabled (bool state)

void	setBorderTopEnabled (bool state)
	Enable/disbable an edge of the cell border. More...

void	setCellName (const std::string &s)

void	setColor (CellColor color)
	Sets the single character background color code. More...

void	setDynamicDescription (const std::string &s)

void	setEmpty (bool state)

void	setGrayedOut (bool state)

void	setNa (bool tf)
	Set the "not applicable" flag to true/false. More...

void	setNoAudio ()
	Turn off audio capability for the cell. More...

void	setNohw (bool tf)
	Set the "no hardware" flag to true/false. More...

void	setNohwColor (CellColor color)
	Sets the single character background color to use when there is no hardware. More...

void	setPlotLabel (const ::std::string &s)
	Sets the label for a plot. More...

void	setPlotLabel (int a, bool dev, const ::std::string &s)
	Creates a label string for a plot based on antenna & rx. More...

void	setPlottable (bool yesOrNo)
	Sets whether the cell data may be plotted. More...

void	setValidity (bool validity)
	Set the validity of cell. More...

Public Member Functions inherited from carma::ui::rtd::RtObject
void	appendToolTipText (const std::string &text)
	Append more text to the existing tool tip text. More...

Layout	getLayout () const
	Get the layout for this object. More...

std::string	getToolTipText ()

void	setFontSize (int fontSize)
	Set the absolute font size for this object. More...

void	setLayout (Layout layout)
	Set the layout for this object. More...

void	setToolTipText (const std::string &text)
	Set the tool tip text for this RtObject. More...

virtual void	update ()=0
	Creates a new string that is the dynamic ascii contents of this object. More...

virtual	~RtObject ()
	Destructor. More...

Protected Member Functions
::std::string	centerStringFmt (const ::std::string &s) const
	Helper to trim and center the formatted string. More...

virtual void	updateColor ()
	Automatically called as part of the update cycle to set background color. More...

void	updateInt (int data)
	Create an output string for an integer. More...

Protected Member Functions inherited from carma::ui::rtd::RtObject
int	getFontSize (int parentFontSize) const
	Get the absolute font size for this object. More...

int	getFontSize () const
	Get the absolute font size for this object. More...

	RtObject ()
	Constructor. More...

Protected Attributes
char	audio
	Audio cell control ('E'/'Y'/'N') - enabled,y,n. More...

::std::ostringstream	fmtOss_
	Formatted text stream. More...

const Format	format_
	Format for cell data. More...

int	indent
	Left indent of chars. More...

const char *	legit
	Deprecated... More...

int	len
	Total number of chars. More...

::std::string	text
	Formatted text. More...

Detailed Description

An abstract realtime (dynamic) text Cell.

This is the base class for all of the variants of the realtime cell. Subclasses will use different datatypes and the formatting functions (update) to turn it into text. Some of the key constructs are:

There can be several fixed strings that replace dynamic text. Standard ones are "NoHw" for missing hardware, "?" when the legit flag is bad, and "****" when the formatted string exceeds the pre-determined length. There are also "alternate" strings that can be added to the cell and used by setting a flag.
The background cell color is a single character code that is sent to the Java client. The codes are simple: the default is White ('w'). The other common codes are Red, Yellow, Green, Cyan, Magenta, & Blue. Alternate strings also carry a background color with them.

Definition at line 300 of file RtDisplay.h.

Constructor & Destructor Documentation

carma::ui::rtd::Cell::Cell	(	int	indent,
		int	chars,
		int	width
	)

Constructor.

Parameters

width	the total width of the cell
indent	left indent to start of dynamic text
len	length of dynamic text

carma::ui::rtd::Cell::Cell	(	const char *	fmt,
		int	altLen = `0`
	)

explicit

Constructor.

Parameters

fmt	standard text cell format string
altLen	maximum length of an alternate string. This is not important if you don't have alt strings. If you do, make sure it is as long as the longest alt string.

See Also: Format

carma::ui::rtd::Cell::Cell	(	const Format &	fmt,
		int	altLen = `0`
	)

explicit

Constructor.

Parameters

fmt	standard text cell format
altLen	maximum length of an alternate string. This is not important if you don't have alt strings. If you do, make sure it is as long as the longest alt string.

See Also: Format

Member Function Documentation

int carma::ui::rtd::Cell::addAlternative	(	const ::std::string &	text,
		CellColor	color
	)

Add an alternate text string.

Alternate text strings are assigned an index based on the order in which they are created (starting at 0 for the first).

Parameters

text	the alternate text string
colorCode	the color character

Returns: 0 on success

::std::string carma::ui::rtd::Cell::centerStringFmt ( const ::std::string & s ) const

protected

Helper to trim and center the formatted string.

char carma::ui::rtd::Cell::getAudio ( )

Get audio state code.

Returns: audio code

See Also: setAudio

int carma::ui::rtd::Cell::getIndent ( ) const

Get the indentation for the text.

int carma::ui::rtd::Cell::getLen ( ) const

Get the length of the text string.

::std::string carma::ui::rtd::Cell::getPlotLabel ( ) const

Get the plot label.

std::string carma::ui::rtd::Cell::getText ( )

Get the dynamic text.

Should be stored by update() and put in result.

bool carma::ui::rtd::Cell::isPlottable ( ) const

Can contents be plotted (can it be converted to a number)?

bool carma::ui::rtd::Cell::isReplaceText ( ) const

Is this the dynamically formatted text or is it a replacement string set by nohw, overflow or an altString?

bool carma::ui::rtd::Cell::isValid ( )

Check validity of cell.

void carma::ui::rtd::Cell::serialize	(	bool	initialize,
		int	fontSize,
		::rtdproto::RtObject *	rtobj
	)

virtual

Describe (serialize) the static description of the cell.

Parameters

initialize	set all non-changing (static) fields
fontSize	the fontsize to use
rtobj	the ::rtdproto::RtObject to populate

Implements carma::ui::rtd::RtObject.

void carma::ui::rtd::Cell::setActiveAlternative ( int index )

Select which alternate string to use.

A negative index means don't use any alternate.

Parameters

index index of alternate

void carma::ui::rtd::Cell::setAudio ( char c )

Set audio state code.

'N' No audio capability
'Y' Has audio capability, initially disabled
'E' Has audio capability, initially enabled

See Also: getAudio

void carma::ui::rtd::Cell::setBorderTopEnabled ( bool state )

Enable/disbable an edge of the cell border.

If a border edge is disabled it is not drawn. Each edge of the border can be individually enabled, but may be overwritten in a table as the borders are only a single pixel and are shared. To be sure, disable both of the neighbor cells for a shared border.

Definition at line 387 of file RtDisplay.h.

void carma::ui::rtd::Cell::setColor ( CellColor color )

Sets the single character background color code.

The color of that characters are written in is chosen to be white or black to complement this background color.

void carma::ui::rtd::Cell::setNa ( bool tf )

Set the "not applicable" flag to true/false.

void carma::ui::rtd::Cell::setNoAudio ( )

Turn off audio capability for the cell.

void carma::ui::rtd::Cell::setNohw ( bool tf )

Set the "no hardware" flag to true/false.

void carma::ui::rtd::Cell::setNohwColor ( CellColor color )

Sets the single character background color to use when there is no hardware.

void carma::ui::rtd::Cell::setPlotLabel ( const ::std::string & s )

Sets the label for a plot.

void carma::ui::rtd::Cell::setPlotLabel	(	int	a,
		bool	dev,
		const ::std::string &	s
	)

Creates a label string for a plot based on antenna & rx.

The final label is Ant::a/Rx#r/string

void carma::ui::rtd::Cell::setPlottable ( bool yesOrNo )

Sets whether the cell data may be plotted.

Parameters

yesOrNo yes or no

void carma::ui::rtd::Cell::setValidity ( bool validity )

Set the validity of cell.

Parameters

validity

virtual void carma::ui::rtd::Cell::updateColor ( )

protectedvirtual

Automatically called as part of the update cycle to set background color.

Reimplemented in carma::ui::rtd::CellCatString, carma::ui::rtd::CellCharString, carma::ui::rtd::CellString, carma::ui::rtd::MonitorCell, carma::ui::rtd::CellDbleMM, carma::ui::rtd::CellFloatMM, carma::ui::rtd::CellDbleTol, carma::ui::rtd::CellFloatTol, and carma::ui::rtd::CellShortMM.

void carma::ui::rtd::Cell::updateInt ( int data )

protected

Create an output string for an integer.

This routine is used by several derived classes so it is put here rather than make another class.

Member Data Documentation

char carma::ui::rtd::Cell::audio

protected

Audio cell control ('E'/'Y'/'N') - enabled,y,n.

Definition at line 520 of file RtDisplay.h.

::std::ostringstream carma::ui::rtd::Cell::fmtOss_

protected

Formatted text stream.

Definition at line 514 of file RtDisplay.h.

const Format carma::ui::rtd::Cell::format_

protected

Format for cell data.

Definition at line 509 of file RtDisplay.h.

int carma::ui::rtd::Cell::indent

protected

Left indent of chars.

Definition at line 507 of file RtDisplay.h.

const char* carma::ui::rtd::Cell::legit

protected

Deprecated...

Definition at line 517 of file RtDisplay.h.

int carma::ui::rtd::Cell::len

protected

Total number of chars.

Definition at line 505 of file RtDisplay.h.

::std::string carma::ui::rtd::Cell::text

protected

Formatted text.

Definition at line 511 of file RtDisplay.h.

The documentation for this class was generated from the following file:

carma/ui/rtd/common/RtDisplay.h
