Base class for everything that can be put in a realtime display. More...

#include <carma/ui/rtd/common/RtDisplay.h>

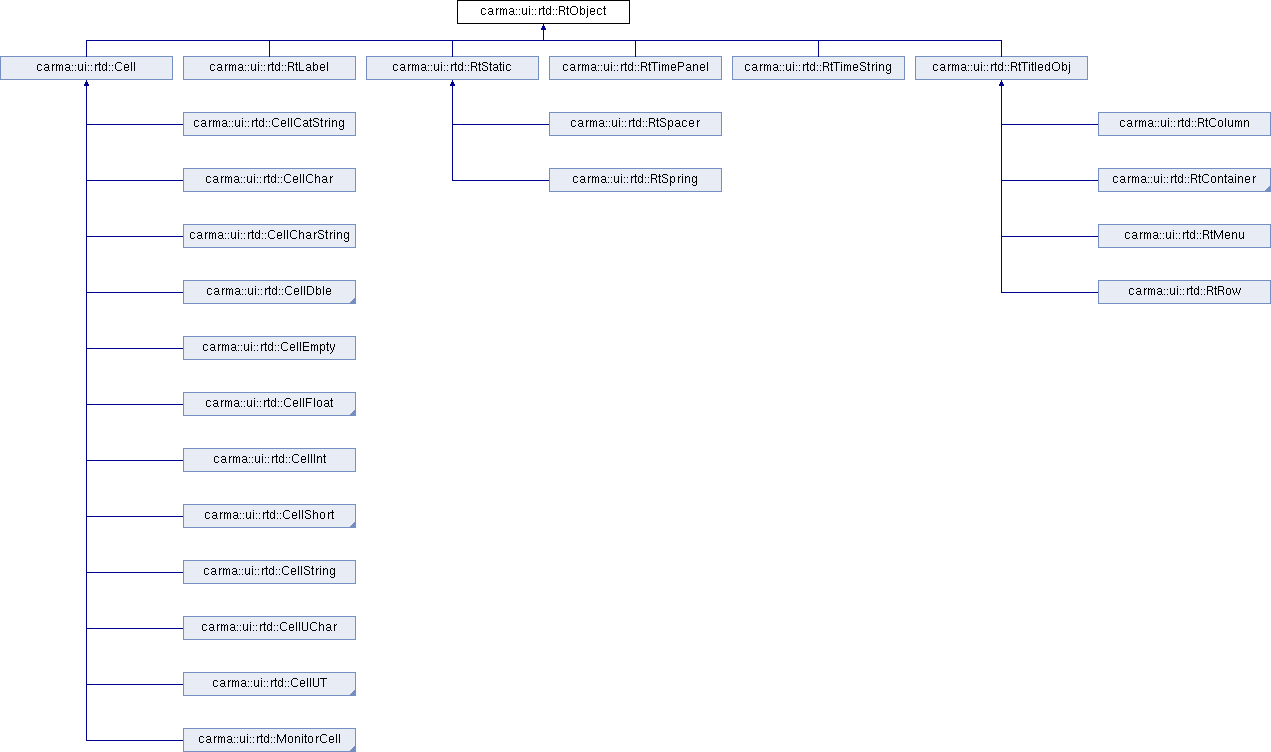

Inheritance diagram for carma::ui::rtd::RtObject:

Public Member Functions
void	appendToolTipText (const std::string &text)
	Append more text to the existing tool tip text. More...

Layout	getLayout () const
	Get the layout for this object. More...

std::string	getToolTipText ()

virtual void	serialize (bool initialize, int fontSize,::rtdproto::RtObject *rtobj)=0
	Describes the static structure of this object in ascii to stdout. More...

void	setFontSize (int fontSize)
	Set the absolute font size for this object. More...

void	setLayout (Layout layout)
	Set the layout for this object. More...

void	setToolTipText (const std::string &text)
	Set the tool tip text for this RtObject. More...

virtual void	update ()=0
	Creates a new string that is the dynamic ascii contents of this object. More...

virtual	~RtObject ()
	Destructor. More...

Protected Member Functions
int	getFontSize (int parentFontSize) const
	Get the absolute font size for this object. More...

int	getFontSize () const
	Get the absolute font size for this object. More...

	RtObject ()
	Constructor. More...

Detailed Description

Base class for everything that can be put in a realtime display.

As with most graphical representations, a display is created by nesting containers inside of containers that eventually contain the base graphical elements. The base graphical elements can be static items, like spaces or labels, or dynamic elements that change with time. Most of the dynamic items are displayed inside of realtime cells that contain ascii text. The standard way of creating the display is to nest (by creating and adding into other elements) the graphical containers and elements that make up the display. The dynamic data elements are referred to by address when those elements are created. The display can then be "updated()", and all graphical elements within it updated by referring to the data by address. Two fundamental constructs are embedded in this class: type code and layout code

Definition at line 84 of file RtDisplay.h.

Constructor & Destructor Documentation

virtual carma::ui::rtd::RtObject::~RtObject ( )

virtual

Destructor.

carma::ui::rtd::RtObject::RtObject ( )

explicitprotected

Constructor.

Member Function Documentation

void carma::ui::rtd::RtObject::appendToolTipText ( const std::string & text )

Append more text to the existing tool tip text.

Parameters

text	The text to append for this RtObject

int carma::ui::rtd::RtObject::getFontSize ( int parentFontSize ) const

protected

Get the absolute font size for this object.

If it hasn't been set, then the font size of the parent will be used.

Parameters

parentFontSize in points

int carma::ui::rtd::RtObject::getFontSize ( ) const

protected

Get the absolute font size for this object.

Note that it is initialized to zero, so it is preferable to use getFontSize(parentFontSize)

Layout carma::ui::rtd::RtObject::getLayout ( ) const

Get the layout for this object.

Layouts are hints to the RtArea layout manager,

std::string carma::ui::rtd::RtObject::getToolTipText ( )

Returns: the tool tip text for this RtObject

virtual void carma::ui::rtd::RtObject::serialize	(	bool	initialize,
		int	fontSize,
		::rtdproto::RtObject *	rtobj
	)

pure virtual

Describes the static structure of this object in ascii to stdout.

This virtual method must be provided for each new type of object. Each will have its own way of serializing itself that must be understood by the Java client (based on the object type). Its actually pretty simple.

Parameters

fontSize font size of the parent

Implemented in carma::ui::rtd::RtDisplay, carma::ui::rtd::RtTimePanel, carma::ui::rtd::RtTimeString, carma::ui::rtd::RtSpacer, carma::ui::rtd::RtSpring, carma::ui::rtd::RtStatic, carma::ui::rtd::RtBox, carma::ui::rtd::RtTable, carma::ui::rtd::RtArea, carma::ui::rtd::RtLabel, carma::ui::rtd::RtContainer, carma::ui::rtd::RtColumn, carma::ui::rtd::RtRow, carma::ui::rtd::RtTitledObj, carma::ui::rtd::Cell, and carma::ui::rtd::RtMenu.

void carma::ui::rtd::RtObject::setFontSize ( int fontSize )

Set the absolute font size for this object.

Parameters

fontSize in points

void carma::ui::rtd::RtObject::setLayout ( Layout layout )

Set the layout for this object.

Layouts are hints to the RtArea layout manager, but not all objects will use RtArea so this layout will not always be used.

Parameters

layout layout to use

See Also: RtArea

void carma::ui::rtd::RtObject::setToolTipText ( const std::string & text )

Set the tool tip text for this RtObject.

Parameters

text	The text of the tool tip for this RtObject

virtual void carma::ui::rtd::RtObject::update ( )

pure virtual

Creates a new string that is the dynamic ascii contents of this object.

The size of the string is fixed and described by serialize().

See Also: serialize

The documentation for this class was generated from the following file:

carma/ui/rtd/common/RtDisplay.h
