Carma downconverter CAN module control interface. More...

import "carma/downconverter/common/DownconverterControl.idl";

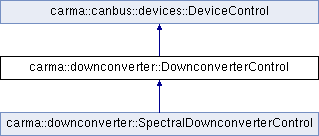

Inheritance diagram for carma::downconverter::DownconverterControl:

Public Types
enum	FilterType { FILTER_490MHZ, FILTER_240MHZ, FILTER_119MHZ, FILTER_58MHZ, FILTER_280MHZ }
	Valid output bandwidth filter types. More...

enum	SidebandType { UPPER_SIDEBAND, LOWER_SIDEBAND }
	Sideband type. More...

Public Member Functions
boolean	checkIfOutputPower (in float power, in float delta) raises (carma::util::UserException)
	Check that IF Output power is within a specified range. More...

void	enableIfOutAlc (in boolean enable) raises (carma::util::UserException)
	Enable IF output Automatic Level Control (ALC). More...

void	enableRfInputAmp (in boolean enable) raises (carma::util::UserException)
	Turn RF input amplifier on or off. More...

void	setIfOut (in float ifout) raises (carma::util::UserException)
	Set IF output power to requested level. More...

void	setIfOutAtten (in float atten) raises (carma::util::UserException)
	Set IF output attenuation to requested level. More...

void	setIfOutPreset () raises (carma::util::UserException)
	Set IF output power to preset level. More...

void	setPsys (in float psys) raises (carma::util::UserException)
	Set the psys power level to indicated level. More...

void	setPsysAtten (in float atten) raises (carma::util::UserException)
	Set psys attenutation to indicated level. More...

void	setPsysPreset () raises (carma::util::UserException)
	Set the psys power level to preset level. More...

Public Member Functions inherited from carma::canbus::devices::DeviceControl
boolean	isOnline () raises (carma::util::UserException)
	Is device ONLINE? A device is considered ONLINE if it is actively sending monitor packets on the frame timescale. More...

void	reset () raises (carma::util::UserException)
	Reset the module via CAN reset message. More...

void	startChannelOneFastSampling (in unsigned short fastItem) raises (carma::util::UserException)
	Start fast sampling data from this node on channel 1. More...

void	startChannelTwoFastSampling (in unsigned short fastItem) raises (carma::util::UserException)
	Start fast sampling data from this node on channel 2. More...

void	stopChannelOneFastSampling () raises (carma::util::UserException)
	Stop fast sampling on channel 1 for any device. More...

void	stopChannelTwoFastSampling () raises (carma::util::UserException)
	Stop fast sampling on channel 2 for any device. More...

Detailed Description

Carma downconverter CAN module control interface.

Both the Wideband and Spectral-line downconverter CAN modules will share this control interface. It is likely that the Spectral-line system will inherit from it and define additional functionality.

Definition at line 25 of file DownconverterControl.idl.

Member Enumeration Documentation

enum carma::downconverter::DownconverterControl::FilterType

Valid output bandwidth filter types.

Not all modules are equipped with all filters.

Definition at line 40 of file DownconverterControl.idl.

enum carma::downconverter::DownconverterControl::SidebandType

Sideband type.

Currently used on Spectral Line Downconverter only.

Definition at line 31 of file DownconverterControl.idl.

Member Function Documentation

boolean carma::downconverter::DownconverterControl::checkIfOutputPower	(	in float	power,
		in float	delta
	)
raises	(	carma::util::UserException
	)

Check that IF Output power is within a specified range.

This command is for engineering use only!

Parameters

power	center IF Output power
delta	value around IF Output power

Returns: true if within boundaries false otherwise.

Exceptions

carma::util::UserException if module is OFFLINE.

void carma::downconverter::DownconverterControl::enableIfOutAlc	(	in boolean	enable	)
raises	(	carma::util::UserException
	)

Enable IF output Automatic Level Control (ALC).

Parameters

enable true for on false for off.

Exceptions
