Detector base class. More...

#include <Detector.h>

Inheritance diagram for manticore::Detector:

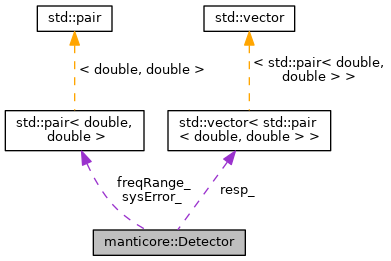

Collaboration diagram for manticore::Detector:

[legend]

Public Member Functions
	Detector (bool extend=true) noexcept
	Default constructor. More...

virtual	~Detector ()
	Destructor. More...

virtual double	ccf (const Graybody &gray, double T, double Sigma=1.0) const
	Color correction factor. More...

virtual double	freqBand () const noexcept
	Reference band center frequency (Hz). More...

virtual std::pair< double, double >	freqRange () const noexcept
	Frequency range containing significant response. More...

virtual double	freqWidth () const noexcept
	Effective flux-conversion bandwidth \(\Delta\nu\) (Hz). More...

virtual void	init ()
	Initializes detector characteristics. More...

bool	isExtended () const noexcept
	Whether extended source detection is enabled. More...

virtual std::string	name () const =0
	Official detector name (`INSTRUMENT-BAND`). More...

virtual double	response (double nu, gsl_interp_accel *acc=nullptr) const
	Absolute spectral response function. More...

virtual std::pair< double, double >	sysError () const noexcept
	Systematic calibration error (correlated, uncorrelated) between bands. More...

Protected Types
using	tableType = std::vector< std::pair< double, double > >
	Detector response table type. More...

Protected Member Functions
void	calcWidth ()
	Calculates effective bandwidth using standard prescription. More...

Protected Attributes
double	center_ = 0.0
	Effective band center (Hz). More...

bool	extend_
	Default to extended (else point) source observation. More...

std::pair< double, double >	freqRange_
	Response edge frequencies (Hz). More...

tableType	resp_
	Spectral response table. More...

gsl_spline *	spline_ = nullptr
	Response interpolator. More...

std::pair< double, double >	sysError_
	Relative systematic errors (global/instrument, detector/band). More...

double	width_ = 0.0
	Effective (flux) bandwidth (Hz). More...

Detailed Description

Detector base class.

Concrete detector instances are characterized by the following:

reference wavelength
reference bandwidth
spectral response curve
color correction factor
instrument- and band-specific systematic errors

By default this class will compute the reference bandwidth and color correction factor automatically from the response curve \(R(\nu)\) using the equations

\[ {\Delta\lambda\over \lambda_0} = {\Delta\nu\over \nu_0} = \int R(\nu){d\nu\over\nu} \]

and

\[ CCF = {\int F_\nu R(\nu)d\nu\over \Delta\nu F_{\nu_0}}, \]

where \(\lambda_0\) and \(\nu_0\) are the reference wavelength and frequency, respectively, and \(F_\nu\) is the model flux density under consideration. If the color correction prescription is inappropriate, concrete detector classes can override the calculation.

Note: This class assumes all integrals are performed in frequency space; but to match common reference, the nominal band center and width are given as wavelengths. Once initialized, an instance may be safely shared among multiple threads (but ccf() is thread-safe only if the Graybody instance is thread-local).

Warning: Clients must call init() on instances to populate detector parameters prior to any further usage.

Definition at line 51 of file Detector.h.

Member Typedef Documentation

◆ tableType

using manticore::Detector::tableType = std::vector<std::pair<double, double> >

protected

Detector response table type.

Definition at line 101 of file Detector.h.

Constructor & Destructor Documentation

◆ Detector()

manticore::Detector::Detector ( bool extend = true )

inlinenoexcept

Default constructor.

Parameters

[in] extend Whether to use extended source response model (if any).

Definition at line 55 of file Detector.h.

◆ ~Detector()

virtual manticore::Detector::~Detector ( )

inlinevirtual

Destructor.

Definition at line 58 of file Detector.h.

References spline_.

Member Function Documentation

◆ calcWidth()

void manticore::Detector::calcWidth ( )

protected

Calculates effective bandwidth using standard prescription.

Uses the response() function to compute the reference bandwidth (see detailed description).

Postcondition: The width_ member is set to the result.

Definition at line 75 of file Detector.cc.

References manticore::c_light, center_, std::pair::first, freqRange_, manticore::detector::fWidth(), mutils::kgauss_r(), MU_DEBUG, name(), std::pair::second, and width_.

Referenced by init().

◆ ccf()

double manticore::Detector::ccf	(	const Graybody &	gray,
		double	T,
		double	Sigma = `1.0`
	)		const

virtual

Color correction factor.

Parameters

[in]	gray	Graybody model.
[in]	T	Temperature (K).
[in]	Sigma	Mass surface density (g/cm^2).

Note: You must divide the reported detector flux density by the correction factor to obtain a fair estimate of the model flux density.

Definition at line 90 of file Detector.cc.

References center_, manticore::Graybody::F(), manticore::Graybody::Inu(), and width_.

Referenced by manticore::ccfCheck().

◆ freqBand()

virtual double manticore::Detector::freqBand ( ) const

inlinevirtualnoexcept

Reference band center frequency (Hz).

Definition at line 69 of file Detector.h.

References center_.

◆ freqRange()

virtual std::pair<double, double> manticore::Detector::freqRange ( ) const

inlinevirtualnoexcept

Frequency range containing significant response.

Definition at line 78 of file Detector.h.

References freqRange_.

Referenced by manticore::Graybody::Itot(), and manticore::Graybody::Itot2().

◆ freqWidth()

virtual double manticore::Detector::freqWidth ( ) const

inlinevirtualnoexcept

Effective flux-conversion bandwidth \(\Delta\nu\) (Hz).

The band-weighted total flux \(F\) is related to the reported pseudo-flux density \(f_\nu\) by \(F = \Delta\nu\cdot f_\nu\).

Definition at line 75 of file Detector.h.

References width_.

Referenced by manticore::ccfCheck().

◆ init()

void manticore::Detector::init ( )

virtual

Initializes detector characteristics.

Reimplemented in manticore::PACS, and manticore::SPIRE.

Definition at line 33 of file Detector.cc.

References std::vector::back(), manticore::c_light, calcWidth(), std::pair::first, freqRange_, std::vector::front(), manticore::initSpline(), MU_DEBUG, name(), resp_, std::pair::second, and spline_.

Referenced by manticore::SPIRE::init(), and manticore::PACS::init().

◆ isExtended()

bool manticore::Detector::isExtended ( ) const

inlinenoexcept

Whether extended source detection is enabled.

Definition at line 86 of file Detector.h.

References extend_.

◆ name()

virtual std::string manticore::Detector::name ( ) const

pure virtual

Official detector name (INSTRUMENT-BAND).

Implemented in manticore::PACS, and manticore::SPIRE.

Referenced by calcWidth(), and init().

◆ response()

double manticore::Detector::response	(	double	nu,
		gsl_interp_accel *	acc = `nullptr`
	)		const

virtual

Absolute spectral response function.

Parameters

[in]	nu	Frequency (Hz).
[in]	acc	Interpolation lookup accelerator.

Note: For extended source detection, this response includes a correction for the frequency-dependent beam size (scaled to unity at freqBand()). The default implementation is based on linear interpolation of a pre-calculated response table.

Definition at line 57 of file Detector.cc.

References std::pair::first, freqRange_, std::pair::second, and spline_.

◆ sysError()

virtual std::pair<double, double> manticore::Detector::sysError ( ) const

inlinevirtualnoexcept

Systematic calibration error (correlated, uncorrelated) between bands.

Definition at line 82 of file Detector.h.

References sysError_.

Member Data Documentation

◆ center_

double manticore::Detector::center_ = 0.0

protected

Effective band center (Hz).

Definition at line 118 of file Detector.h.

Referenced by calcWidth(), ccf(), freqBand(), manticore::SPIRE::init(), and manticore::PACS::init().

◆ extend_

bool manticore::Detector::extend_

protected

Default to extended (else point) source observation.

Definition at line 116 of file Detector.h.

Referenced by manticore::SPIRE::init(), and isExtended().

◆ freqRange_

std::pair<double,double> manticore::Detector::freqRange_

protected

Response edge frequencies (Hz).

Definition at line 107 of file Detector.h.

Referenced by calcWidth(), freqRange(), init(), and response().

◆ resp_

tableType manticore::Detector::resp_

protected

Spectral response table.

Definition at line 113 of file Detector.h.

Referenced by manticore::SPIRE::init(), manticore::PACS::init(), and init().

◆ spline_

gsl_spline* manticore::Detector::spline_ = nullptr

protected

Response interpolator.

Definition at line 122 of file Detector.h.

Referenced by init(), response(), and ~Detector().

◆ sysError_

std::pair<double,double> manticore::Detector::sysError_

protected

Relative systematic errors (global/instrument, detector/band).

Definition at line 110 of file Detector.h.

Referenced by manticore::SPIRE::init(), manticore::PACS::init(), and sysError().

◆ width_

double manticore::Detector::width_ = 0.0

protected

Effective (flux) bandwidth (Hz).

Definition at line 119 of file Detector.h.

Referenced by calcWidth(), ccf(), and freqWidth().

The documentation for this class was generated from the following files:
