SPIRE detector class. More...

#include <SPIRE.h>

Inheritance diagram for manticore::SPIRE:

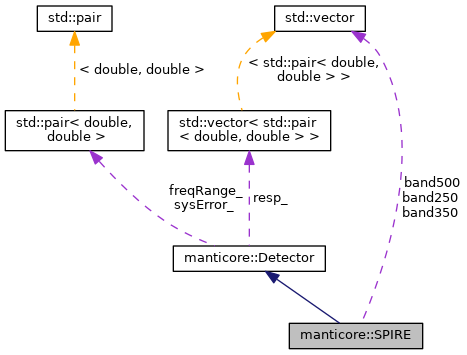

Collaboration diagram for manticore::SPIRE:

[legend]

Public Member Functions
	SPIRE (unsigned band=250, bool extend=true)
	Default constructor. More...

	~SPIRE ()=default
	Destructor. More...

virtual void	init ()
	Initializes detector characteristics. More...

virtual std::string	name () const
	Official detector name (`INSTRUMENT-BAND`). More...

Public Member Functions inherited from manticore::Detector
	Detector (bool extend=true) noexcept
	Default constructor. More...

virtual	~Detector ()
	Destructor. More...

virtual double	ccf (const Graybody &gray, double T, double Sigma=1.0) const
	Color correction factor. More...

virtual double	freqBand () const noexcept
	Reference band center frequency (Hz). More...

virtual std::pair< double, double >	freqRange () const noexcept
	Frequency range containing significant response. More...

virtual double	freqWidth () const noexcept
	Effective flux-conversion bandwidth \(\Delta\nu\) (Hz). More...

bool	isExtended () const noexcept
	Whether extended source detection is enabled. More...

virtual double	response (double nu, gsl_interp_accel *acc=nullptr) const
	Absolute spectral response function. More...

virtual std::pair< double, double >	sysError () const noexcept
	Systematic calibration error (correlated, uncorrelated) between bands. More...

Protected Attributes
unsigned	band_
	Fiducial detector band (microns). More...

Protected Attributes inherited from manticore::Detector
double	center_ = 0.0
	Effective band center (Hz). More...

bool	extend_
	Default to extended (else point) source observation. More...

std::pair< double, double >	freqRange_
	Response edge frequencies (Hz). More...

tableType	resp_
	Spectral response table. More...

gsl_spline *	spline_ = nullptr
	Response interpolator. More...

std::pair< double, double >	sysError_
	Relative systematic errors (global/instrument, detector/band). More...

double	width_ = 0.0
	Effective (flux) bandwidth (Hz). More...

Static Protected Attributes
static tableType	band250
	Response table for the 250 micron band. More...

static tableType	band350
	Response table for the 350 micron band. More...

static tableType	band500
	Response table for the 500 micron band. More...

Additional Inherited Members
Protected Types inherited from manticore::Detector
using	tableType = std::vector< std::pair< double, double > >
	Detector response table type. More...

Protected Member Functions inherited from manticore::Detector
void	calcWidth ()
	Calculates effective bandwidth using standard prescription. More...

Detailed Description

SPIRE detector class.

A concrete Detector class representing the Herschel SPIRE photometer. This includes support for the 250, 350 and 500 micron bands.

Definition at line 14 of file SPIRE.h.

Constructor & Destructor Documentation

◆ SPIRE()

manticore::SPIRE::SPIRE	(	unsigned	band = `250`,
		bool	extend = `true`
	)

inline

Default constructor.

Parameters

[in]	band	Wavelength band (microns).
[in]	extend	Whether to use extended source detection properties.

Definition at line 19 of file SPIRE.h.

◆ ~SPIRE()

manticore::SPIRE::~SPIRE ( )

default

Destructor.

Member Function Documentation

◆ init()

void manticore::SPIRE::init ( )

virtual

Initializes detector characteristics.

Reimplemented from manticore::Detector.

Definition at line 677 of file SPIRE.cc.

References band250, band350, band500, band_, manticore::c_light, manticore::Detector::center_, manticore::Detector::extend_, std::pair::first, manticore::Detector::init(), MU_EXCEPTION, manticore::Detector::resp_, std::pair::second, and manticore::Detector::sysError_.

◆ name()

virtual std::string manticore::SPIRE::name ( ) const

inlinevirtual

Official detector name (INSTRUMENT-BAND).

Implements manticore::Detector.

Definition at line 25 of file SPIRE.h.

References band_, and std::to_string().

Member Data Documentation

◆ band250

Detector::tableType manticore::SPIRE::band250

staticprotected

Response table for the 250 micron band.

SPIRE 250 micron response.

Net aperture efficiency and "PSW" filter response, truncated to the frequency range for which the response \(R(\nu) > 10^{-4}\). Frequency is in Hz.

Definition at line 32 of file SPIRE.h.

Referenced by init().

◆ band350

Detector::tableType manticore::SPIRE::band350

staticprotected

Response table for the 350 micron band.

SPIRE 350 micron response.

Net aperture efficiency and "PMW" filter response, truncated to the frequency range for which the response \(R(\nu) > 10^{-4}\). Frequency is in Hz.

Definition at line 32 of file SPIRE.h.

Referenced by init().

◆ band500

Detector::tableType manticore::SPIRE::band500

staticprotected

Response table for the 500 micron band.

SPIRE 500 micron response.

Net aperture efficiency and "PLW" filter response, truncated to the frequency range for which the response \(R(\nu) > 10^{-4}\). Frequency is in Hz.

Definition at line 32 of file SPIRE.h.

Referenced by init().

◆ band_

unsigned manticore::SPIRE::band_

protected

Fiducial detector band (microns).

Definition at line 36 of file SPIRE.h.

Referenced by init(), and name().

The documentation for this class was generated from the following files:
