CARMA C++
|
This is the full Carma monitor system before fault system processing and immediately following collation in the frameCollator. More...
#include <carma/monitor/MonitorSystem.h>
Public Member Functions | |
RawCarmaMonitorSystem () | |
Full monitor system with all subsystems, before fault processing. More... | |
![]() | |
CarmaMonitorSystem () | |
Full monitor system with all subsystems. More... | |
CarmaMonitorSystem (const RawCarmaMonitorSystem &raw) | |
Full monitor system with all subsystems. More... | |
void | synchronize (const CarmaMonitorSystem &src) |
Method to synchronize this object with another CarmaMonitorSystem object. More... | |
![]() | |
std::string | addTransportTimesAsString (std::ostringstream o) const |
Dumps transport statistics as a table, with write delays, and transport/write times printed out as doubles, with fixed precision. More... | |
AlarmSubsystem & | alarm () const |
Get reference to the alarm subsystem. More... | |
AntennaCommon & | antennaCommon (int index) const |
Get reference to an AntennaCommon container in an ovro or bima or sza subsystem. More... | |
AstroSubsystem & | astro () const |
Get reference to an Astro container. More... | |
BimaSubsystem & | bima (int index) const |
Get reference to a bima antenna subsystem. More... | |
C3gDataflowSubsystem & | c3gDataflow (const int index) const |
C3gMax23PipelineSubsystem & | c3gMax23Pipeline () const |
Get reference to carma 23 station 3g correlator pipeline. More... | |
C3gMax8PipelineSubsystem & | c3gMax8Pipeline () const |
Get reference to carma 8 station 3g correlator pipeline. More... | |
C3gRemapperSubsystem & | c3gRemapper (const int index) const |
Carma3GBandSubsystem & | carma3gBand (const int index) const |
Get reference to a CARMA3G correlator band subsystem. More... | |
CarmaSlcBandSubsystem & | carmaSlcBand (const int index) const |
Get reference to a spectral line correlator band subsystem. More... | |
CentralIfSubsystem & | centralIf () const |
Get reference to the centalIF subsystem. More... | |
ControlSubsystem & | control () const |
Get reference to the control subsystem. More... | |
DataflowSubsystem & | dataflow () const |
Get reference to the control subsystem. More... | |
DelayEngineSubsystem & | delay () const |
Get reference to the delay engine subsystem. More... | |
FaultSubsystem & | fault () const |
Get reference to fault subsystem. More... | |
size_t | getActualMonitorSystemSize () const |
Capacity usage related method - returns actual size used in bytes across all subsystems. More... | |
long | getActualNumMonitorPoints () const |
Capacity usage related method - returns actual # of monitor points across all subsystems. More... | |
long | getActualNumMonitorPoints (const MonitorValueType type) const |
Capacity usage related method - returns actual # of monitor points of type. More... | |
long | getActualNumMonitorSamples () const |
Capacity related method - returns actual # of monitor samples across all subsystems. More... | |
long | getActualNumMonitorSamples (MonitorValueType type) const |
Capacity related method - returns actual # of monitor samples of type <pretype across all subsystems. More... | |
long | getActualNumMultiSampleMonitorPoints () const |
Capacity usage related method - returns actual # of monitor points with multiple samples across all subsystems. More... | |
long | getActualNumSubsystems () const |
Capacity usage related method - returns actual number of subsystems allocated. More... | |
size_t | getAllocatedMonitorSystemSize () const |
Capacity usage related method - returns total size allocated in bytes across all subsystems. More... | |
long | getAllocatedNumMonitorPoints () const |
Capacity usage related method - returns allocated monitor point capacity across all subsystems. More... | |
long | getAllocatedNumMonitorSamples () const |
Capacity related method - returns total monitor sample capacity across all subsystems. More... | |
long | getAllocatedNumSubsystems () const |
Capacity usage related method - returns total number of subsystems allocated. More... | |
int | getCarma3gBandCount () const |
Get the number of carma3g bands. More... | |
int | getCarmaSlcBandCount () const |
Get the number of carmaSlcBands. More... | |
MonitorSubsystem & | getChildSubsystem (int index) const |
Get underlying subsystem by index. More... | |
double | getCollatorWriteDelay () const |
Delay offset (in seconds) from the corrected UTC half-second when the System frame is written to IPQ on the ACC. More... | |
double | getCollatorWriteTime () const |
MJD when this system frame was actually written to the IPQ. More... | |
size_t | getCountedMonitorSystemSize () const |
Capacity usage related method - returns total size counted, in bytes across all subsystems. More... | |
long | getCountedNumMonitorPoints () const |
Capacity usage related method - returns number of monitor points present across all subsystems - number is obtained by iterating over all monitor points, so method is likely to be expensive. More... | |
long | getCountedNumMonitorSamples () const |
Capacity related method - returns number of monitor samples counted across all subsystems. More... | |
double | getFinalWriteTime () const |
Gets MJD when this system frame was actually read by the fault system. More... | |
virtual int | getFrameCount () const |
Get the frame count for the last read frame. More... | |
size_t | getMaxMonitorSystemSize () const |
Capacity usage related method - returns total size allocated in bytes across all subsystems. More... | |
long | getMaxNumMonitorPoints () const |
Capacity usage related method - returns total allocated monitor point capacity across all subsystems. More... | |
long | getMaxNumMonitorSamples () const |
Capacity related method - returns total allocated monitor sample capacity across all subsystems. More... | |
long | getNumValidSubsystems () const |
Returns number of valid subsystems. More... | |
double | getRawReadTime () const |
Gets MJD when this system frame was actually read by the fault system. More... | |
SystemFrameBuffer & | getSystemFrameBuffer () const |
Get the underlying SystemFrameBuffer. More... | |
size_t | getTotalMonitorSystemSize () const |
Capacity related method - returns total size available in bytes across all subsystems. More... | |
long | getTotalNumMonitorPoints () const |
Capacity related method - returns total monitor point capacity across all subsystems. More... | |
long | getTotalNumMonitorSamples () const |
Capacity related method - returns total monitor sample capacity across all subsystems. More... | |
long | getTotalNumSubsystems () const |
Capacity related method - returns total subsystem capacity. More... | |
int | getWbcBandCount () const |
Get the number of wbcBands. More... | |
ImrSubsystem & | imr () const |
Get reference to imr subsystem. More... | |
bool | isCurrent () const |
Returns true if the monitor subsystem contains data that is current. More... | |
LineLengthSubsystem & | lineLength () const |
Get reference to the lineLength subsystem. More... | |
LoberotatorSubsystem & | loberotator () const |
Get reference to the loberotator subsystem. More... | |
LoRefSubsystem & | loRef () const |
Get reference to the LOref subsystem. More... | |
MasterClockSubsystem & | masterclock () const |
Get reference to the masterclock subsystem. More... | |
MonitorSystem (const std::string &systemName, long nSubsystems, long nMonitorPoints, long nSamples, int queueDepth=SubsystemFrameBuffer::kDefaultQueueDepth) | |
Constructor base subsystem configuration. More... | |
OpacityMonitorSubsystem & | opacityMonitor () const |
Get reference to the opacityMonitor subsystem. More... | |
OvroSubsystem & | ovro (int index) const |
Get reference to ovro antenna subsystem. More... | |
PhaseMonitorSubsystem & | phaseMonitor () const |
Get reference to the phase monitor subsystem. More... | |
ProjectDatabaseManagerSubsystem & | projectDatabaseManager () const |
Get reference to the projectdatabase manager subsystem. More... | |
virtual unsigned int | read () |
Reads oldest unread data from the IPQ into the local set of monitor points. More... | |
virtual bool | readNewest () |
Reads in the newest data from the IPQ into the local set of monitor points. More... | |
virtual bool | readNewestConditionalCopy () |
If new data is available it is copied from the queue into the monitor system. More... | |
virtual bool | readNewestIfStale () |
Reads in data from the IPQ into the local set of monitor points if data is stale, that is, !isCurrent(). More... | |
void | resetQueue () |
Moves read pointer beyond top of queue so a read will block until the next write. More... | |
void | resetTimes () |
Resets collator write time - call clearAllTimes to conform to name of similar routine in ::carma:monitor::MonitorSubsystem and allows for more times to be added. More... | |
void | setFinalWriteTime (double mjdTimestamp) |
Sets MJD when this system frame was actually read by the fault system. More... | |
void | setFinalWriteTime () |
void | setRawReadTime (double mjdTimestamp) |
Sets MJD when this system frame was actually read by the fault system. More... | |
void | setRawReadTime () |
SignalPathSubsystem & | signalPath () const |
Get reference to the signal path subsystem. More... | |
SlDataflowSubsystem & | slDataflow (const int index) const |
SldcSubsystem & | sldc () const |
Get reference to the spectral line downconverter subsystem. More... | |
SlPipelineSubsystem & | slPipeline () const |
Get reference to the spectral line pipeline subsystem. More... | |
SlRemapperSubsystem & | slRemapper (const int index) const |
SystemFrameBuffer & | systemFrameBuffer () const |
Get reference to the underlying storage. More... | |
SystemStatusSubsystem & | systemStatus () const |
Get reference to the system status subsystem. More... | |
SzaSubsystem & | sza (int index) const |
Get reference to sza antenna subsystem. More... | |
TestSubsystem & | test () const |
Get reference to the test subsystem. More... | |
virtual std::string | transportStatisticsToString (bool canonical=false) const |
Dumps transport statistics as a table, with write delays, and transport/write times printed out as doubles, with fixed precision. More... | |
VlbiSubsystem & | vlbi () const |
Get reference to the vlbi subsystem. More... | |
WbcBandSubsystem & | wbcBand (const int index) const |
Get reference to a wideband correlator band subsystem. More... | |
WbDataflowSubsystem & | wbDataflow (const int index) const |
WbdcSubsystem & | wbdc () const |
Get reference to wideband downconverter subsystem. More... | |
WbPipelineSubsystem & | wbPipeline () const |
Get reference to the wideband line pipeline subsystem. More... | |
WbRemapperSubsystem & | wbRemapper (const int index) const |
WeatherSubsystem & | weather () const |
Get reference to the weather subsystem. More... | |
virtual void | write () |
Write out the monitor point data values. More... | |
virtual | ~MonitorSystem () |
Destructor. More... | |
![]() | |
bool | isActive () |
Checks to see if this system is actively receiving data. More... | |
MonitorSystemContainer (const std::string &systemName) | |
Constructor base subsystem configuration. More... | |
virtual | ~MonitorSystemContainer () |
Destructor. More... | |
![]() | |
void | add (MonitorComponent &component) |
Add a subcomponent to this container A reference is kept to this subcomponent, so the caller is responsible for managing the lifecycle of the subcomponent; this container simply expects that it be available for access. More... | |
const Child & | getChild (int index) const |
Get reference to child monitor component by index. More... | |
::std::vector< Child > | getChildVec () const |
Get a vector of monitor components contained by this component. More... | |
MonitorComponent * | getComponentPtr (const ::std::string &name, bool caseSensitive) const |
Get a contained monitor component by hierarchical name The hierarchical name starts below this container and consist of dot (".") separated components. More... | |
MonitorPoint & | getFirstMonitorPoint () |
Recursively find the first monitor point in this container. More... | |
MonitorPoint & | getMonitorPoint (const std::string &name, bool caseSensitive) const |
Get a monitor point by name (hierarchical name OK). More... | |
MonitorPoint & | getMonitorPoint (tagIDType tagID) const |
Get a monitor point by tagID. More... | |
MonitorPoint * | getMonitorPointPtr (const std::string &name, bool caseSensitive) const |
MonitorPoint * | getMonitorPointPtr (tagIDType tagID) const |
int | getNumChildren () const |
Get the number of monitor components contained by this component. More... | |
virtual int | getNumContainerChildren () const |
Get the number of child monitor containers contained by this component. More... | |
virtual int | getNumContainerDescendants () const |
Get the number of child monitor containers contained by this component and it's children. More... | |
virtual int | getNumDescendants () const |
Get the total number of monitor components contained by this component and it's children. More... | |
int | getNumMonitorPoints (bool recurse=false) const |
Get the number of monitor points. More... | |
int | getNumMonitorPoints () |
Get the total number of monitor points in this container. More... | |
int | getNumSamples () |
Get the total number of samples in this container. More... | |
bool | hasAllData () const |
See if all MPs in this component and below have data samples. More... | |
virtual ::std::string | hierarchyToString (bool canonical=false, bool verbose=false, bool value=true, int sampleIndex=0, int indent=0, int levels=-1) const |
Dump this and all contained monitor components to a string. More... | |
virtual ::std::string | hierarchyToStringAverage (bool canonical=false, bool verbose=false, bool value=true, int indent=0, int levels=-1) const |
Dump this and all contained monitor components to a string. More... | |
virtual void | hierarchyToVector (::std::vector< ::std::string > &hierarchyList, bool canonical=false, bool verbose=false, int sampleIndex=0) const |
Dump this and all contained monitor component strings into a map hierarchy. More... | |
virtual std::string | leafToString (bool verbose=false, bool value=true, int sampleIndex=0) const |
Dump all leaf nodes below this component to a string. More... | |
MonitorContainer (const ::std::string &name) | |
Constructor. More... | |
virtual ::std::string | monitorPointTags (bool untagged=false) const |
Write list of monitor points and their tagIDs to a string, one monitor point per line. More... | |
virtual bool | operator== (const MonitorComponent &component) const |
Compares this monitor container for equality to the one passed. More... | |
void | setArchivePriority (const MonitorComponent::ARCHIVE_PRIORITY priority, bool onlyDEFAULT=true) |
Recursively set the archive priority of all monitor points below. More... | |
virtual void | setCanonicalName (const std::string &parents) |
Recursively set the canonical component name for this and all below. More... | |
virtual void | setMonitorPointAttributes () |
Set attributes of all monitor points held anywhere in the hierarchy within (and below) this container. More... | |
void | setNoData () const |
Recursively mark all data samples as INVALID_NO_DATA. More... | |
void | setPersistent (bool persistent) |
Set the persistent attribute for the value of a MonitorPoint, or in the case of a container for its descendants (recursively). More... | |
void | setValidity (MonitorPoint::VALIDITY validity) |
Recursively set validity for all samples of all monitor points below this container. More... | |
std::string | toString (bool canonicalName=false, bool verbose=false, bool value=true, int sampleIndex=0, int indent=0) const |
Write this monitor component to a string. More... | |
std::string | toStringAverage (bool canonicalName=false, bool verbose=false, bool value=true, int indent=0) const |
Write this monitor component to a string, using frame average values. More... | |
~MonitorContainer () | |
Destructor. More... | |
![]() | |
const std::string & | getCanonicalName () const |
Get the canonical component name. More... | |
virtual const std::string & | getDescription () const |
Get the verbose description of the monitor component. More... | |
virtual const std::string & | getLongName () const |
Get the long name of the monitor component. More... | |
virtual const std::string & | getName () const |
Get the component name (leaf part of canonical name). More... | |
virtual std::string | getPhysicalDeviceName () const |
Get the physical device name, if one exists. More... | |
std::string | getPhysicalDeviceString () const |
Get the physical device name, if one exists, enclosed in parentheses. More... | |
std::string | getPhysicalName () const |
Get the physical name, which is location.device.component or if there is no associated physical device it is just component name. More... | |
virtual const std::string & | getShortName () const |
Get the short name of the monitor component. More... | |
virtual bool | isMonitorPoint () const |
Identifies this component as a MonitorPoint or any derivative Should be over-ridden by the MonitorPoint class; others that don't derive from MP can use this default implementation. More... | |
virtual bool | isSubsystem () const |
Check if the component is a MonitorSubsystem. More... | |
MonitorComponent (const std::string &name) | |
Constructor. More... | |
bool | operator!= (const MonitorComponent &component) const |
Checks if components are not equal. More... | |
void | setDescription (const std::string &text) |
Set the verbose description of the monitor component. More... | |
void | setLongName (const std::string &name) |
Set the long name of the monitor component. More... | |
void | setName (const std::string &name) |
Set the leaf part of the canonical name of the monitor component. More... | |
void | setShortName (const std::string &name) |
Set the short name of the monitor component. More... | |
void | setShortName (const std::string &name, int index) |
Set the short name of the monitor component, with an index appended. More... | |
virtual | ~MonitorComponent () |
Destructor. More... | |
Additional Inherited Members | |
![]() | |
enum | ARCHIVE_PRIORITY { VITAL, USEFUL, NORMAL, DEBUG, VERBOSE, DEFAULT, DONTARCHIVE } |
Archiving priority. More... | |
![]() | |
static std::string | archivePriorityToString (MonitorComponent::ARCHIVE_PRIORITY priority) |
Get a string representation for an archive priority. More... | |
static std::string | convertAllLower (std::string name) |
Convert a name to all lower case. More... | |
![]() | |
CarmaMonitorSystem (std::string name, int queueDepth) | |
Full monitor system with all subsystems. More... | |
![]() | |
SubsystemFrame & | getChildSubsystemFrame (int index) const |
![]() | |
virtual void | setLocalMonitorPointAttributes () |
Set attributes of all monitor points held directly by this container. More... | |
![]() | |
static Child | findDescendant (const MonitorContainer &rootContainer, const ::std::string &name, bool caseSensitive) |
![]() | |
bool | debug_ |
![]() | |
std::ostream & | operator<< (std::ostream &os, const MonitorComponent &component) |

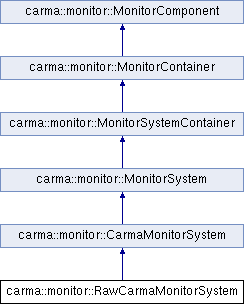

This is the full Carma monitor system before fault system processing and immediately following collation in the frameCollator.
Definition at line 791 of file MonitorSystem.h.
carma::monitor::RawCarmaMonitorSystem::RawCarmaMonitorSystem | ( | ) |
Full monitor system with all subsystems, before fault processing.
numSubsystems | total number of subsystems allocated |
numMonitorPoints | total number of monitor points allocated |
numSamples | total number of samples allocated |
